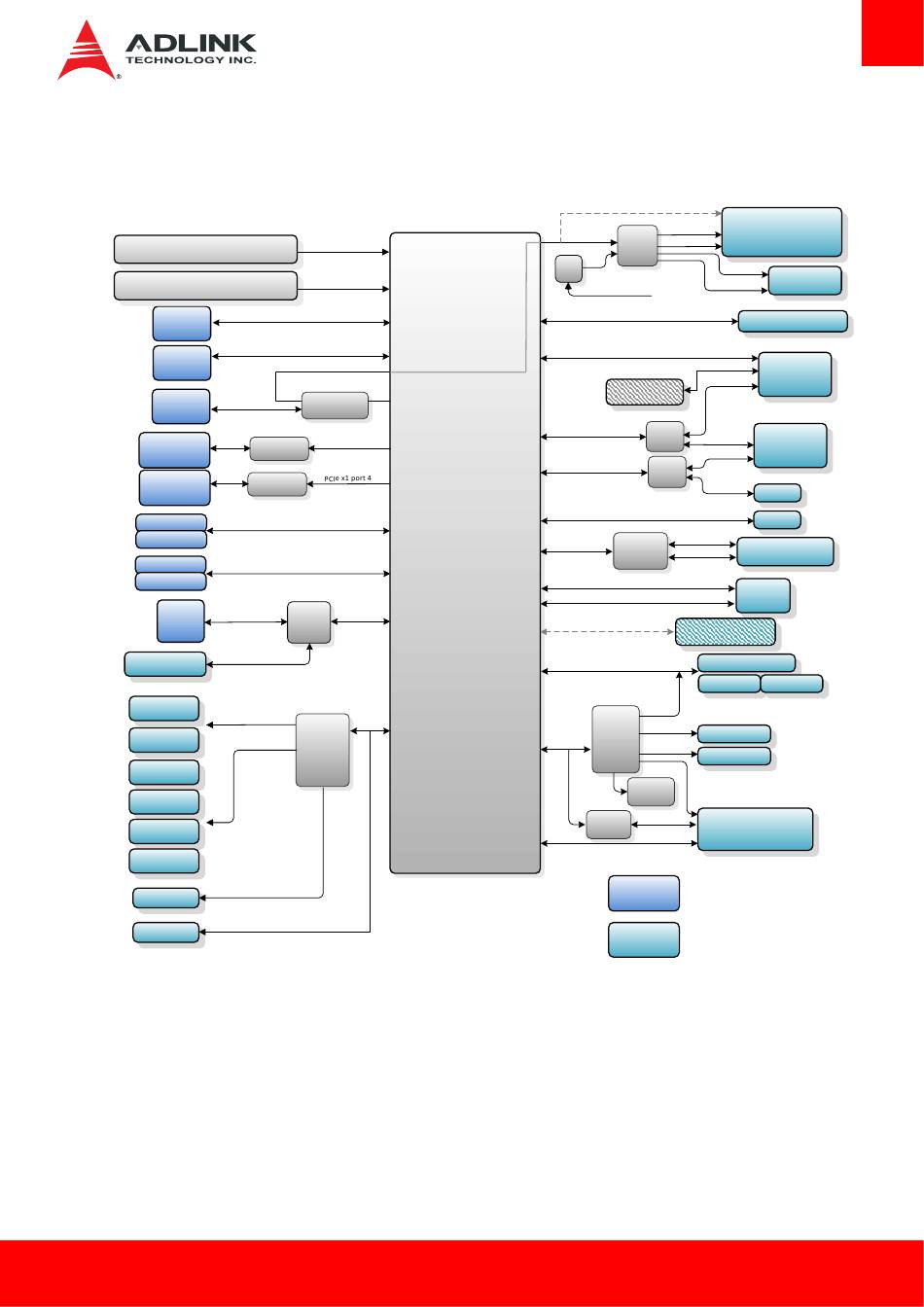

2.14. Functional Diagram

Horizontal SODIMM (Channel A)
DDR3L at 1600 (
non ECC)
Horizontal SODIMM (Channel B)
DDR3L at 1600 (
non ECC)
HDMI
DP
DP
RJ-45
10/100/1000
RJ-45
10/100/1000
USB 3.0
USB 3.0
USB 3.0
USB 3.0
Line-out
Mic-in
Audio Header
COM1
2 x RS-232/422/485
( 0/5/12V)
COM2
4x RS-232
COM3
COM4
COM5
COM6
PS/2 MS/KB
TPM Header
AmITX-BW-I
DDI1
DDI2
DP Switch
DDI3
(optional)
PCIe x1 port 3
GbE
Intel I211AT
GbE
Pentium®/Celeron®
Intel I211AT
Atom™ x5‐E8000
USB 3.0 port 0, 1
USB 3.0 port 2, 3
HD Audio
Codec
ALC886
LPC
COM1, 2
Super I/O
ITE IT8783
PS/2
LPC
eDP (optional)
eDP
4 lanes
PWM
switch
PWM from SEMA BMC
USB 2.0 port 0
Intel®
SATA 0 6Gb/s
N3000
USB 2.0 port 1
"Braswell"
SoC
SPI 0/1
SEMA
SMbus
TM4C123
GPIO
NXP PCA9535
System signals
LVDS (eDP optional )
DDC
Single/Dual Channel
eDP to
LVDS
LVDS Dat/Clk 18/24-bit
NXP
PTN3460IBS
LVDS control
LVDS AUX
Connector
Brightness
PCIe x1 port 1
PCIe x1 slot
PCIe x1 port 2
Mini PCIe
half size
SIM Card slot
USB 2.0 only
(optional)
USB
mSATA
USB 2.0 only
HSIC
full size
SATA
SATA
Switch
SATA
SATA
SATA 1 6Gb/s
SATA
USB 1.1/2.0
2x USB 2.0 Front
USB
USB 1.1/2.0
HUB
Panel Header
USB 2.0 port 2
USB 2.0
USB 2.0 port 3
Header
microSD Card slot
SD
(optional)
SPI Header
SPI0 SPI1 socket
CPU Fan
TI
Sys Fan
Sensor
MAX6642
Feature Connector
GPIO
Rear I/O
Internal I/O
