At this point we are close to getting to the PLC set-up, but there is one more step to handle

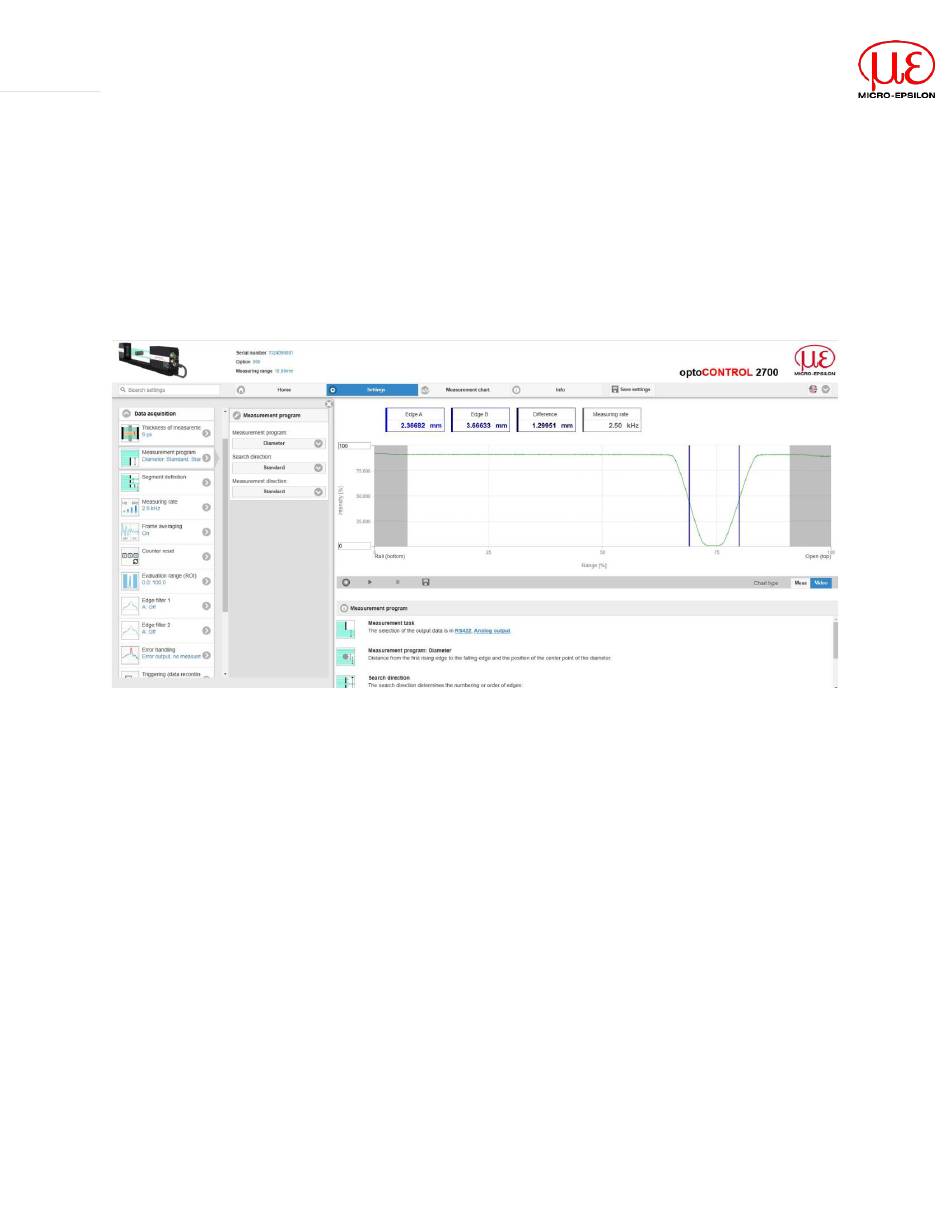

while we're plugged into the PC directly. Go to your web browser of choice, and type in the IP
address you just set the ODC2700 to. This will pull up the web page for the sensor that allows
us to set up the sensor settings.
Most settings here do not apply to the Ethernet/IP signal, but one very important setting is the
measuring program. The measuring program must match how we set up in the PLC, so it is
important to know at this point what program you need to use to get out the data you want.
It is best to set it up in the web page for general familiarity of data. For the purposes of this
example we will select Diameter as this is the information we want to get out of the sensor.
