Altronix NetWay Spectrum NetWay4EBT3 Series Installation Manual page 7

Fig. 2
Example
vLan ID 20
for ports 3-4
Any Ethernet port can be used for VLan Pass Thru
Factory Reset Option:
1. Power the unit down. Allow approximately 30 seconds
for the unit to power down completely.
2. Depress Master Reset button on Netway4EBTB while
reapplying power to the unit (Fig. 1a, pg. 4, Fig. 3 pg. 7).
Continue holding the button until the LEDs on board go
through the start up cycle, then release the button.
3. The unit returns to the original factory settings.
Netway4EBT3 Series Installation Guide

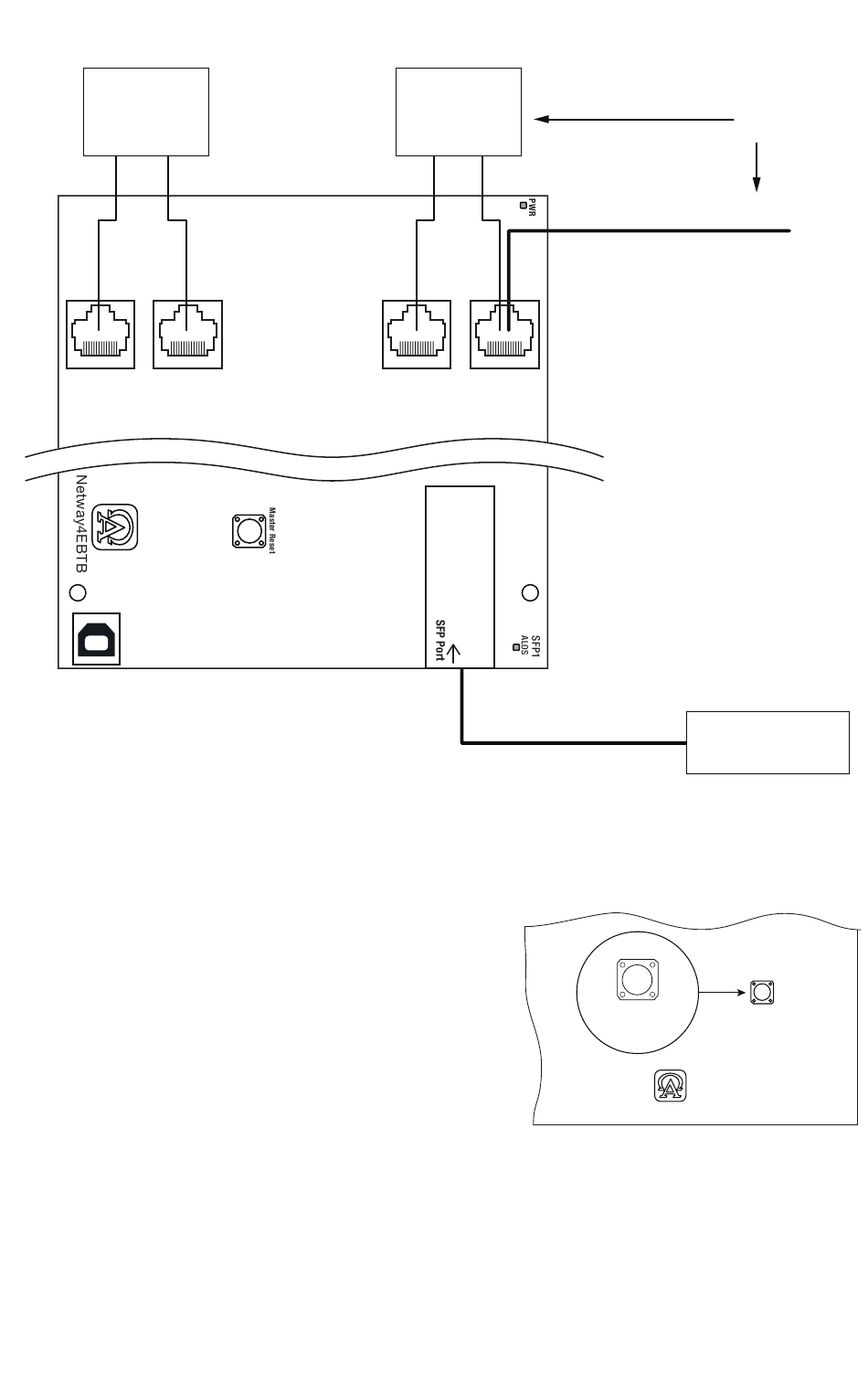

Typical VLan Setup:
Example
vLan ID 10
for ports 1-2
(i.e. VLan ID 10 and 20)
PASS THRU to next Switch
(i.e. VLan ID 0 and/or 20)
Trunk
Master Reset
Netway4EBT
OR
Fiber from
Host Switch
Fig. 3
Master Reset
Altronix Corp.
Brooklyn, NY US
www.altronix.com
- 7 -
