- Page 1 Power over the Ethernet Installation Guide NetWay8E - Eight (8) Port PoE Switch More than just power.™ DOC#: NETE Rev. 012017...
-
Page 2: Specifications

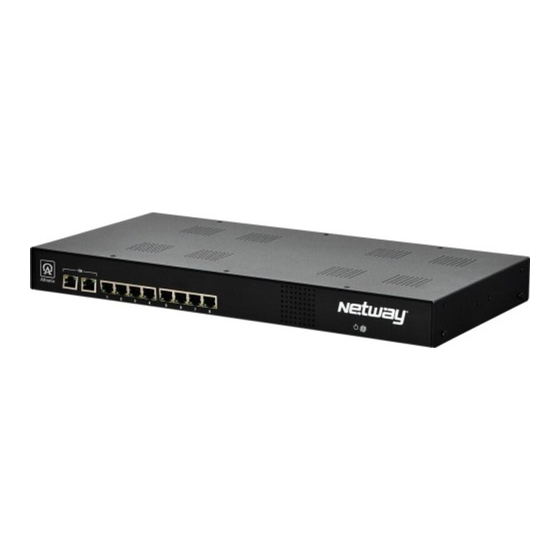

Overview: Altronix NetWay8E is an 8-port networked Managed Switch in a 1U rack enclosure. It provides PoE/PoE+ (up to 30W) power per port, and passes data at 10/100/1000 Mbps at distances up to 100m. Features also include an integral battery charger for applications requiring backup and embedded LINQ Technology to monitor, control, and report power and diagnostics from anywhere. - Page 3 Note: When batteries are not used, loss of AC will result in a loss of output voltage. Fig. 2 2a 1Gb uplink to NVR. NetWay8E - Front Panel 2b OUT 1-8: Structured cable to powered cameras/devices. 2c Input Power LED.
-
Page 4: Technical Specifications
Card Reader Camera Strike Transceiver Receiver PACE Long Range Ethernet Adapters Camera HID Solo Extends Ethernet approx. 500m NetWay8E - Front Panel 115/230VAC Stand-by Input LAN/WAN Batteries NetWay8E Technical Specifications: Parameter Description No. of Ports Eight (8) PoE+ Ports (10/100/1000 Mbps). -
Page 5: Factory Default Settings
Enter the default values here. Click on the button labeled Log In. 4. The status page of the NetWay8E will appear. Click on the tab labeled Network Settings. This will open the Network Setting screen. In this screen the MAC Address of the NetWay8E module will be found along with the Network Settings and Email Settings. - Page 6 1. Click the button labeled Heartbeat Timer Setting. 2. Select the desired time between heartbeat messaging in the Days, Hours, Minutes and Seconds in corresponding fields. 3. Click the button labeled Submit to save setting. www.altronix.com - 6 - NetWay8E...
- Page 7 Notes: www.altronix.com - 7 - NetWay8E...
-
Page 8: Rack Mount Installation
Four (4) rubber pads. behind sheetrock. Altronix is not responsible for any typographical errors. Product specifications are subject to change without notice. 140 58th Street, Brooklyn, New York 11220 USA | phone: 718-567-8181 | fax: 718-567-9056 website: www.altronix.com | e-mail: info@altronix.com | Lifetime Warranty | Made in U.S.A.
