WARNING
DI SCONNECT , LOCK OUT ,
AND TAG POW ER AT THE
OFF
POWER PANEL BEFORE
W I RI NG THE PUM P .
IQ CONTROL BOX (P/N 880-052-1)
C23
TB1
RS-485 CONNECTIONS
INSTALL IN CONDUIT
(MANIFOLDED UNITS
(FROM SUPPLY PANEL)
ISOTROL CONTROL BOX WIRING PRECAUTIONS
The Isotrol Control Box is intended to provide electrical isolation between the dispenser pump enable (Hook) signal
and the submersible turbine pump (STP) control relay. Other energized sources of power can still exist within the
dispenser even with this device. The neutral connection to the N terminal of TB1 and N terminal of TB2 must be
from the service panel and be a permanently connected, unswitched connection.
The N connection on TB1 and the eight N connections on TB2 may be spliced to a common neutral wire from the
service panel described above.
Make only one 'wire' connection on each N terminal on TB2.
The phase of L1 (TB1) must match the phase of the power supplying the ATG device to prevent cross phasing which
may damage the input on some ATG equipment.
GENERAL WIRING PRECAUTIONS
Wiring must be rated 90°C minimum.
Make ground connection in accordance with local codes.
ISOTROL CONTROL BOX (P/N 880-050-1)
UNSWITCHED
NEUTRAL TO TB2
CHANNEL 1
CHANNEL 2
CHANNEL 3
230 VOLT
CHANNEL 4
DISPENSER
CHANNEL 5
SIGNALS
CHANNEL 6
CHANNEL 7
CHANNEL 8
COM+ COM- SHLD D2 D1 M2 M1 L1
ONLY)
NEUTRAL

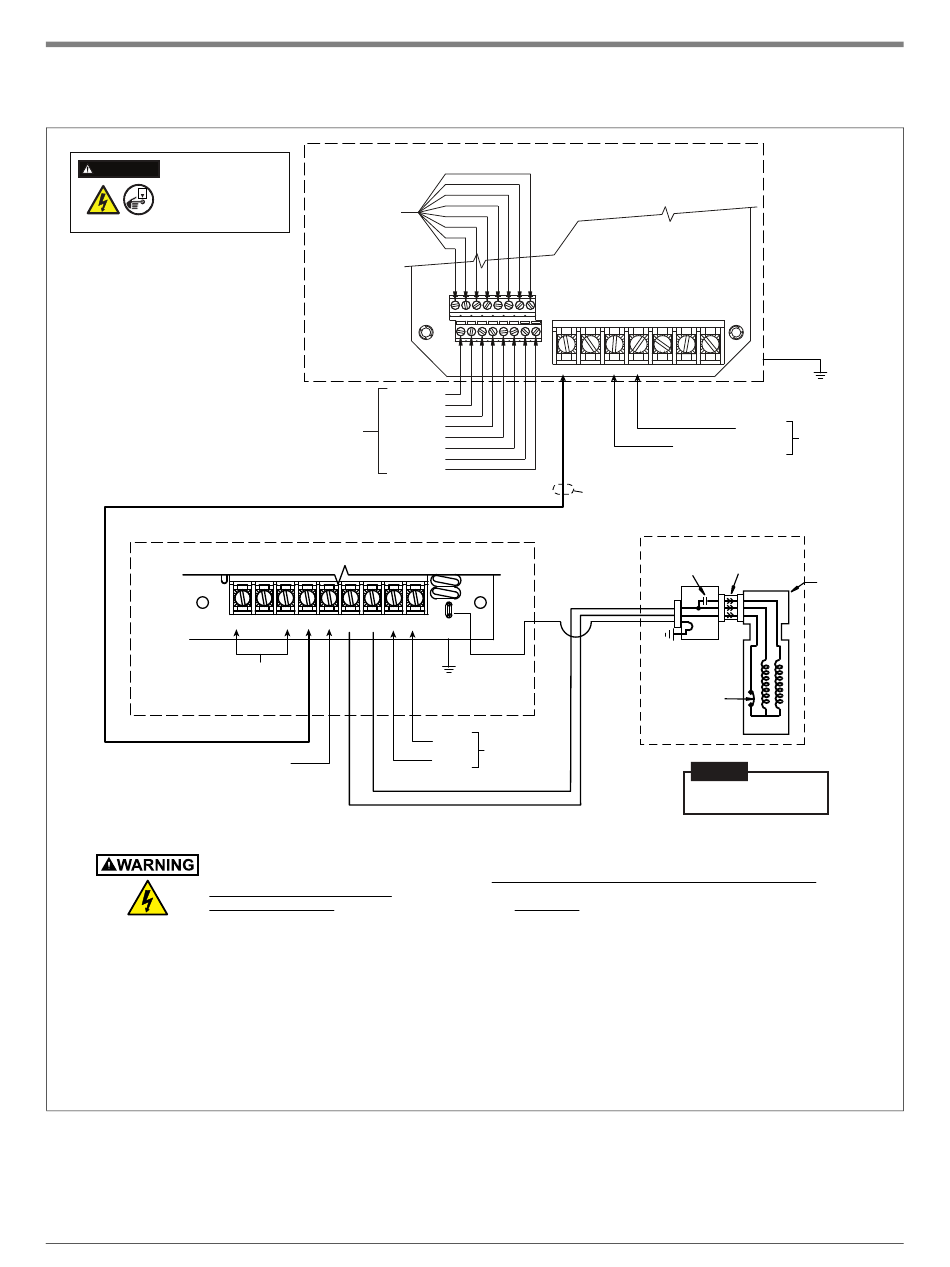

Figure 20. Isotrol To IQ System Wiring - 230 Volt Dispenser Signals
PHASE ON L1 MUST BE SAME AS DEVICE
NEUTRAL
TB1
TB2
HOT
1 2 3 4 5 6 7 8
DISPENSER INPUTS
ATG S
NOT
USED
230 VOLT ISOLATED OUTPUT
TO IQ CONTROL BOX
Z2
Z3
L2 GND
CONNECT TO
ELECTRICAL
GROUND
FROM SUPPLY
Neutral
PANEL
230 Volt
24
CONNECTED TO ATG TERMINAL
N L1 L2 M2 M1
NOT NOT NOT
USED USED USED
230 VOLT
UNSWITCHED NEUTRAL
Electrical
Continuous
interlock
duty capacitor
R
B
O
G
Junction box
in manifold
Internal
overload
protector
Motor
STP
NOTICE
Make gr ound connect i on i n
accor dance wi t h l ocal codes.
Conduit Box Wiring
CONNECT TO
ELECTRICAL GROUND
FROM
SUPPLY
PANEL
Extractable
packer
830-6
