4" Standard Pump Installation, Operation & Service Manual
Red jacket pumps are centrifugal type pumps and are not designed to pump product when
the level is below the bottom end of the UMP.
Dimensions For Pump Selection
Figure 4 shows the dimensions needed to ensure a correctly sized pump.
Distance between centerline of pump motor and centerline of bottom fill tube should be 3
feet (914 mm) minimum. Air locking of pump after product delivery may occur at distances
less than this.

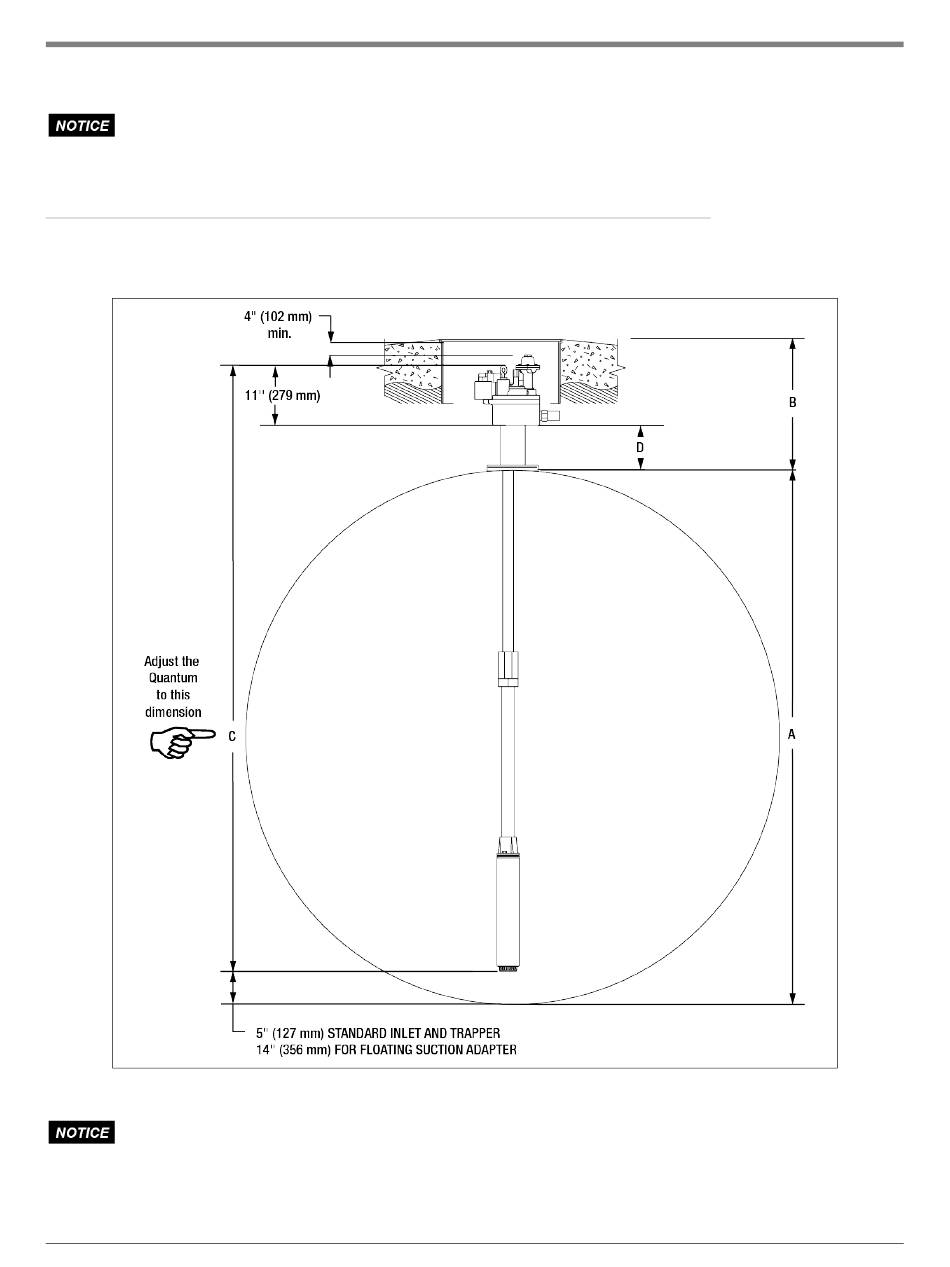

Figure 4. Measuring The Tank (See Table 2 For Adjustment Ranges).
7
Dimensions For Pump Selection
