Veeder-Root Red Jacket Quick-Set Installation, Operation And Service page 27

4" Standard Pump Installation, Operation & Service Manual
WARNING
OFF
LINE
STARTER
P
EXTERNAL
PILOT LIGHT
(240 VOLTS)
25 WATT MAX.
OPTIONAL
OTHER
DISPENSER
(MAX. TOTAL OF
6 DISPENSERS)
DISPENSER
S3
OPTIONAL SOLENOID VALVE
(76 VOLT AMPS. MAX.)

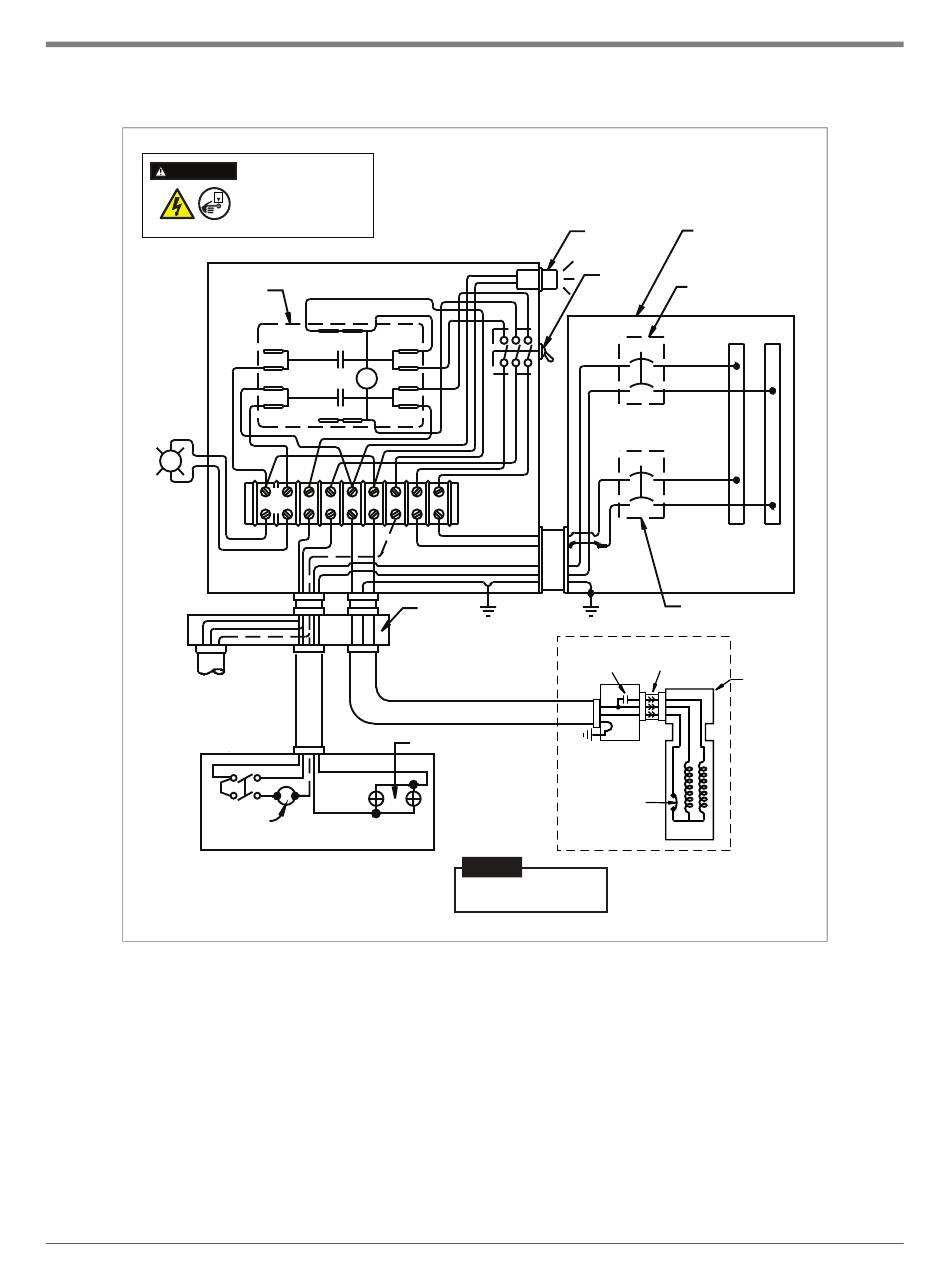

Figure 18. 230 VAC Remote Control Box With 230 VAC Coil - Model 880-042-5
DI SCONNECT , LOCK OUT ,
AND TAG POW ER AT THE
POWER PANEL BEFORE
W I RI NG THE PUM P .
EXT EXT
PILOT PILOT
S3 S2 M2 M1 S1 L1
LIGHT LIGHT
WIRING
TROUGH
DISPENSER LIGHTS
S2
S1
PILOT LIGHT
3P S.T.
TOGGLE
SWITCH
L2
Continuous
duty capacitor
B
G
Junction box
in manifold
Internal
overload
protector
STP
NOTICE
Make gr ound connect i on i n
accor dance wi t h l ocal codes.
22
Conduit Box Wiring
LOAD CENTER
220 OR 240 VOLT
1 PHASE, 2 WIRE
15A-2P SWITCHED
NEUTRAL BREAKER
PHASE NEUTRAL
15A-2P SWITCHED
NEUTRAL BREAKER
Electrical
interlock
Extractable
R
packer
O
Motor
830-4
