4" Standard Pump Installation, Operation & Service Manual Recommended Floating Suction Installation
Recommended Floating Suction Installation

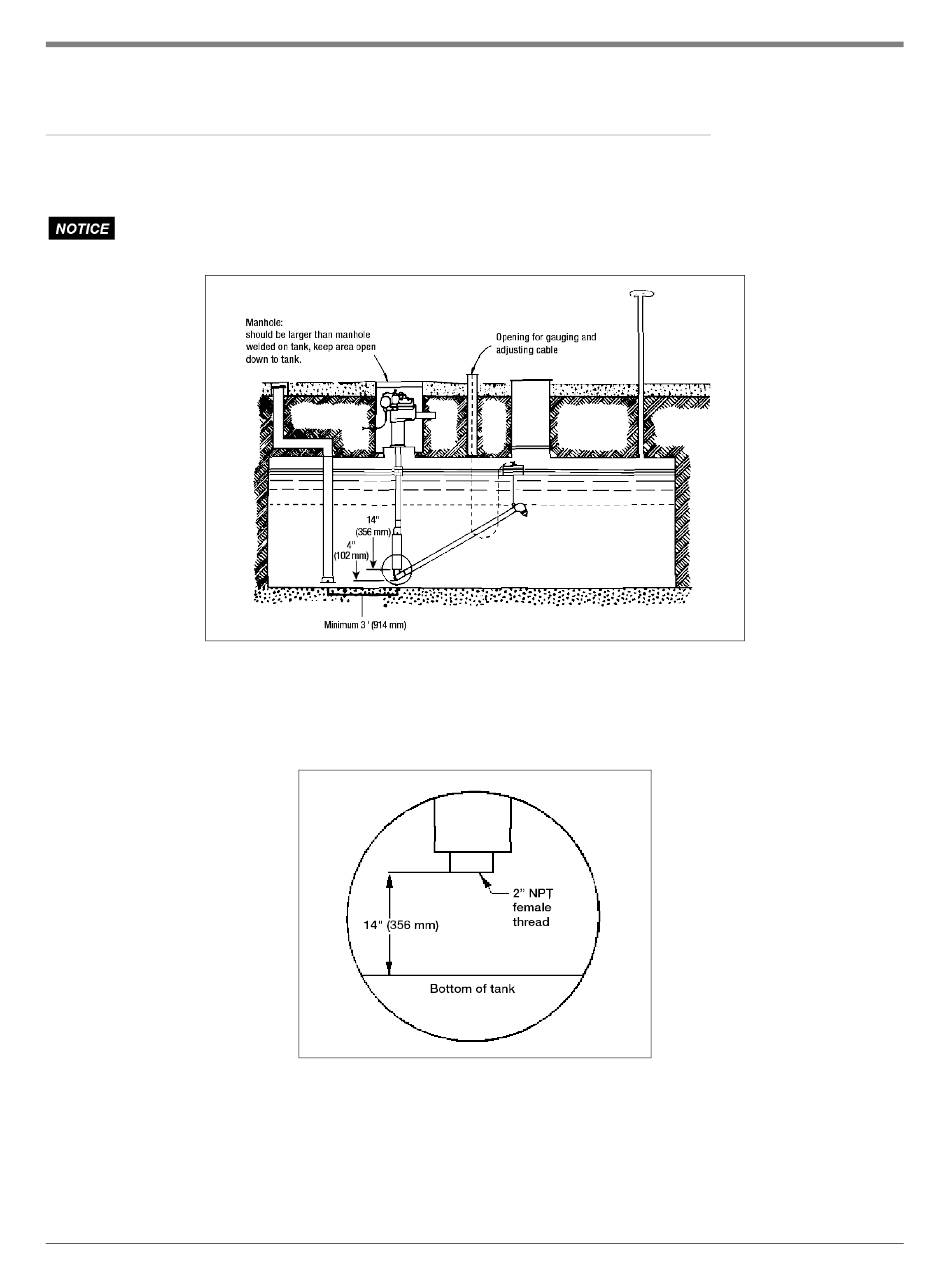

Figure 2 is an example of a floating suction installation. The floating suction arm can be mounted to pump previous
to installing in tank.
Veeder-Root supplies adapter only, not the apparatus.
Figure 2. Floating Suction Installation
Figure 3 is an enlarged view within the circle in the above figure.
Figure 3. Floating Suction Adapter
Easy service access is provided by unbolting manhole lid through which pump is mounted and removing entire
assembly. Use proper thread sealant and insert gasket between flanges of floating suction and pump. This
prevents hindrance to pump performance when product level is below this point.
6
