4" Standard Pump Installation, Operation & Service Manual
5. Install the UMP retaining bolts and lock washers (see Figure 7). Snug and then torque the bolts using a cross
pattern. Torque to 7 ft-lb. (11 N•m).
Do not use the bolts to pull the UMP into position. Use the cross pattern to snug and
torque bolts. Do not over torque the bolts.
Installing The Pump
When servicing equipment, use non-sparking tools and use caution when removing or installing
equipment to avoid generating a spark.
NOTES:
• Red Jacket petroleum pumps are designed to operate in a Class 1, Group D atmosphere.
• The manufacturer may recommend new specifications and installation instructions.
• The product temperature must not exceed 105°F (41°C) because the thermal overload protectors in the
submersible motors may trip.
1. Install the riser pipe into the 4-inch tank opening. Apply an adequate amount of fresh, UL classified for
petroleum, non-setting thread sealant. Tighten the riser pipe in the tank until watertight.
2. Measure the distance from the bottom of the tank to the top of the 4 inch riser pipe as shown in Figure 9.
Confirm the installed length of the pump maintains adequate clearance from the pump inlet to the bottom of
the tank (see Figure 4).
FOR FIXED LENGTH PUMPS, SKIP STEPS 3 - 6 AND THEN FOLLOW STEPS 7 - 10.

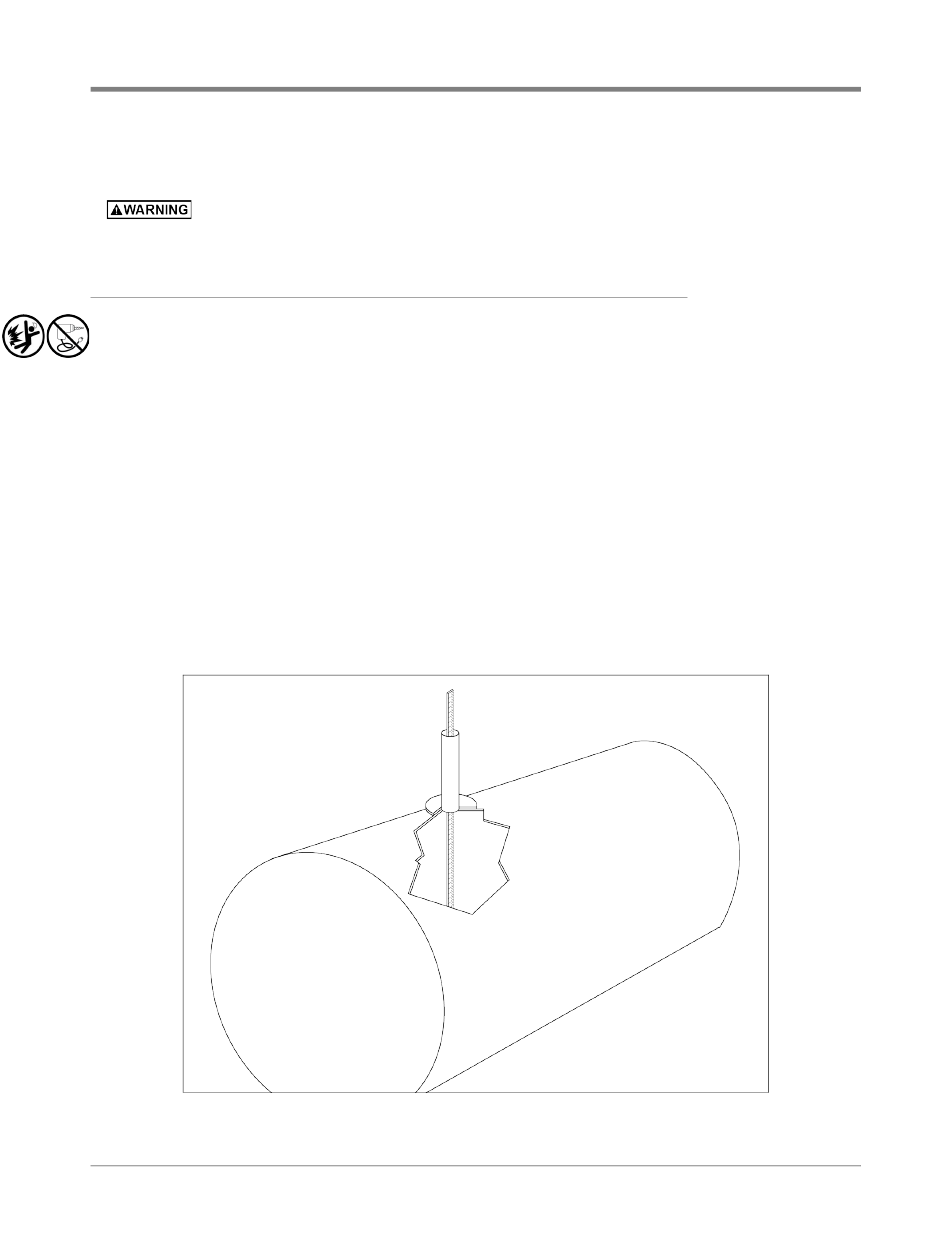

Figure 9. Measuring Tank
15
Installing The Pump
