Installation
Attaching The UMP
Table 6 lists the applicable UMPs for each packer/manifold.
Packer/Manifold
AGP33R1
P33R1
AGP75S1
P75S1
AGP150S1
P150S1
X3AGP150S1
X3P150S1
AGP75S3-3
P75S3-3
AGP150S3-3
The UMP is identified by the model number marked on the shell. The packer/manifold assembly with attached
piping is identified by the catalog number on the capacitor cover nameplate. The catalog number will be followed
by T1, T2, T3, or T4 on adjustable length pumps or a four-digit number indicating the original pump length in feet
and inches (a 9 ft. 6 inch [2896 mm] pump would have 0906 after the model number.
The attachment hardware kit to be used to connect the UMP to the Packer/Manifold assembly piping consists of
four Grade 5, 5/16 -18 x 1" socket head cap screws, four 5/16 spring lock washers and one discharge head
gasket. It is identified by the kit number (144-328-4) marked on the bag (see Figure 6).
Suggested tools (non-sparking) include a 3/4'' wrench, pipe wrench, 1/4" allen wrench, 9/16"
wrench, screw driver, wire cutter and wire stripper.
Table 6. Applicable UMPs for 4" Standard Packer/Manifolds
UMP
AGUMP33R1
UMP33R1
AGUMP75S1
UMP75S1
AGUMP150S1
UMP150S1
X3AGUMP150S1
X3UMP150S1
AGUMP75S3-3
UMP75S3-3
AGUMP150S3-3

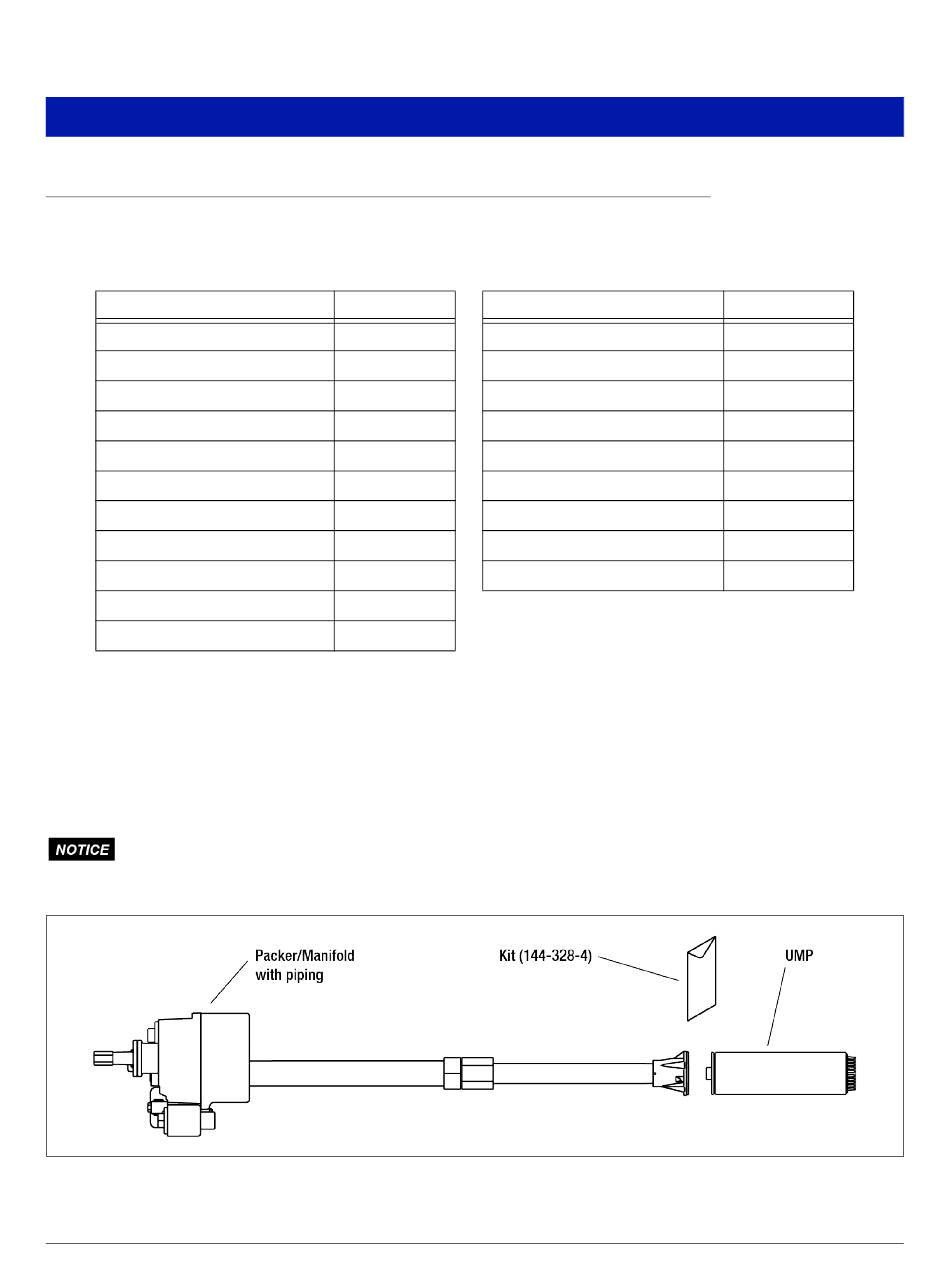

Figure 6. Packer/Manifold With Piping Attaching To UMP
Packer/Manifold
P150S3-3
X4AGP150S3
X4P150S3
AGP75S17-3
P75S17-3
AGP150S17-3
P150S17-3
X4AGP150S17
X4P150S17
13
UMP
UMP150S3-3
X4AGUMP150S3
X4UMP150S3
AGUMP75S17-3
UMP75S17-3
AGUMP15017-3
UMP15017-3
X4AGUMP150S17
X4UMP150S17
