T R A C E R 2 7 9 P R O

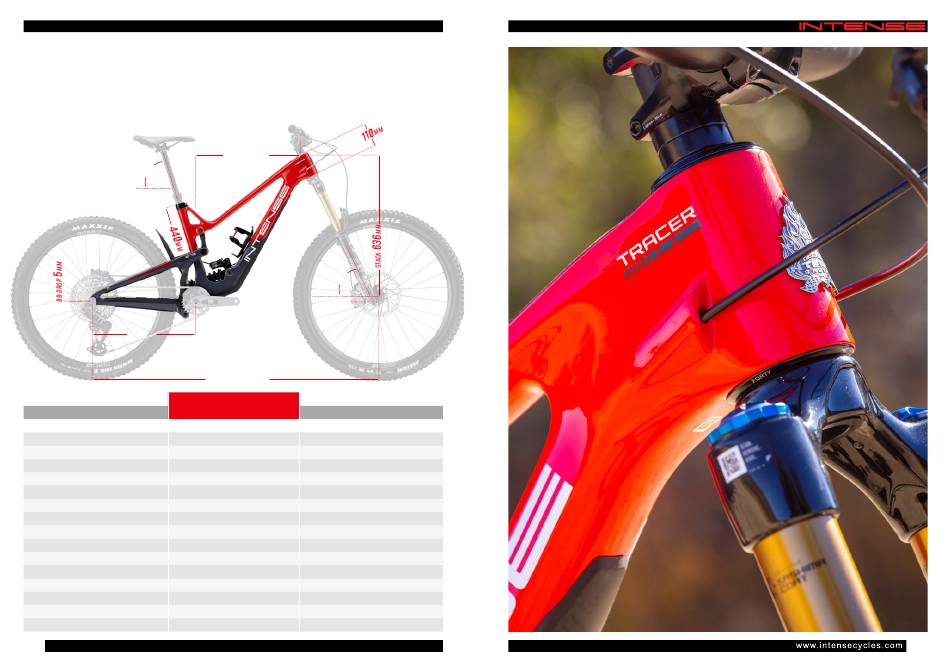

GEOMETRY
CHARTS
SIZE LARGE (HI) SHOWN
77.9º
437
MM
HIGH POSITION
SM MD LG XL
425mm 455mm 480mm 505mm
64.5° 64.5° 64.5° 64.5° HEADTUBE ANGLE
78° 78° 78° 78° SEATTUBE ANGLE (EFFECTIVE)
73° 73° 73° 73° SEATTUBE ANGLE (ACTUAL)
1193mm 1228mm 1257mm 1286mm
437mm 437mm 437mm 437mm CHAINSTAY LENGTH
756mm 791mm 820mm 849mm
349mm 349mm 349mm 349mm
618mm 627mm 636mm 645mm
557mm 589mm 617mm 645mm TOPTUBE LENGTH
90mm 100mm 110mm 120mm HEADTUBE LENGTH
25mm 25mm 25mm 25mm BB DROP FRONT WHEEL
5mm 5mm 5mm 5mm BB DROP REAR WHEEL
385mm 418mm 440mm 465mm SEATTUBE LENGTH
200mm 260mm 260mm 280mm MAX SEATPOST DEPTH
50
480
REACH MM
64.5º
1257
WHEELBASE MM
GEOMETRY
LOW POSITION
SIZE SM MD LG
REACH 420mm 450mm 475mm
64° 64° 64°
77.5° 77.5° 77.5°
72.5° 72.5° 72.5°
WHEELBASE 1195mm 1229mm 1258mm 1288mm
438mm 438mm 438mm
FRONT CENTER 756mm 791mm 820mm
BB HEIGHT 342mm 342mm 342mm
STACK 618mm 631mm 640mm
557mm 591mm 619mm
90mm 100mm 110mm
32mm 32mm 32mm
12mm 12mm 12mm
385mm 418mm 440mm
200mm 260mm 260mm
XL
500mm
64°
77.5°
72.5°
438mm
849mm
342mm
650mm
647mm
120mm
32mm
12mm
465mm
280mm
