A
C
PULL THE
CAGE DOWN
IN THIS
DIRECTION
14
B
D
CAGE
LOCK
S T E P 3
INSTALL REAR
DERAILLEUR

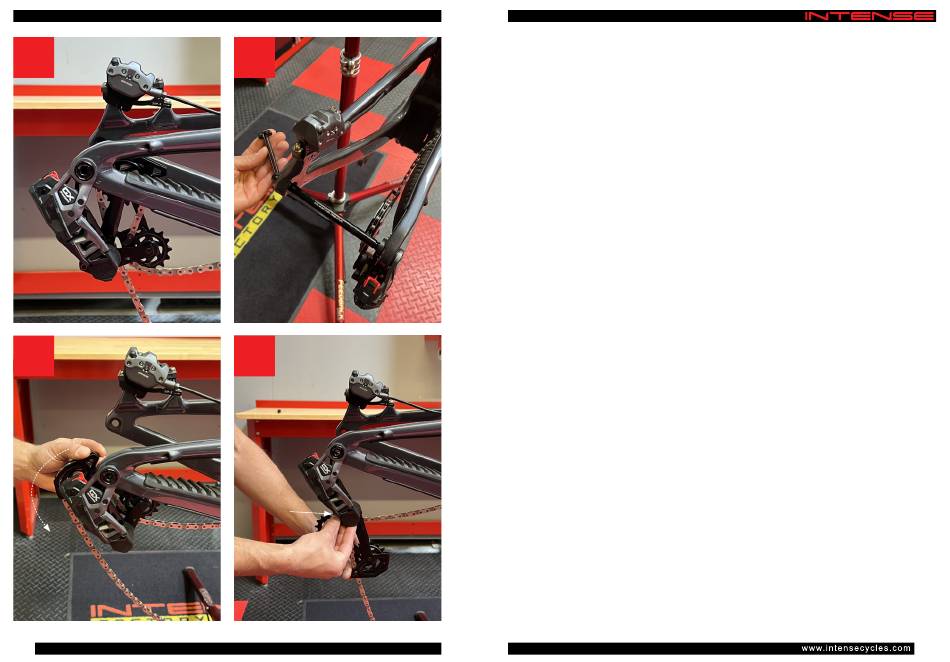

Move to the rear of the bike and cut off any zip-ties
or packaging from the rear derailleur and chain (A).
In order to position the derailluer cage in the correct
orientation follow the steps below.
The rear axle features an integrated pull-out lever,
simply pull this out, unscrew and remove the rear
axle (B).
Once the rear axle is removed rotate the derailluer
cage rearward/ counterclock wise (C). There will
be some resistance from the spring so be careful it
doesn't spring back into position. When it won't go
any further forward, and in a near vertical position,
press the small button (D) with a red circle printed on
it. This is the 'Cage Lock'.
While holding the lock button, gently release the
derailleur cage. The derailleur should now be locked
in position, which will make it easier for you to install
the rear wheel.
15
