Intense TRACER 279 PRO Manual page 22

I J
G E O M E T R Y
FLIP CHIP...
CONTINUED

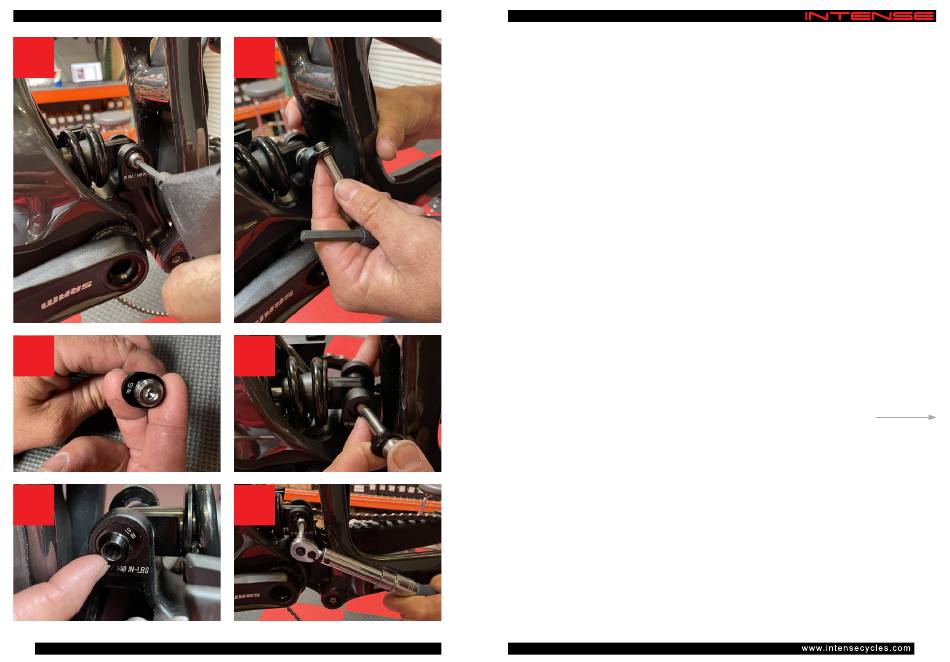

STEP 06
With a 5mm Allen key from the left (non-drive side)
side loosen the Rear Shock Bolt (I). Once undone
remove the Rear Shock Bolt by sliding it out (J).
STEP 07
Remove your Flip Chips on both sides and flip
them (K) around so that they are in the LO setting.
Whichever direction you can read the "LO" or "HI"
setting is the setting the Flip Chip is in (L). Put a
small amount of grease around the Flip Chip, this will
help hold it in place.
STEP 08
Slide the Shock Bolt back in from the left (non-drive
K M
side). Make sure the bolt is lined up with the eyelet
in the shock. Use your finger to hold in the drive-side
Flip Chip, making sure that it doesn't pop out as you
slide the shock bolt through (M). Using a 5mm Allen
key tighten to 16Nm (N).
L N
