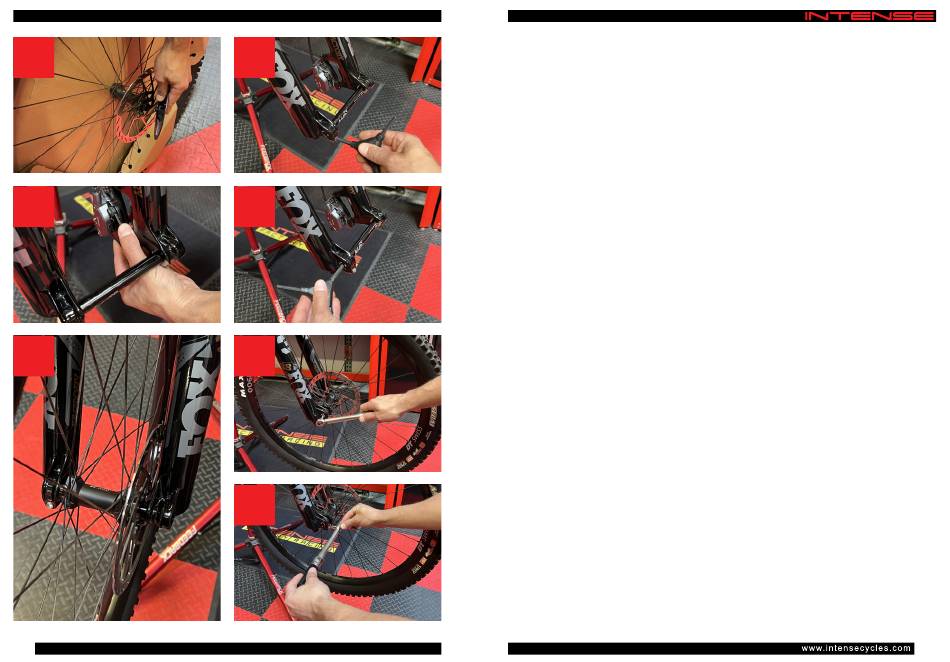

S T E P 5

INSTALL FRONT WHEEL

Remove all packaging from the front wheel
sure the hub end caps are still in the correct place and
that they haven't been pulled off by accident. If they
do come off, just press them back into position. Then
remove the brake pad spacer (B). At this stage be
careful not to pull the front brake lever until the wheel
has been installed. Do not touch the brake rotors with
your hands or gloves as this may contaminate them.
Before removing the axle, loosen the pinch bolt using a
6mm Allen key (C) using the same 6mm Allen proceed
to removing the axle (D). Position the wheel so that
the rotor fits into the brake caliper body and that the
hub body slots into the grooves on the fork (E). When
everything is in the correct place reinsert the front
wheel axle, start off by tightening the axle using the
6mm Allen Key and then finish by torquing the axle to
9Nm (F). Once the Axle is torqued to spec, torque the
pinch bolt to 5Nm(G).
(A) making
