4-18
Field Service Guidelines
3.
Remove the screw securing the I/O board to the bottom base unit.
4.
Lift the I/O board up and out of the base unit.
ILLUSTRATED PARTS BREAKDOWN
The next section contains the NEC part numbers and illustrated parts breakdown (IPB) fig-
ure for the NEC Versa. It shows the system exploded view diagram, or IPB. Table 4-2 lists
field-replaceable parts and corresponding part numbers.
Review the entire exploded diagram to see how each part is connected or assembled. Try to
sub-divide the entire diagram paying particular attention to the LCD Assembly, Top Unit
Cover Assembly, and the Base Unit Assembly.

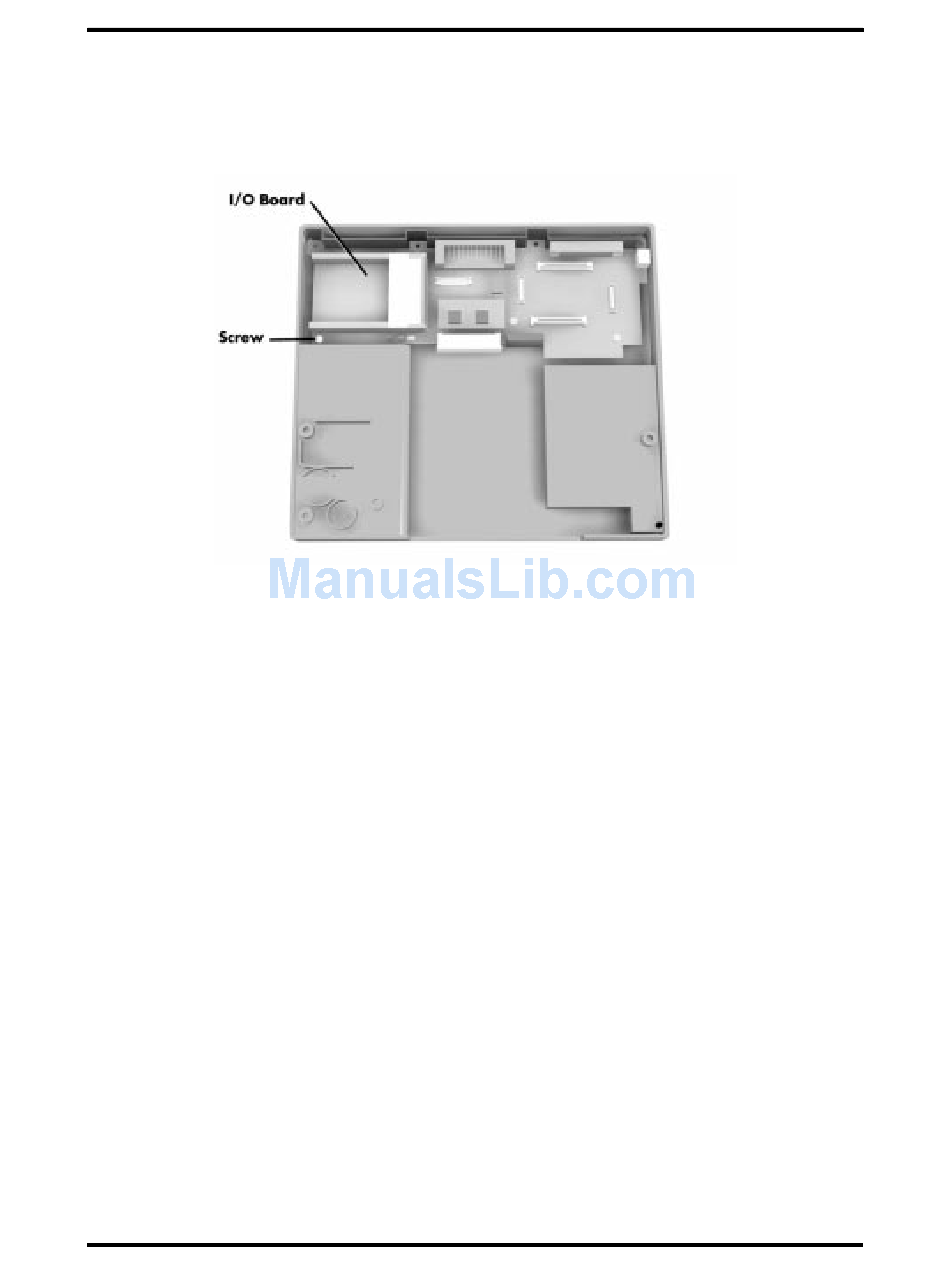

Figure 4-14 Removing the I/O Board
