Appendix A
Connector Locations and
Pin Assignments
Figure A-1 and Table A-1 show CPU board connectors. The remaining tables provide pin
assignments for additional system connectors.

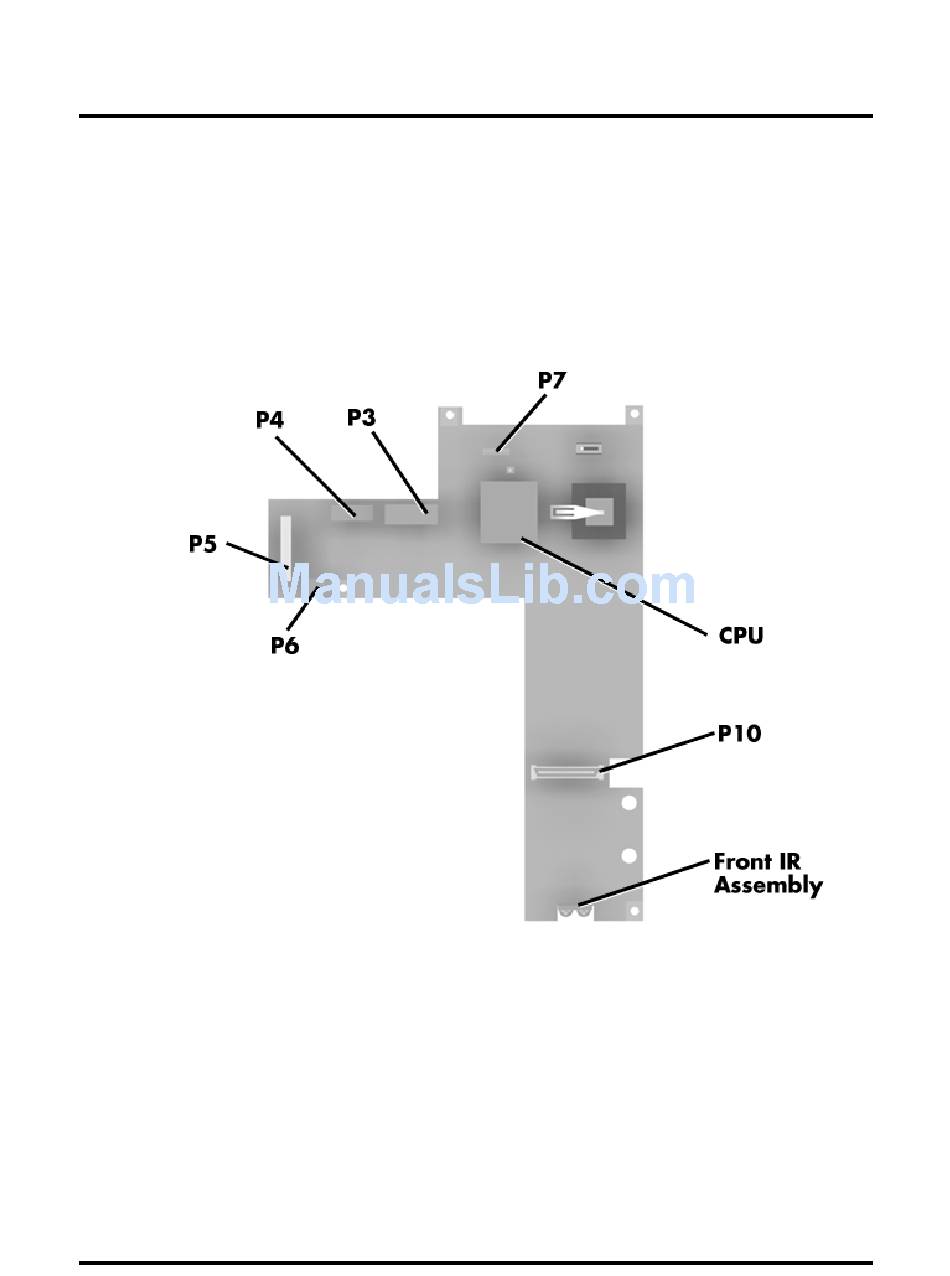

Figure A-1 CPU Board Layout
