3.
Disconnect the two LCD cables from connectors P4 on the I/O board and the
connector on the AMP board.

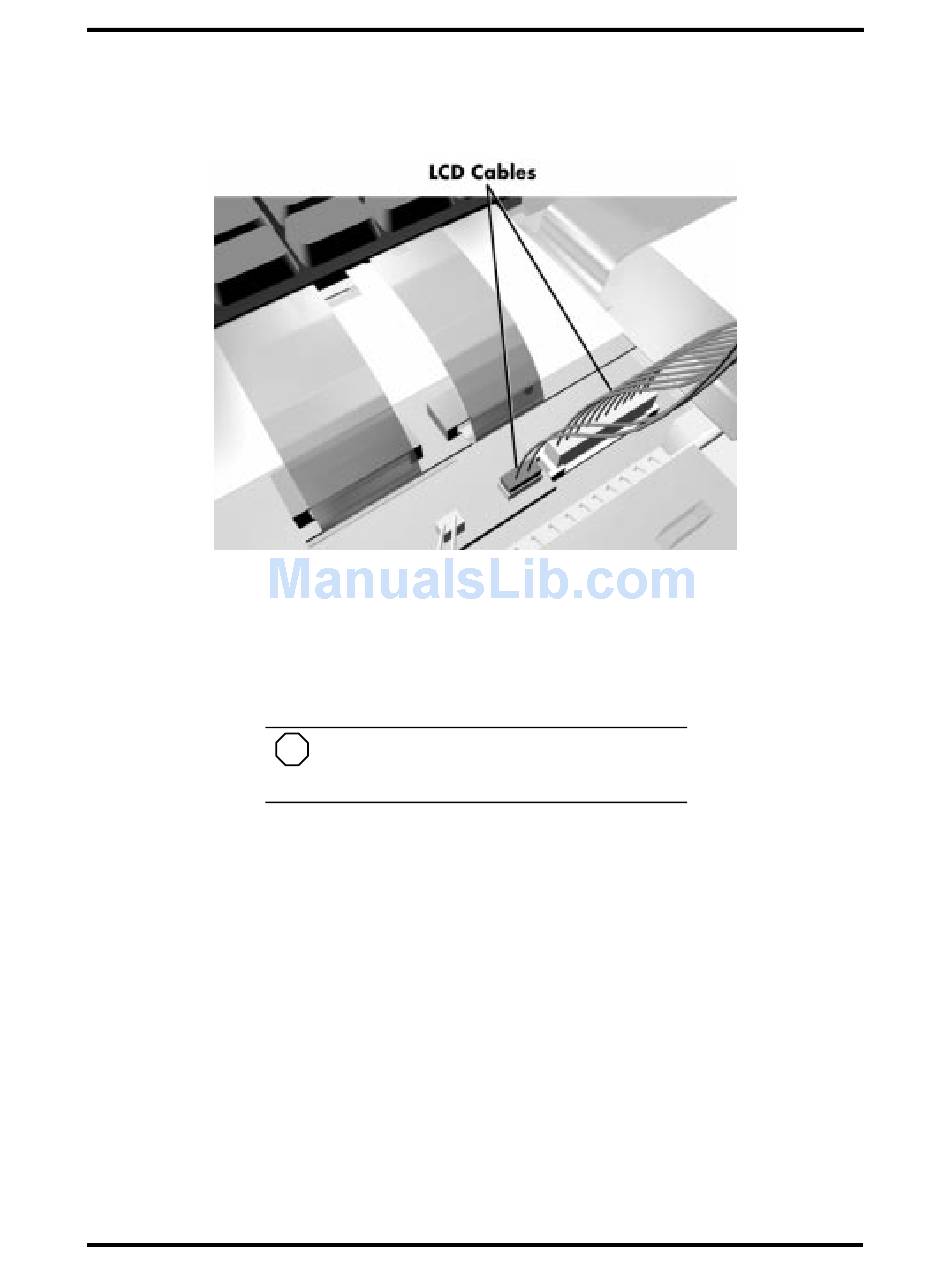

Figure 4-8 Disconnecting the LCD Connectors
Lift the top cover and LCD up and off the base unit assembly.
4.
NOTE
you don't damage the plastic.
Remove the top cover carefully, so that
Field Service Guidelines
4-11
