Audio Board
The audio board (G8YZK) provides the NEC Versa system with its audio capabilities via
line-in jack, and headphone/microphone jacks. It is situated on top of the CPU board. The
audio board integrates the following features:
T
ESS Technology Plug and Play support
ES1869S
Integrated Music Synthesis, ESFM™ and Stereo Digital to Analog Converter
(DAC) FM Synthesizer
16 bit Stereo with ESFM
4.0KHz to 44.1KHz Sampling Rate
Sound Blaster Pro compatible
7 Channel Mixer
Integrated Spatializer® 3D stereo sound.

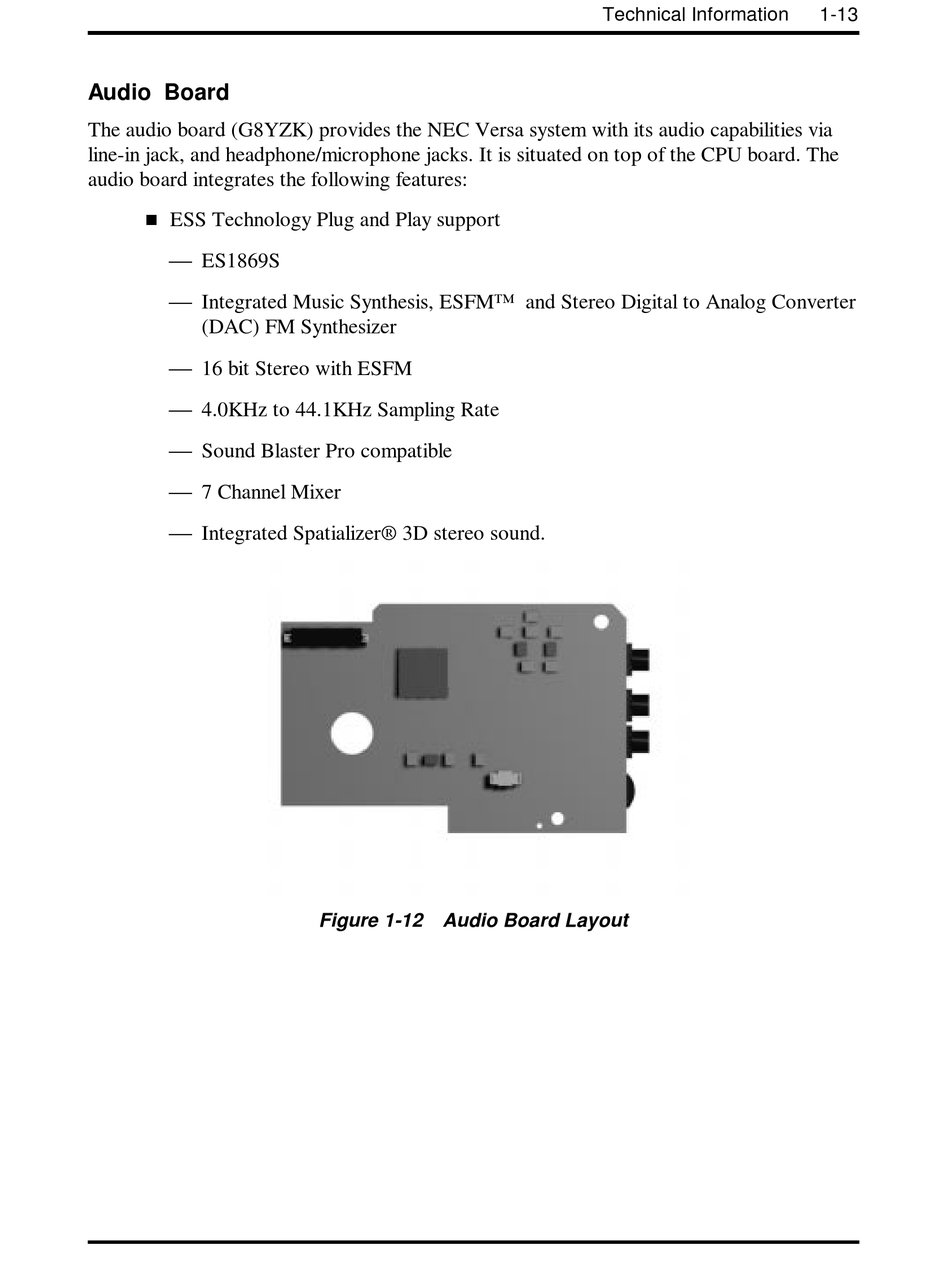

Figure 1-12 Audio Board Layout
