AC Power Port — Use the power jack to attach the NEC Versa to a DC power
source, such as the AC adapter or the optional DC car adapter.
HARDWARE OVERVIEW—LEFT SIDE
Review the following section for a description of the hardware on the left side of the NEC
Versa.

PC Card Slots

The PC card slot compartment houses two Type II devices, or one Type III device. For
Type III cards, insert the PC card into the lower slot. Insert the card with the pin sockets
facing towards the drive and the label facing up. To remove the PC card, push on the eject
button to release the pin connections and slowly pull out the card.

Battery Bay Cover Release

The battery compartment houses the rechargeable Lithium Ion (Li-Ion) battery pack. The
battery pack instantly start to charge whenever you connect the AC adapter to the note-
book. It is very important to always have the battery installed in the notebook to insure that
it is continuously charged. If the battery pack is uninstalled for a long period of time, the
battery cells are drained, causing the battery pack to deteriorate.
!
CAUTION
Always keep the fan vents clear to allow proper
system cooling.

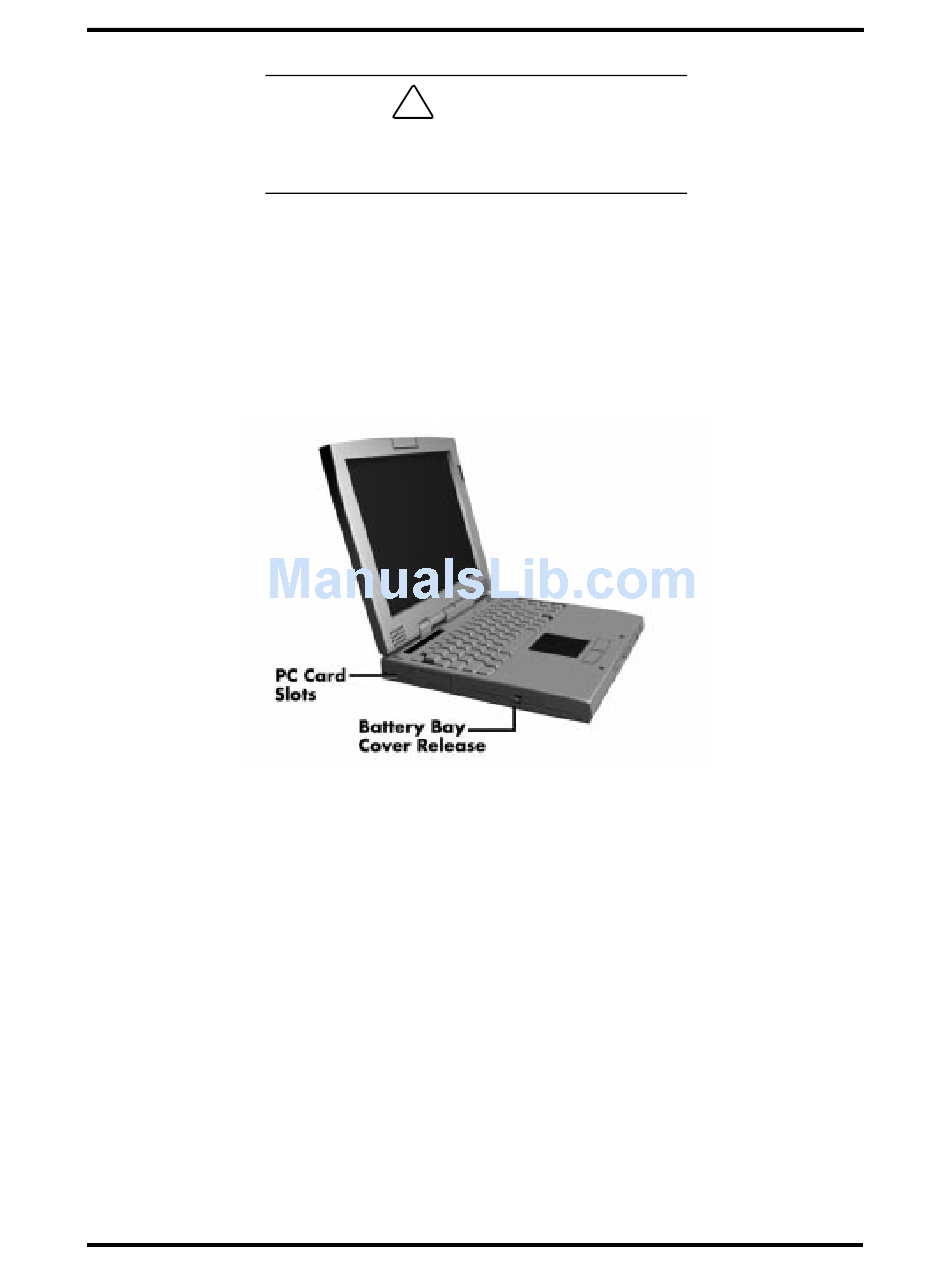

Figure 1-9 Left Side Features
Technical Information 1-9
