Remote control (CI-V) information
D Command formats

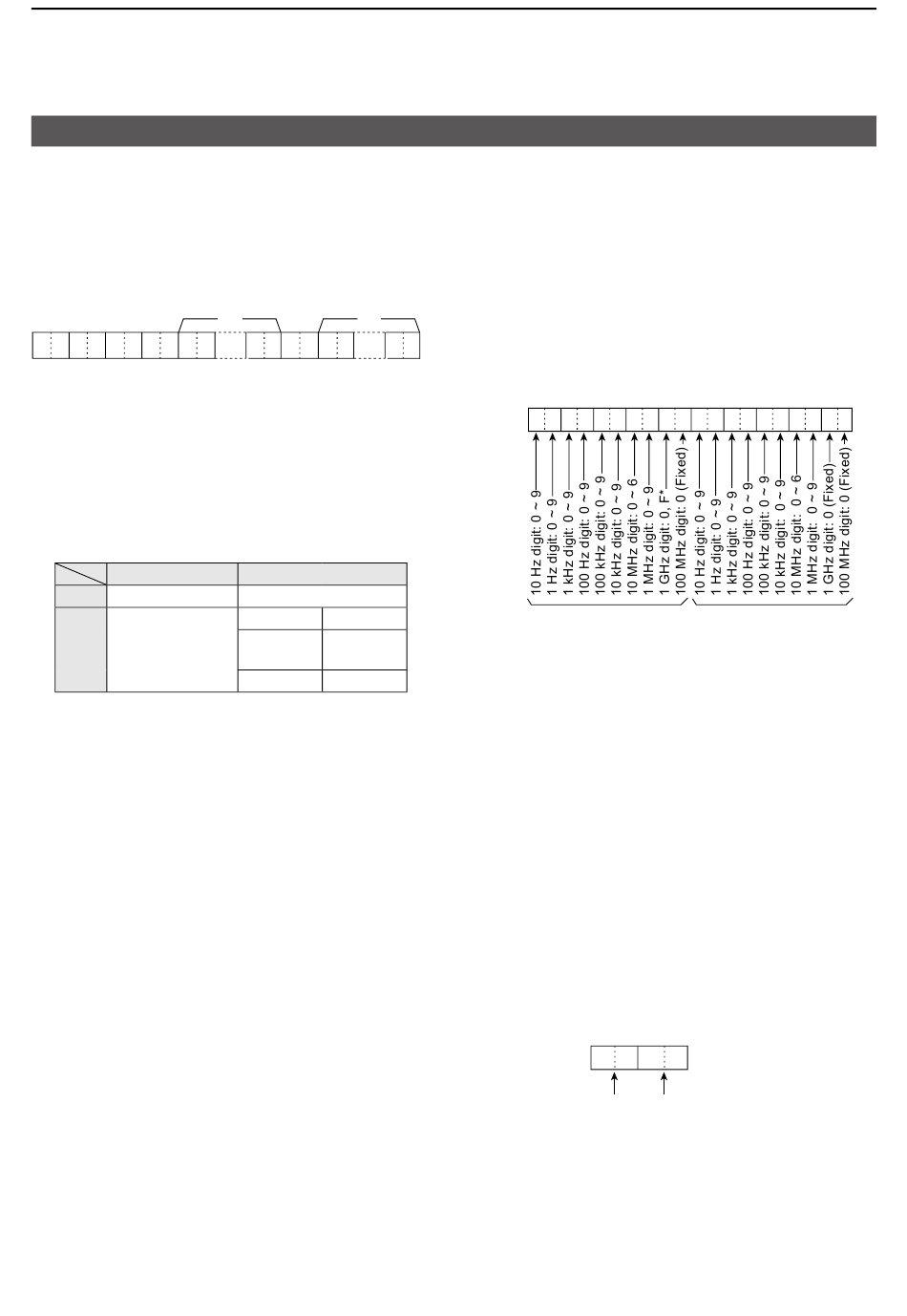

• Scope waveform data
Command: 27 00
Outputs the waveform data to the controller (PC)�
1 2 3 4
X X X X X X X X X X
1: Main or Sub scope data
• 00=Main scope, 01=Sub scope
2: Order of division data (Current): 01~15
3: Division number (Maximum): 01(LAN), 15(USB)
When data is sent to the controller (PC) using the
RF deck's [LAN] port, all data is sent together�
However, when the data is sent through the [USB B]
port on the controller's rear panel, the data is divided
by 15 and sent in sequential order�
Division number
01
LAN
15
USB
The 1st data sends only the wave information
(1 ~ 6) without the waveform data (7)� The
2nd or later data sends the Main or Sub scope
data (1), the order of division data (Current) (2),
the division number (Maximum) (3), and the
waveform data (7)�
4: Spectrum scope mode data:
• 00 = Center mode scope
• 01 = Fixed mode scope
• 02 = SCROLL-C mode scope
• 03 = SCROLL-F mode scope
5 6 7
...... X X X X X X ...... X X
Data length
704
1st data 15
2nd or
53
later data
15th data 42
5: Waveform information:
The waveform information differs, depending on
the Spectrum scope mode�
• In the Center mode:
Center frequency and span are sent�
See page 16 for Operating frequency data, and
page 24 for the Scope span settings (2 ~ 6)�
• In the Fixed, SCROLL-C, and SCROLL-F modes:
Lower edge and higher edge frequencies are sent�
X X X X X X X X X 0 X X X X X X X X 0 0
Lower edge
L "F" means that the Lower edge frequency is a
negative value�
6: Out of range information:
• 00 = In range
• 01 = Out of range
L If the scope data is out of range, the waveform data
(7) is omitted�
7: Waveform data:
The transceiver outputs the drawn waveform data�
The data range or data length of the waveform
data is judged by the controller (PC)� (The data
range is basically the same as the display size of
the scope on the controller (PC)�)
• Data range: 00 ~ C8 (0 ~ 200)
• Data length: 689
• Spectrum scope mode settings
Command: 27 14
X X X X
00=MAIN
01=SUB
23
Higher edge
00=Center mode
01=Fixed mode
02=SCROLL-C mode
03=SCROLL-F mode
