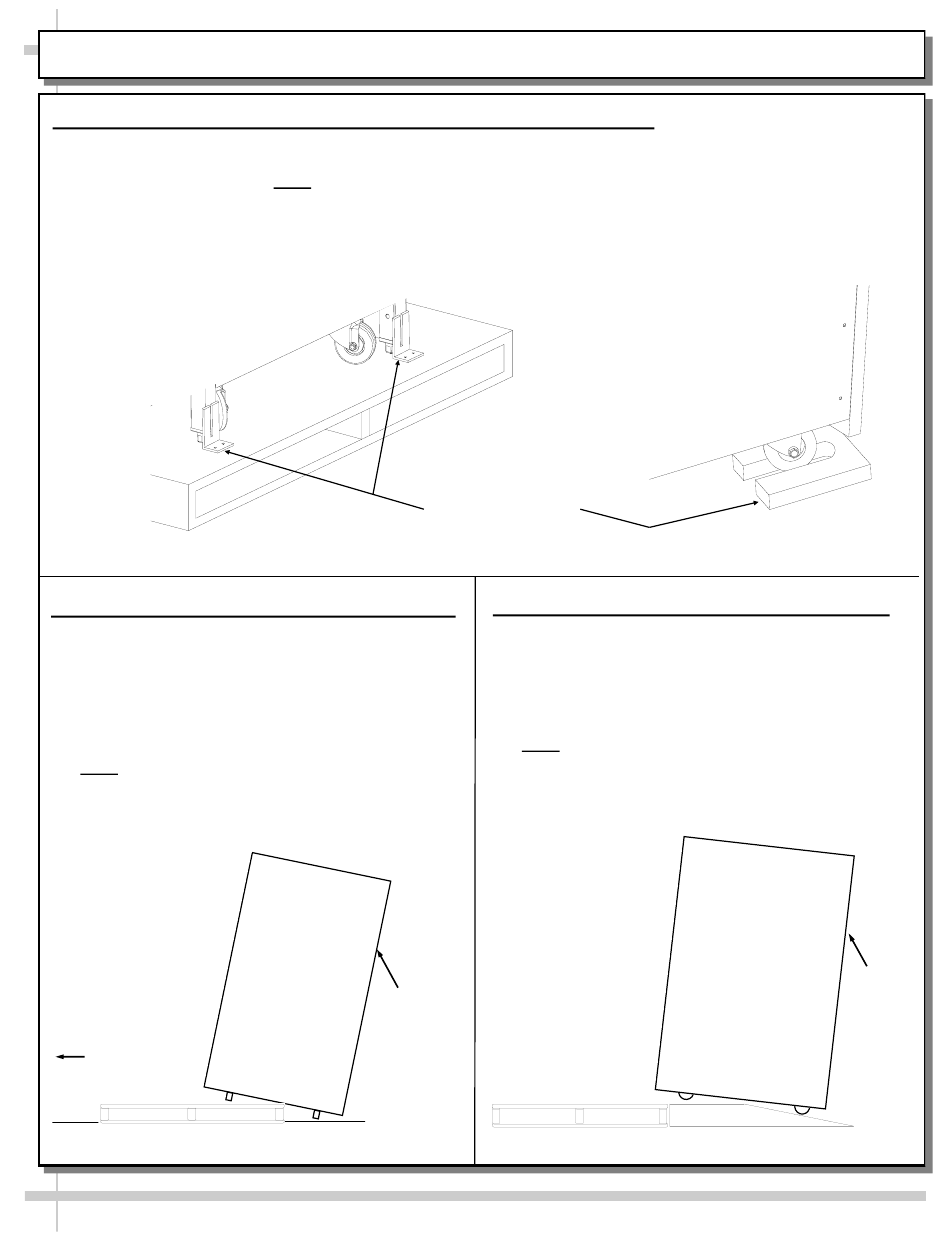

CASE REMOVAL FROM SKID (LEVELERS OR CASTERS)
1. Removing Case Shipping Brackets That Are Attached To Skid
• Remove screws holding Case Shipping Brackets to skid.
• Remove Case Shipping Brackets from Skid.
• See illustrations below. Note: Shipping Brackets will vary in size, shape, material and location
depending upon case type and model.
2. Remove Case (With Levelers) From Skid
• To prevent damage, support case while sliding
it toward edge of skid.
• When case is at edge of skid, carefully lower to
floor (so two levelers rest on floor).
• Carefully slide skid out from under case.
• After removal of case from skid, place into
position.
• Note:Illustration below reflects general outline
of sample case and does not reflect any
particular model or options).
Carefully
Slide Skid
Out From
Under Case
Various Types Of
Case Shipping
Brackets
3. Remove Case (With Casters) From Skid
A. Place ramp up against skid (to allow case to
smoothly slide off from skid).
B. Maintain support of case at all times or center of
gravity may cause case to fall.
C. Unlock Casters. Slide unit to rear of skid. Slide
down ramp and off from skid.
• Note: Illustrations reflect general outline of
sample case and may not reflect your particular
model or options).
Support
case while
removing
from skid.
6
Support
case
while
sliding
down
ramp.
Ramp
