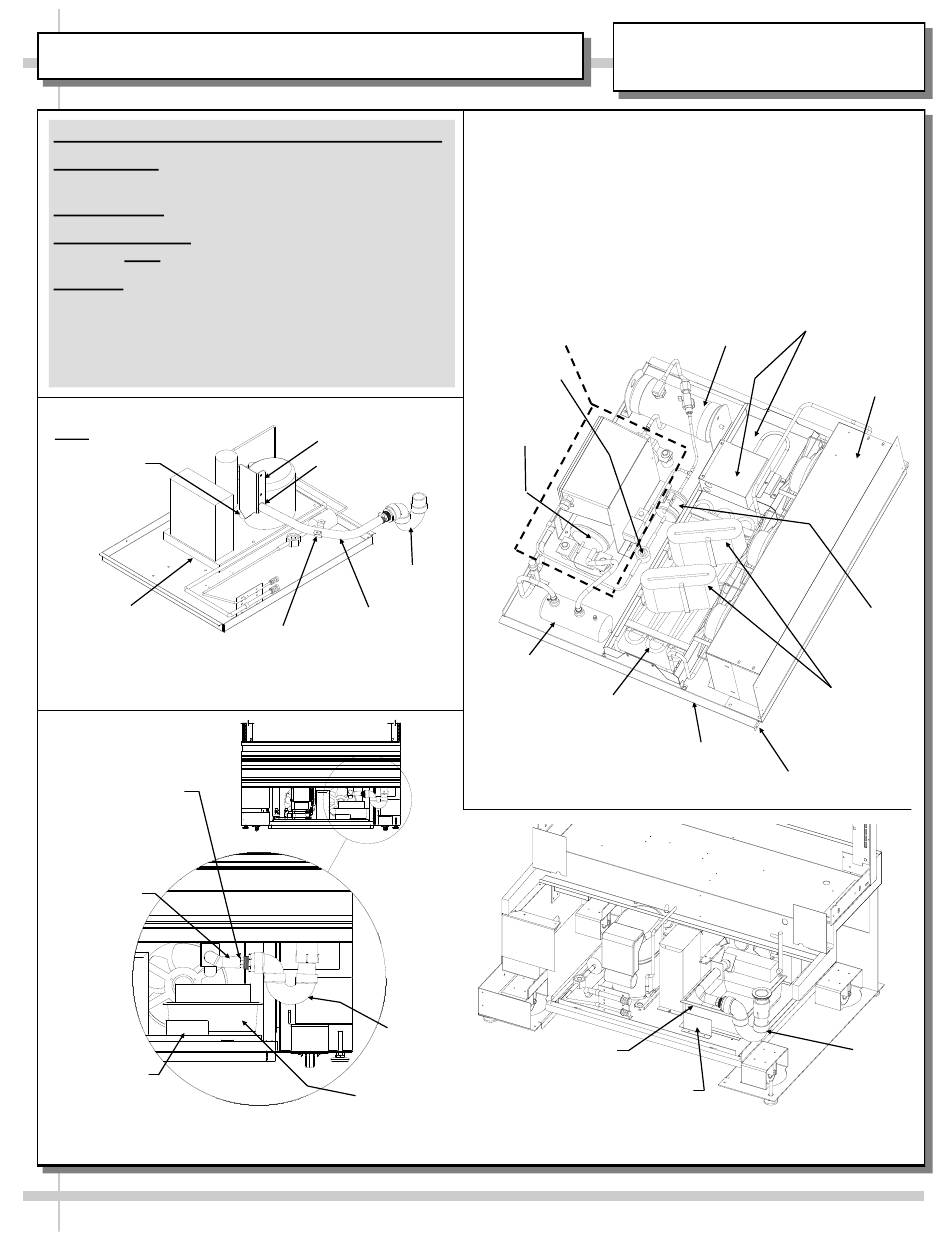

DRAIN, HOSE AND BRACKET PLACEMENT ILLUSTRATIONS
Three Evaporator Systems Are Illustrated Below:
Illustration #1: Hot Gas "CopeVap" Evaporator
System. "Copevap" is built into Compressor Unit.
Illustration #2: Hot Gas Evaporator System.
Illustration 3A/3B : Electrical Heat Rod Evaporator
System. Note: Separate Evaporator Pan.
Warning! Regardless of Evaporator, the Hose and
Drain Trap MUST BE secured and positioned over
Evaporator Pan to prevent water seepage / spillage.
When sliding out Condenser Unit, be careful that
drain is not pulled from proper position.
Note: Drain
positioned
directly over
Reservoir
"CopeVap"
Reservoir
1. Hot Gas "CopeVap" Evaporator System.
Use Hose Clamp
to Secure Hose
to Adapter
Clear PVC
Tube
Evap. Pan
Positioning
Bracket
3A. Front View of
Electrical Heat Rod Evaporator System
Bracket
Hose thru bracket
Drain Trap
Clear PVC
Tube
Clamp
Drain
Trap
Evaporator
Pan
NOTE: BELOW ILLUSTRATIONS MAY
2. Hot Gas Evaporator System.
•
Hot gas serpentine coil is routed through a condensate
reservoir allowing water to be heated. This system
uses a wicking material (partially submersed) with
warm condenser air passing through it for evaporation.
•
Also incorporates an overflow reservoir with heating
element to ensure complete condensate removal.
This area of your unit
may widely vary (due to
display case options).
Sight Glass
Scroll
Compressor
Suction
Accumulator
Hot
Serpentine
Coil
Evaporator Pan
Evap. Pan Positioning Bracket
3B. Isometric View of
Electrical Heat Rod Evaporator System
13
NOT EXACTLY REFLECT EVERY
PARTICULAR CASE'S FEATURES
Elec. Box, Hot
Gas Condensate
Overflow
Receiver
Refrigeration
Compressor Pan
Assembly
Shipment Screw
Base
(1 at each side)
Fan
Shroud
Filter
Drier
Wicking
Material
Drain
Trap
