ADJUSTING TOE-KICK / REMOVING FRONT GRILLE
1. Adjusting Toe-Kick
Model HMO2653R

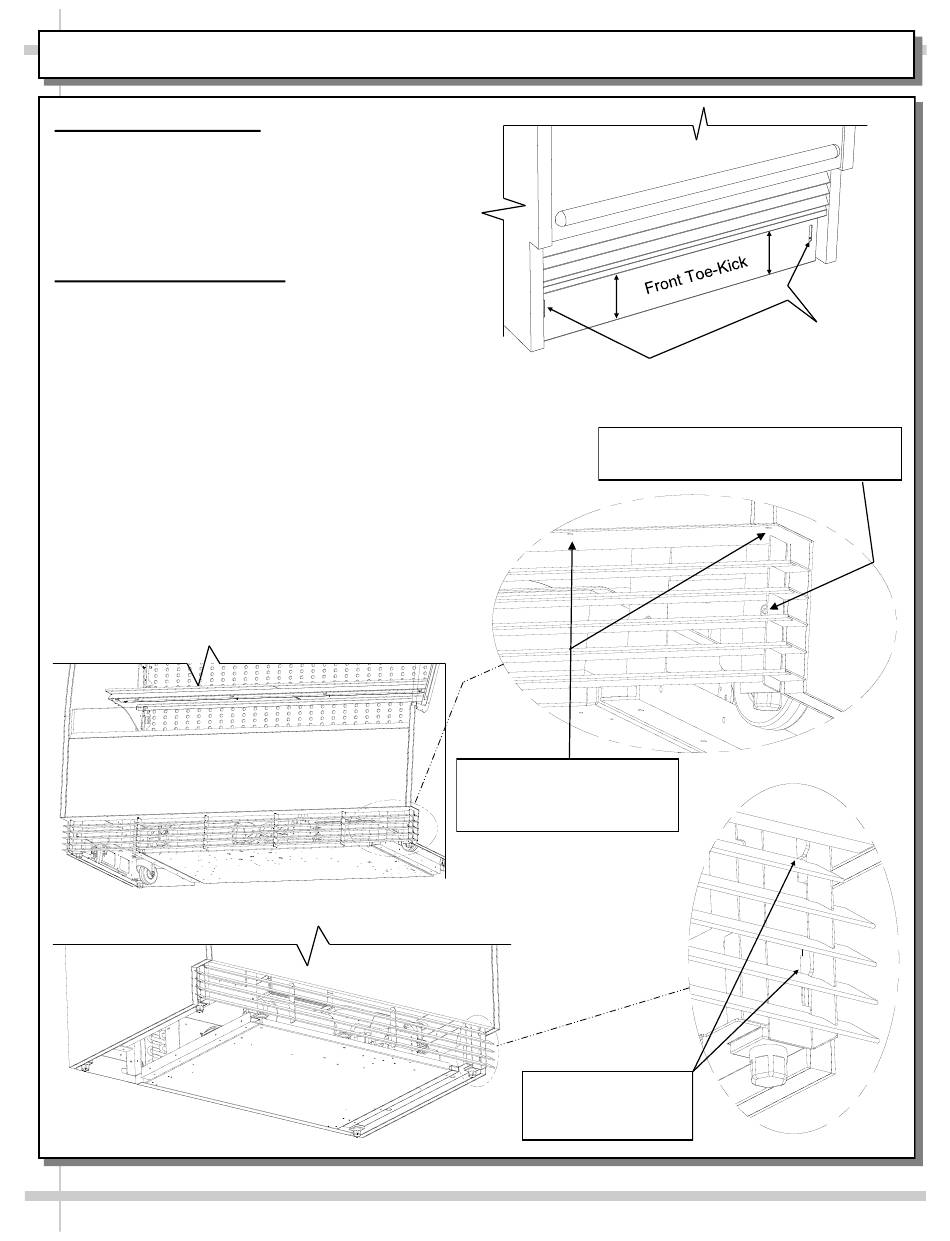

• See illustration at top-right.
• Loosen adjustment screws located on toe-kick.
•
Adjust Front Toe-Kick up or down.
•
Tighten Adjustment Screws.
2. Removing Front Grille
>> Grille Removal (With Screws)
• Remove front grille retainer screws (both
horizontal and vertical). See illustration at
mid-right.
• Front Grille will fall forward and can be lifted
up and away from case.
• Replace Front Grille in reverse order it was
removed from case.
• Tighten retainer screws.
>> Grille Removal (Without Screws)
• Front grille is held in place with retaining hooks.
• Simply lift front grille up and off case.
• No screws are required for this particular grille.
• See illustration at lower-right.
(HMG2653R)
Front Grille Horizontal Retainer Screws
Front Grille Vertical Retainer
Screws (Along Entire
Underside of Front Panel)
Front Grille Retaining
Hooks (At Each End
of Grille)
15
Location of Front
Toe-Kick
Adjustment
Screws
(One at Each End of Case)
