Structural Concepts HARMONY HMO5153R User Manual page 16

REAR FILTER / GRILLE / PANEL ACCESS AND REMOVAL / COMPRESSOR PAN SHIPMENT SCREWS
1. Magnetized Condenser Coil Filter (Optional)
• Removable magnetized condenser coil filter is
positioned on outside of rear grille.
• It is held in place with magnetic strips.
• It may be removed for cleaning or service.
2. Rear Grille
• Rear grille may be removed by lifting grille slots up
and off rear panel's retainer hooks.
3. Rear Panel
• Rear panel is held in place with four Phillips™
(not flat-head) screws (which may be removed).
4. Compressor Pan Shipment Screws
• Note: At initial access to refrigeration package,
it may be necessary to remove compressor pan
shipment screws.

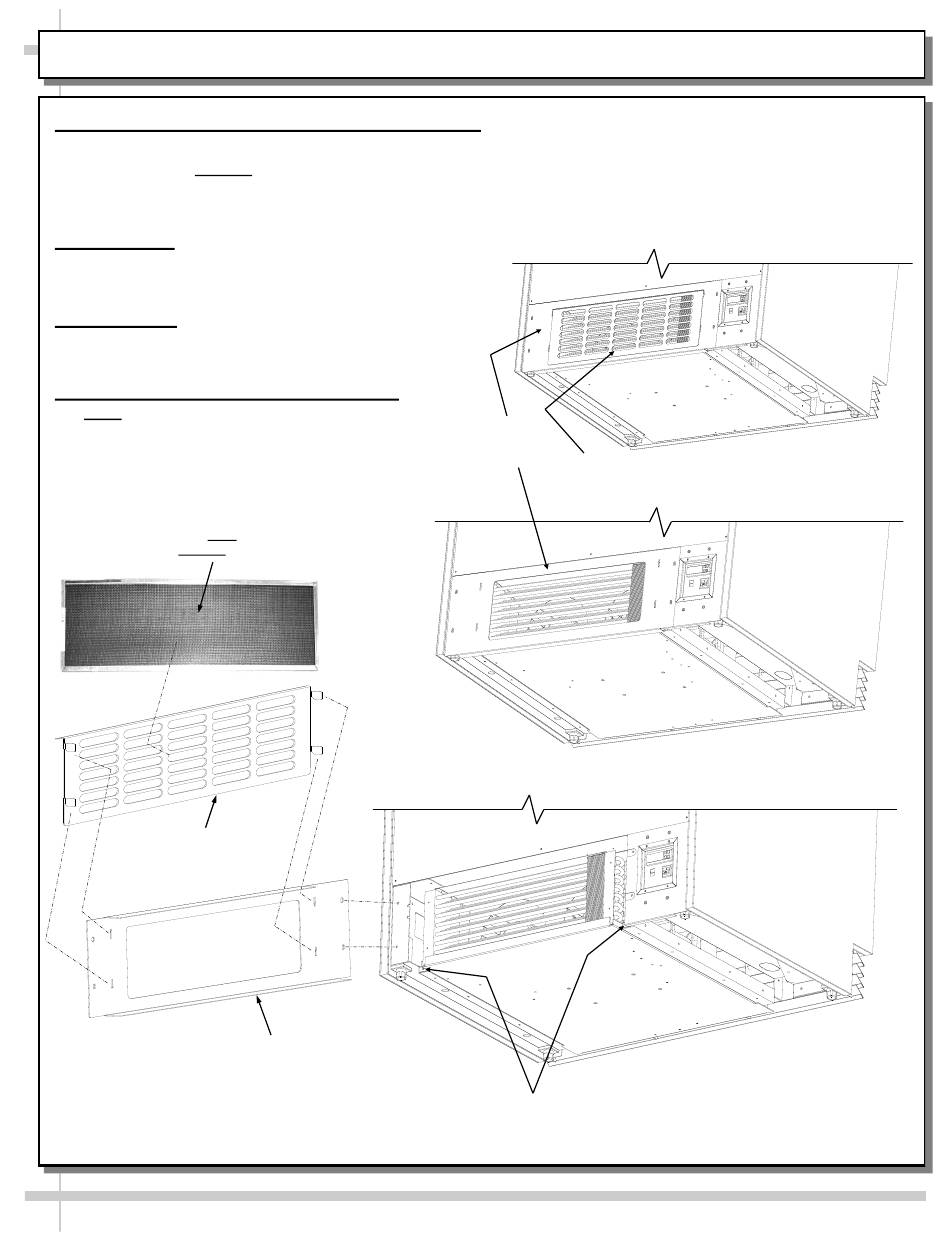

Removable, Magnetized Condenser Coil
Filter (Optional). Note: Filter is to be
Placed on Outside of Rear Grille
Rear Grille
(Removable by Hooks)
(Removable by Screws)
Enlarged View of Rear Grille Panel
(and Grille) Shown Above
Rear Panel
• Due to location, a Phillips™ (not flat-head) screw
with extension may be required.
• See illustration at lower-right.
• For specifics on refrigeration package and its
components, see next page.
Rear
Panel
Rear
Grille
Compressor Pan Shipment
Screw (One at Each End)
16
View of Case With Rear
Panel & Grille Attached
View of Case With Rear
Grille Removed
View of Case With Rear
Panel & Grille Removed
