Track

NOTE
• Always inspect the tension of track before operation. Too tight or too loose track
will cause premature wear of sprocket, track to come off, or track to be cut or
cracked.

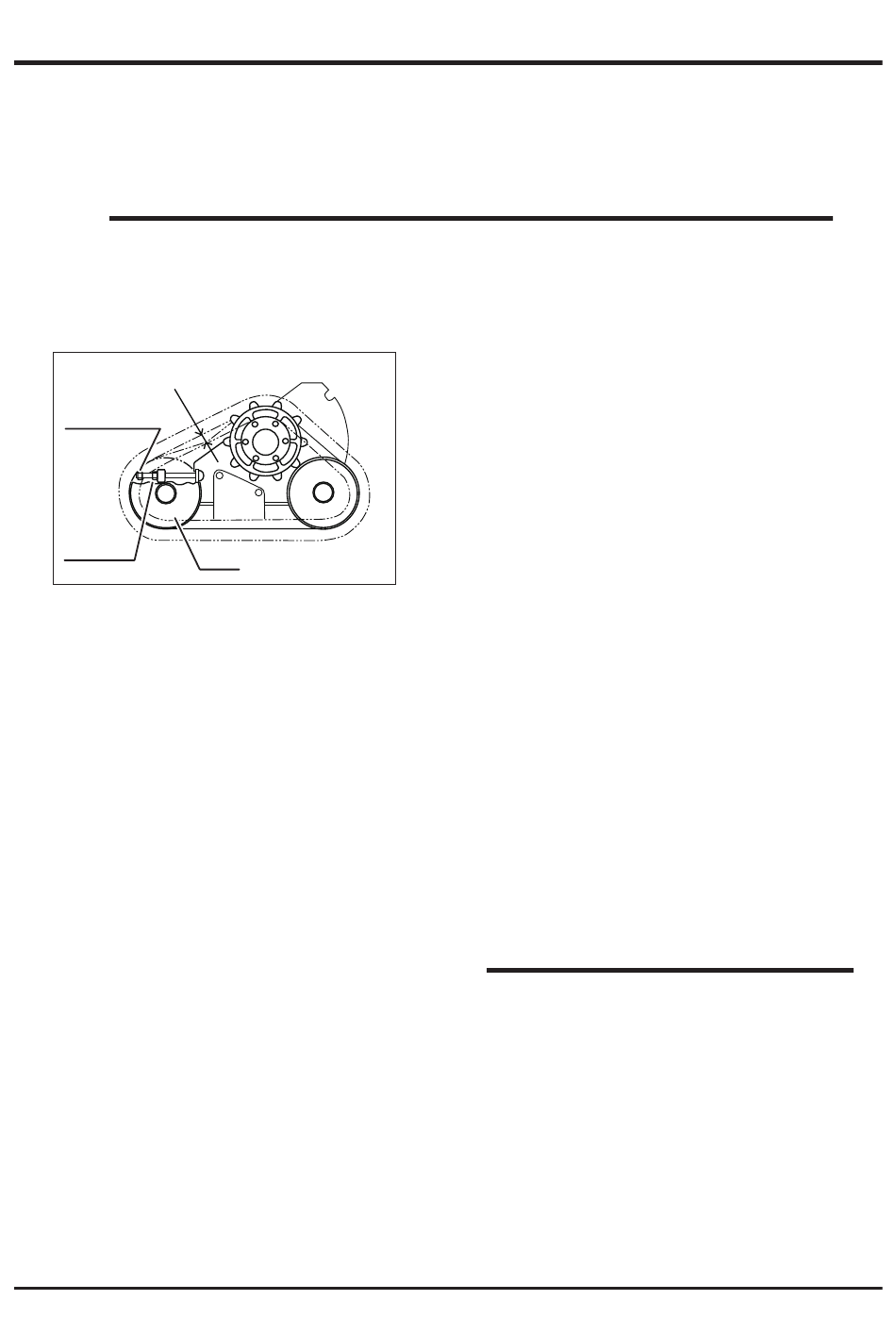

Sag to be 1-20mm
Tension Bolt
Lock Nut
5509M-0506-030E
Maintenance
Idler
Inspecting
1. Jack up machine so that track is parallel to
the ground.
2. Press track with a force of 196N (20kgf) to
see if track sags between 1 and 20mm. If
not, adjust. Make sure left and right tracks
are at the same tension.
3. Lower machine.
Adjusting
1. Jack up machine so that it is parallel to the
ground.
2. Loosen lock nut.
3. Adjust track tension bolt so that track sags
between 1 and 20mm when pushed with a
force of 196N.
4. Adjust the other track so that the tension of
both tracks are the same.
5. Tighten lock nut
6. Lower machine.
NOTE
• Overtightened track can damage track and
undercarriage.
Replacing
1. Jack up machine so that it is parallel to the
ground.
2. Loosen lock nut, then loosen track tension
bolt until crawler can be removed from
sprocket. Remove crawler.
