The communication module can be easily removed and
replaced from a bucket truck using a hookstick.
NOTICE
To prevent contamination of the connectors, never
place the connector on the ground without some
form of protection from dirt and mud .
Removing the communication module can be done
from a bucket truck with the module handling fitting
attached to a suitable hookstick.
CAUTION
The communication module is heavy, weighing more
than 26 pounds (12 kg) . S&C does not recommend
removal and replacement from the ground using
an extendostick . This may cause minor injury or
equipment damage .
Remove and replace the communication module
from a bucket truck using the module handling fitting
attached to a suitable hookstick .
Follow these steps to remove the communica-
tion module:
Insert the handling fitting into the module latch
STEP 1 .
and push up on the hookstick. Rotate the fitting
90 degrees counterclockwise (as viewed from
the underside of the base) to open the latch.
See Figure 1.
Remove the communication module from the
STEP 2 .
base. See Figure 2. Pull very hard to disengage
the wiring connectors.
Remove the handling fitting from the module
STEP 3 .
latch by pushing in on the hookstick while
rotating it 90 degrees clockwise. Place the
communication module on a clean, dry surface.
See Figure 3.

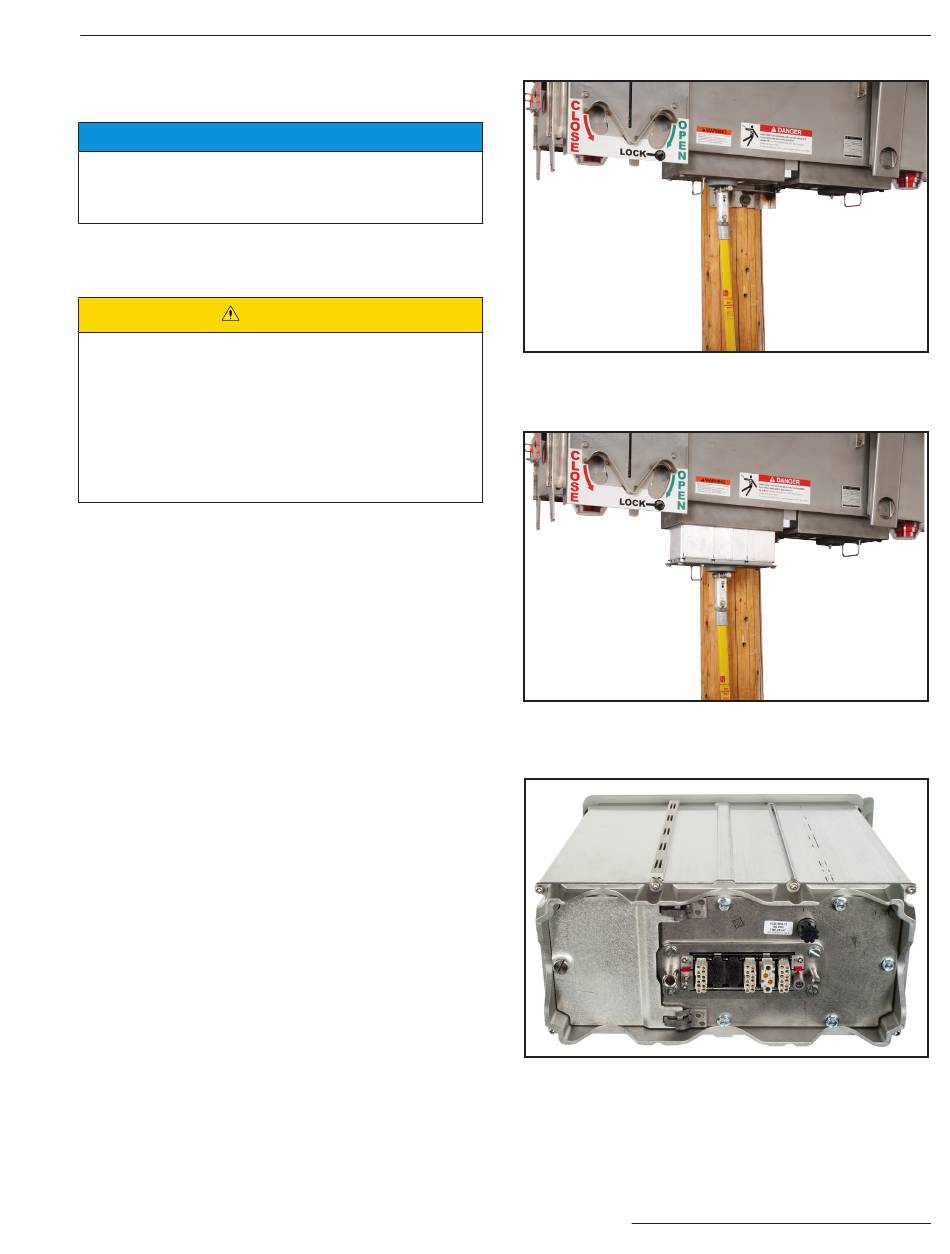

Communication Module Removal
Figure 1 . Inserting the handling fitting into the module
latch .
Figure 2 . Removing the communication module from the
base .
Figure 3 . The rear of a communication module removed
from the IntelliRupter fault interrupter base .
