S&C IntelliRupter PulseCloser Configuration Manual page 11

Fault interrupter r3 communication module

Hide thumbs Also See for IntelliRupter PulseCloser:

Attach cables to the Wi-Fi/GPS module. See

STEP 6 .

Figure 14.

(a) The two antenna connectors are marked

for "GPS" and "Wi-Fi." Connect them as

indicated.

(b) The three gray cables are marked for the

appropriate connector. Connect them from

top to bottom in this order: J18, J17, and

J16. Connector J15 is not used.

J18

J17

J16

J15

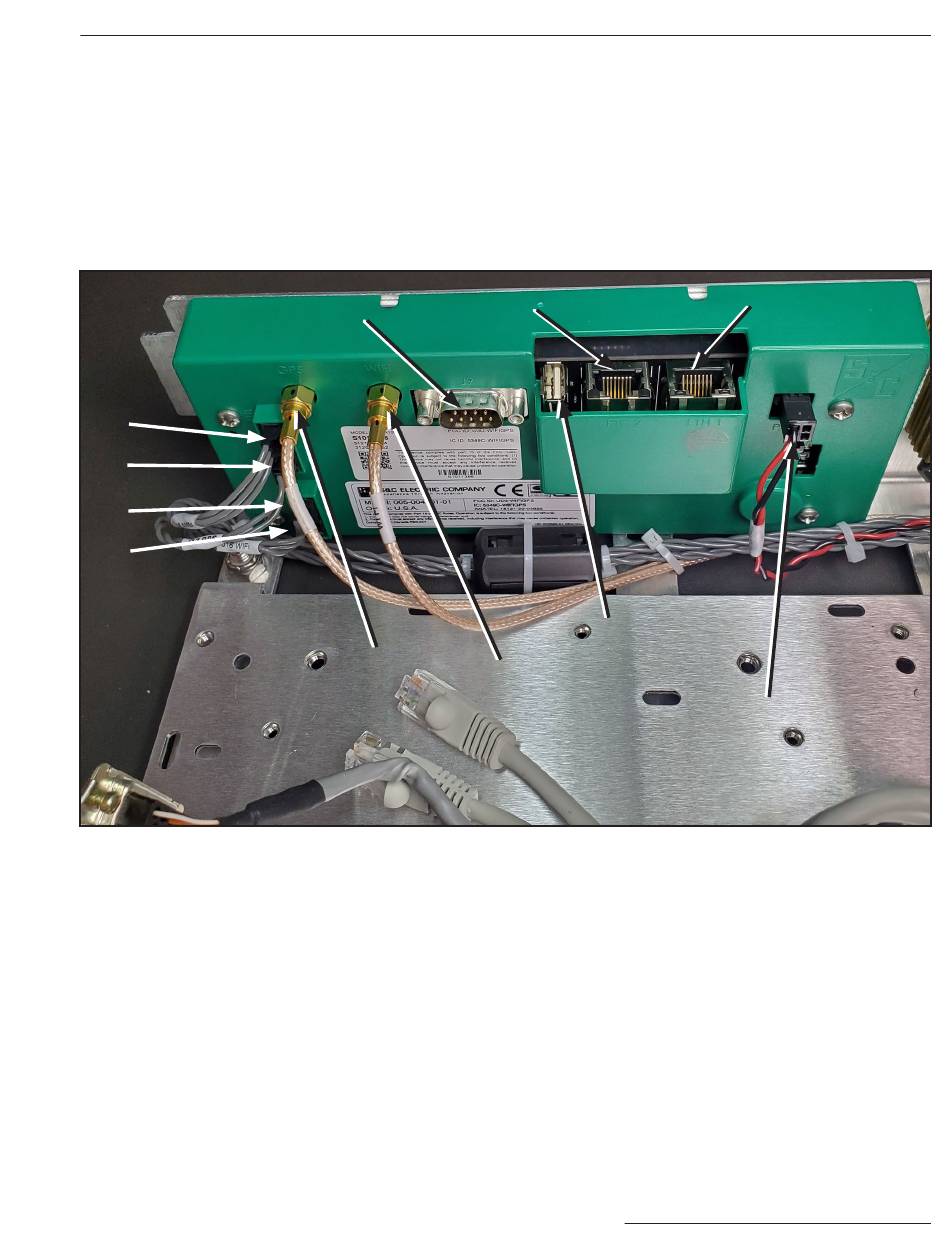

Figure 14 . The R3 Wi-Fi/GPS module connections, with no communication device installed .

Ethernet 2

Serial

GPS antenna

Wi-Fi antenna

Communication Module Retrofit

Ethernet 1

USB connector

(not used)

Polarized power

connector

S&C Instruction Sheet 766-526
