Setting the R3 Communication Module to Ethernet IP Configuration
Click on the Interfaces option in the left menu
STEP 2 .
to open the Interfaces screen. See Figure 30.
Go to the Ethernet 2 (WAN) panel and toggle
STEP 3 .
the Enable setpoint to the On position to
enable the Ethernet 2 interface, if not already
enabled, and make sure the DHCP Client
setpoint is disabled and in the Off position.
Now, configure the Static IP Address setpoint
with the IP address copied from the IntelliR-
upter fault interrupter's Ethernet IP address in
Step 6 on page 14.
Do the same for the Netmask setpoint
(which will be the subnet mask copied from the
IntelliRupter fault interrupter) and the Default
Gateway IP Address setpoint (which will be
the default gateway address from the IntelliR-
upter fault interrupter). Then, click on the Save
button in the top right of the screen to save the
configuration. See Figure 31.
Follow these steps when using an R3 Communica-
tion Module running software versions 3.0.x or later to
configure the Ethernet 2 (WAN) Interface:

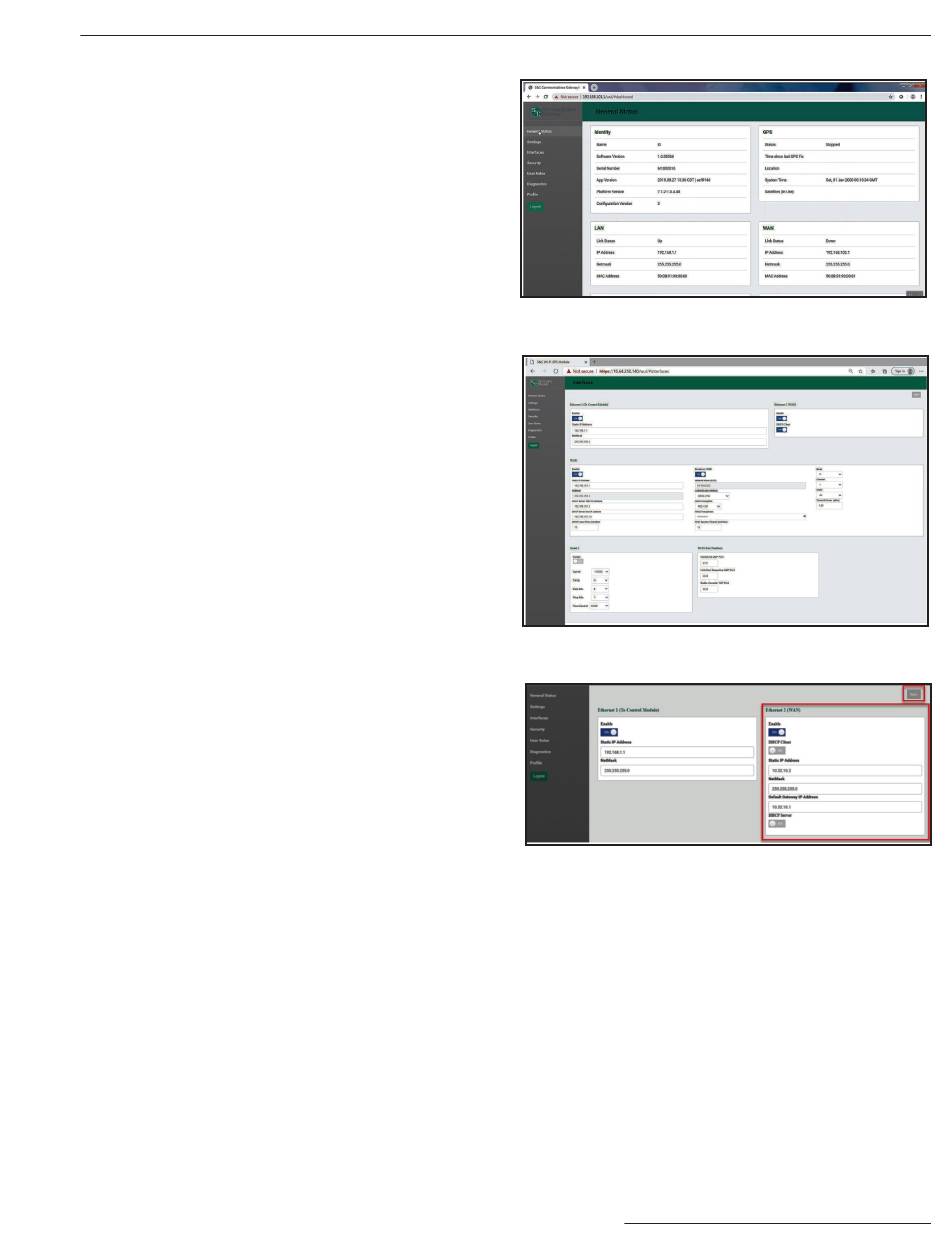

Figure 29 . The top of the General Status screen .
Figure 30 . The Interfaces screen .
Figure 31 . The Ethernet 2 (WAN) panel of the Interfaces
screen .
. S&C Instruction Sheet 766-526 17
