Setting the R3 Communication Module to Ethernet IP Configuration
The Connect button changes to the
Cancel button, and connection progress
is shown on the connection status bar. See
Figure 23.
When connection is established, the status
bar indicates "Connection Successful" and
displays a solid green bar. The vertical bar
graph indicates signal strength of the Wi-Fi
connection. See Figure 24.
Open the Tools menu and click on the Wi-Fi
STEP 3 .
Administration option. See Figure 25.

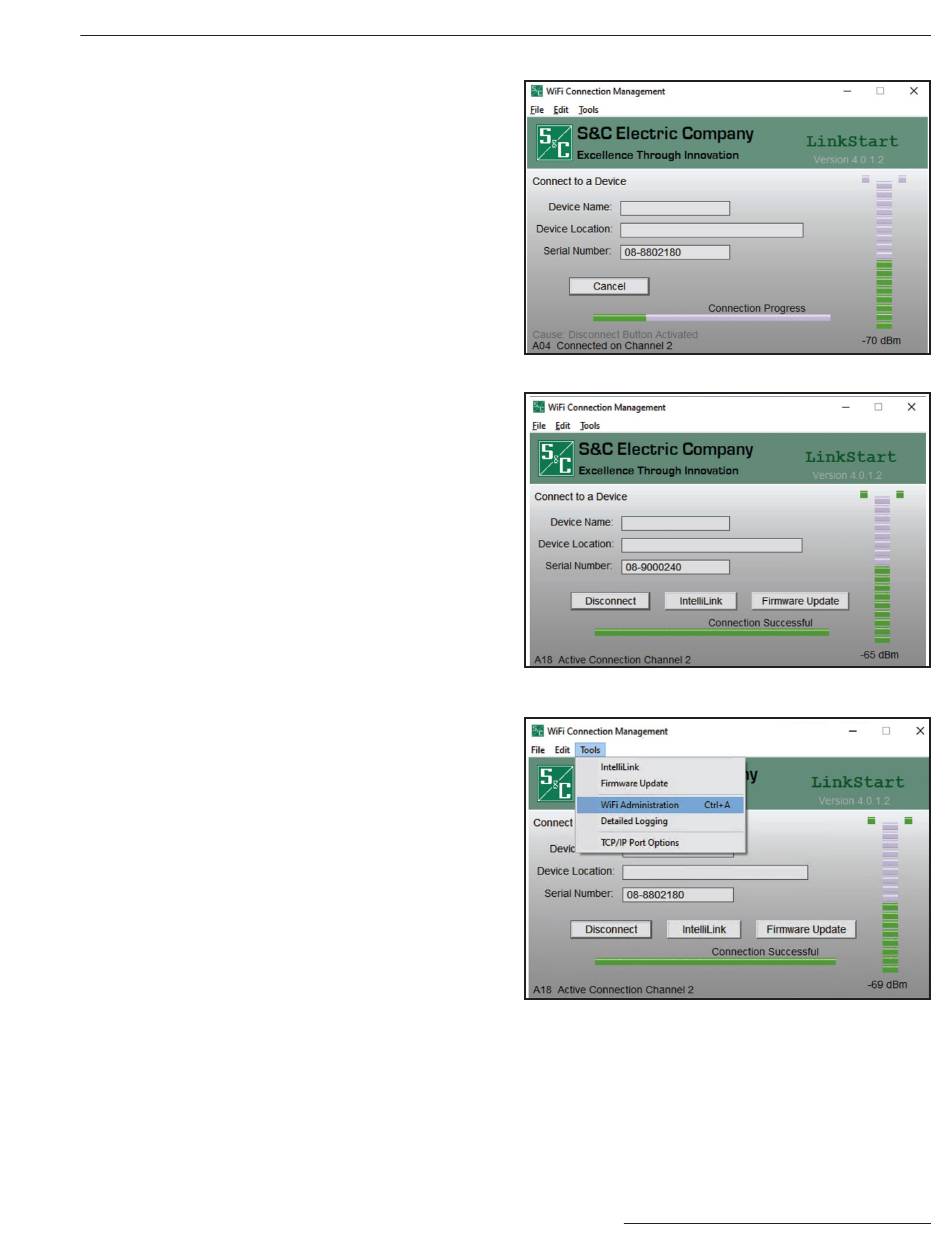

Figure 23 . The connection progress status bar .
Figure 24 . Successful connection to the IntelliRupter fault
interrupter .
Figure 25 . The Wi-Fi Administration entry on the Tools
menu .
