S&C IntelliRupter PulseCloser Configuration Manual page 16

Setting the R3 Communication Module to Ethernet IP Configuration
The Login screen opens with a username
and password challenge. See Figure 26. These
screens are displayed in the Internet browser
on the computer.
The supported browser versions include
Google Chrome and Microsoft Edge. The IP
address is displayed at the top of the screen
and is supplied by the R3 Communica-
tion Module.
Enter the username and password and click
STEP 4 .
on the Login button. Authentication status is
displayed. See Figures 26 and 27.
The default username and password can
be requested from S&C by calling the Global
Support and Monitoring Center at 888-762-
1100 or by contacting S&C through the S&C
Customer Portal at sandc.com/en/support.
Follow these steps to reconfigure the WAN interface
of the R3 Communications Module if using software
versions earlier than 3.0.x. Otherwise, skip to Step 1 on
page 18 if running software version 3.0.x or later:
When the default username and password are
STEP 1 .
entered, the Profile screen opens and prompts
assignment of a new password entry and
confirmation. Change the default password to
a unique password for security purposes. When
entries are complete, click on the Apply button
to save the new password. See Figure 28.
After changing the password, the General
Status screen appears. See Figure 29 on
pages 17.
16 S&C Instruction Sheet 766-526

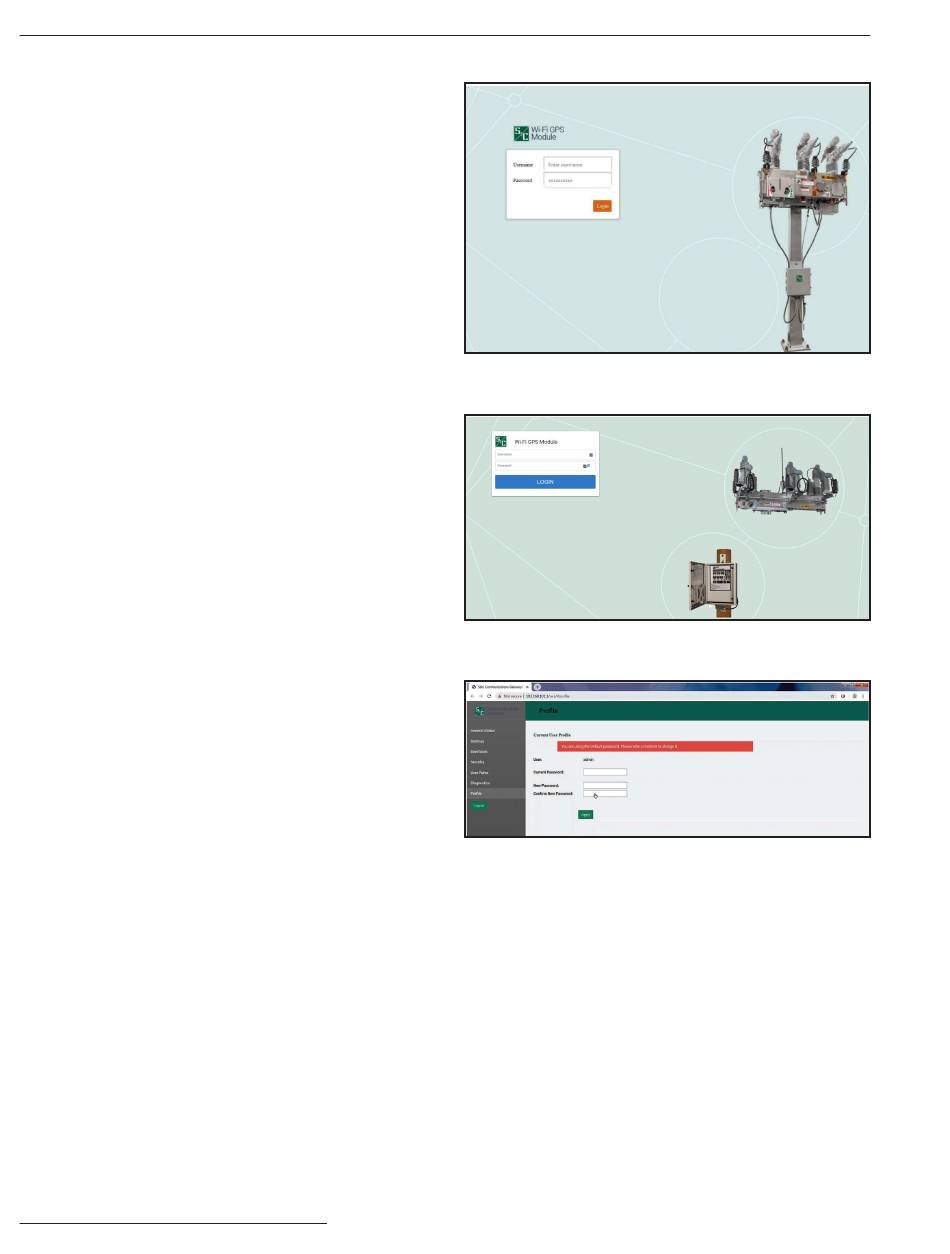

Figure 26 . The Login screen - R3 Communication Module
running 2 . 1 .x software or earlier .
Figure 27 . The Login screen - R3 Communication Module
running 3 .0 .x software or later
Figure 28 . The Change Password screen .
.
