Communication Module Retrofit
Connecting the cables as instructed in this
step emulates operation of the R0 Communica-
tion Module, which is a serial communication
configuration. For Ethernet IP configuration,
go to the "Setting the R3 Communication
Module for Ethernet IP Configuration" section
on page 13.
Reinstall the SCADA radio and mounting plate
STEP 7 .
with the existing Phillips screws.
Reconnect the radio power cable, the antenna
STEP 8 .
cable, and the serial and/or Ethernet cables.
Reinstalling the Radio Tray
Reinstall the radio tray in the communication
STEP 1 .
module enclosure.
(a) Insert the radio tray into the communica-
tion module. See Figure 15.
(b) Install the five existing ¼–20 bolts that
attach the radio tray assembly using
a ⅜-inch nut driver. See Figure 16.
(c) Close the battery compartment cover and
tighten the cover locking screw.
Install the new "R3" label on the front plate in
STEP 2 .
the recess at the right as indicated in Figure 17.
If the Ethernet IP configuration has been set,
STEP 3 .
install the "-E" label on the front panel recess.
12 S&C Instruction Sheet 766-526

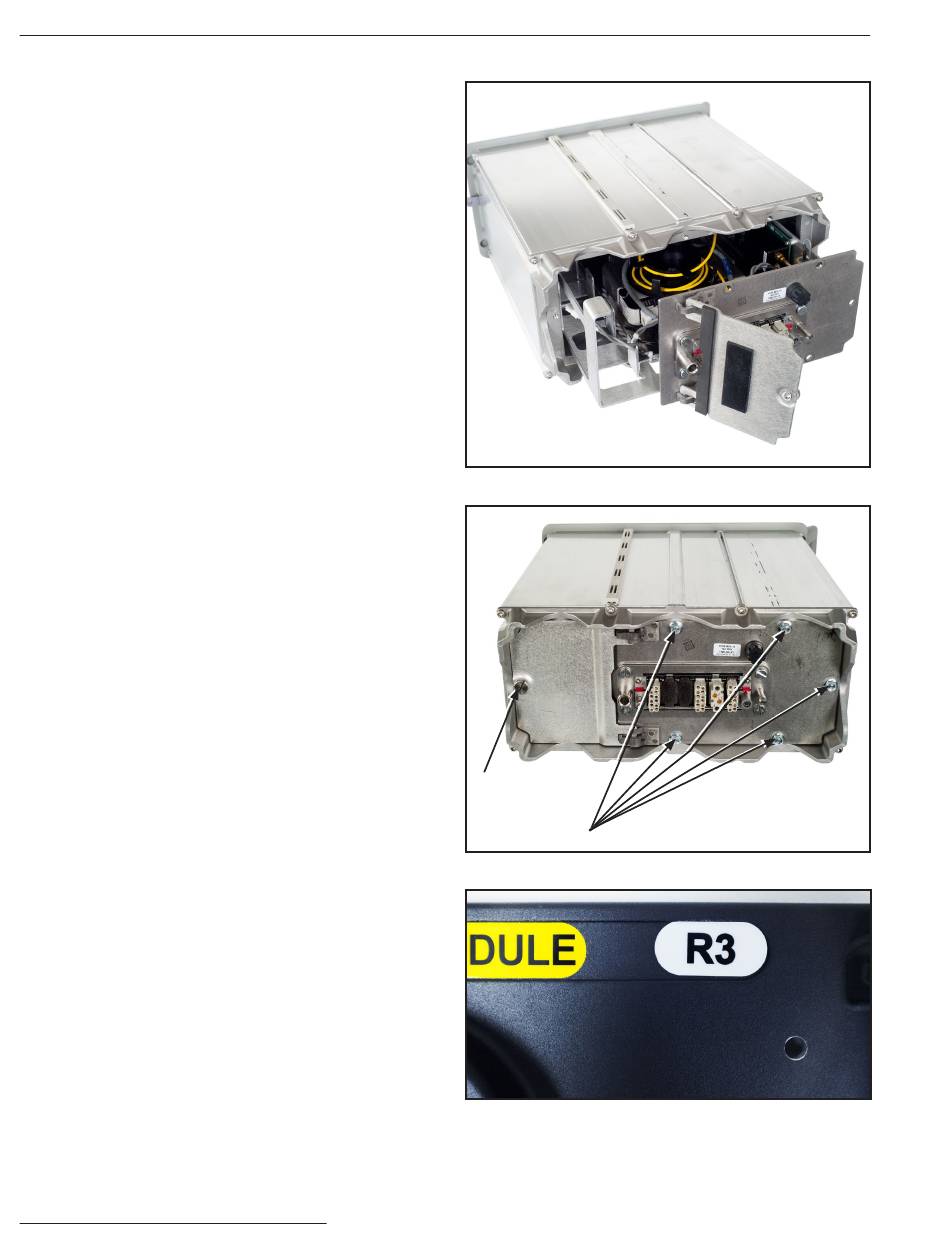

Figure 15 . Reinstalling the radio tray assembly .
Locking screw
Radio tray
mounting bolts
Figure 16 . The radio tray mounting bolts .
Figure 17 . The new "R3" label on the front panel .
.
