Setting the R3 Communication Module to Ethernet IP Configuration
Interface Pinouts
The RS-232 Radio Maintenance Port of the R3 Communi-
cation Module is configured as data-terminal equipment.
See Figure 38 on pages 21 and Figure 39.
The R3 Communication Module Ethernet ports use
RJ-45 connectors with the pinout shown in Figure 40.
They are auto-sensing for assignment of transmit and
receive lines (no crossover cables required) and auto-
negotiate for 10-Mbps or 100-Mbps data rates, as required
by the connected device.
22 S&C Instruction Sheet 766-526

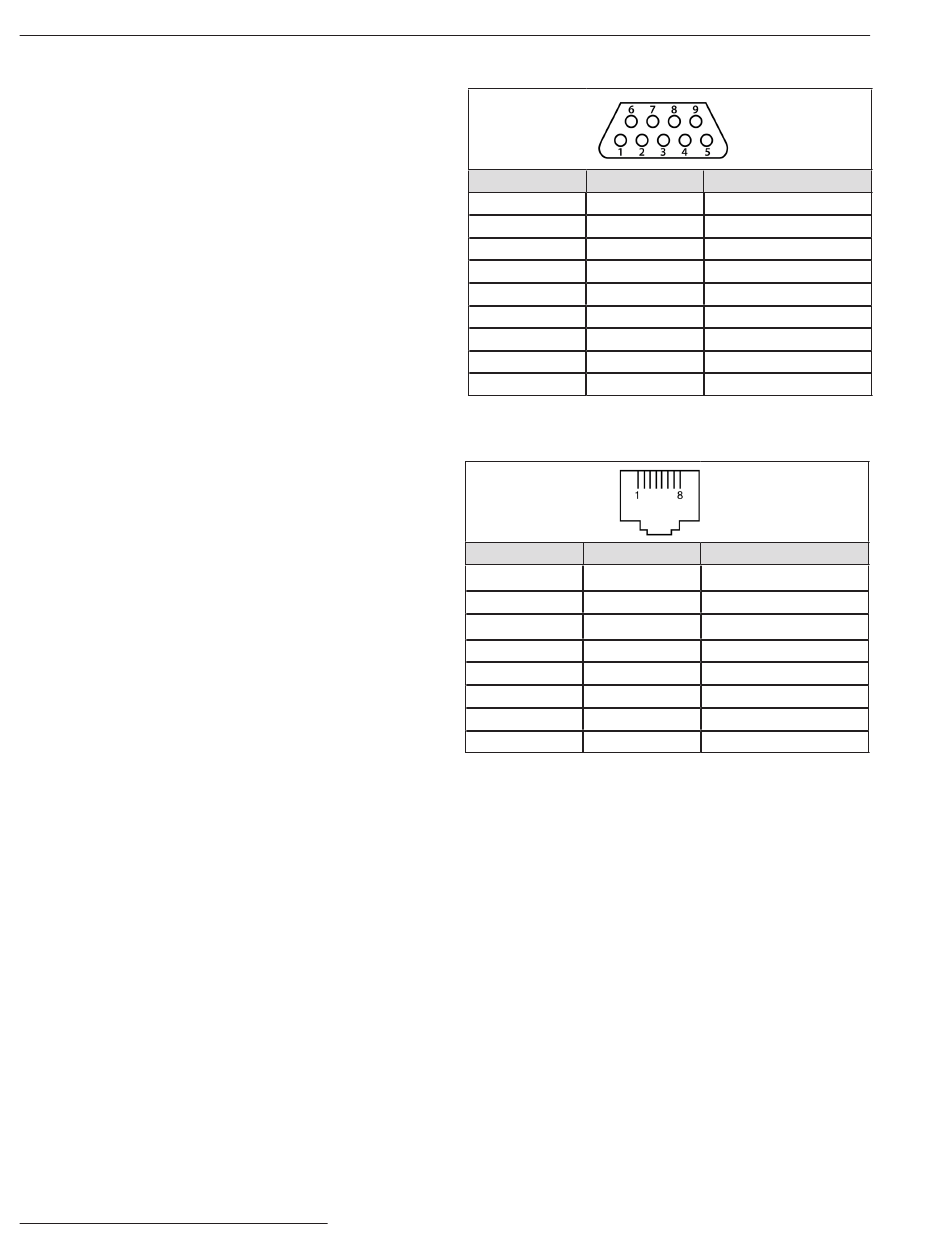

Figure 39 . The R3 Communication Module RS-232
interface pinout .
Figure 40 . The R3 Communication Module RJ-45 interface
pinout .
.
Pin Function
1 NC
2 RX from radio
3 TX to radio
4 NC
5 TX to Radio GND
6 NC
7 RTS to radio
8 CTS to radio
9 NC
Pin Function
1
TXD+
2 TXD-
3
RXD+
4 NC
5 NC
6 RXD-
7 NC
8 NC
Description
No connection
RS-232 receive
RS-232 transmit
No connection
Signal ground
No connection
Request to send
Clear to send
No connection
Description
Transmit
Transmit
Receive
No connection
No connection
Receive
No connection
No connection
