TripSaver® II Cutout-Mounted Recloser
Controller Module and USB Transceiver User Guide

Table of Contents

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Qualified Persons . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Read this Instruction Sheet . . . . . . . . . . . . . . . . . . . 2
Proper Application . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Retain this Instruction Sheet . . . . . . . . . . . . . . . . . . . 2
. . . . . . . . . . . . . . . . . . . . . . . . . .
Understanding Safety-Alert Messages . . . . . . . . . . . 3
Replacement Instructions and Labels . . . . . . . . . . . 3
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Module Integration . . . . . . . . . . . . . . . . . . . . . . . . 4
Transceiver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Contents of TripSaver II Recloser Kit . . . . . . . . . . . . 7
Inspection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Packing and Storage . . . . . . . . . . . . . . . . . . . . . . . . 8
September 12, 2022
© S&C Electric Company 2017-2022, all rights reserved
2
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Downloading Software . . . . . . . . . . . . . . . . . . . . . . . 9
Installing Software . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Launching Software . . . . . . . . . . . . . . . . . . . . . . . . . 9
3
Battery Information . . . . . . . . . . . . . . . . . . . . . . . . . .15
Appendix A
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4
Regulatory Information . . . . . . . . . . . . . . . . . . . . . . .16
6
. . . . . . . . . .
. . . . . . . . . . .
Instruction Sheet 461-508LD
9
10
14
16

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TripSaver II and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for S&C TripSaver II

Summary of Contents for S&C TripSaver II

  • Page 1: Table Of Contents

    . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Contents of TripSaver II Recloser Kit . . . . . . . . . . . . 7 Inspection .

  • Page 2: Introduction

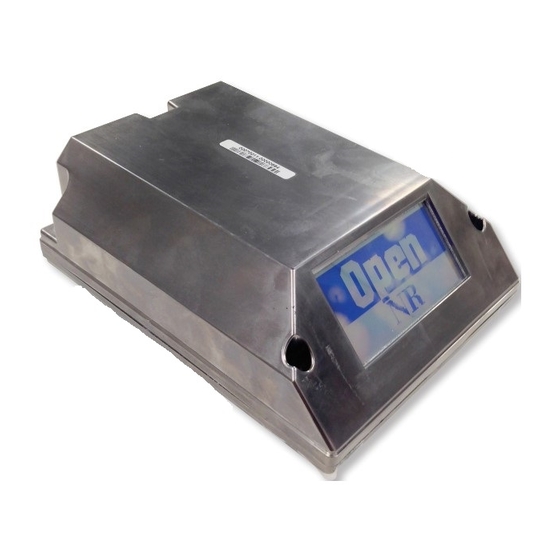

    The controller module is located inside the TripSaver II Cutout-Mounted Recloser . It has been evaluated for use only inside the TripSaver II recloser . Do not expose it to moisture . Do not use it outside the TripSaver II recloser enclosure, and do not use it for any purpose other than for which it is intended .
