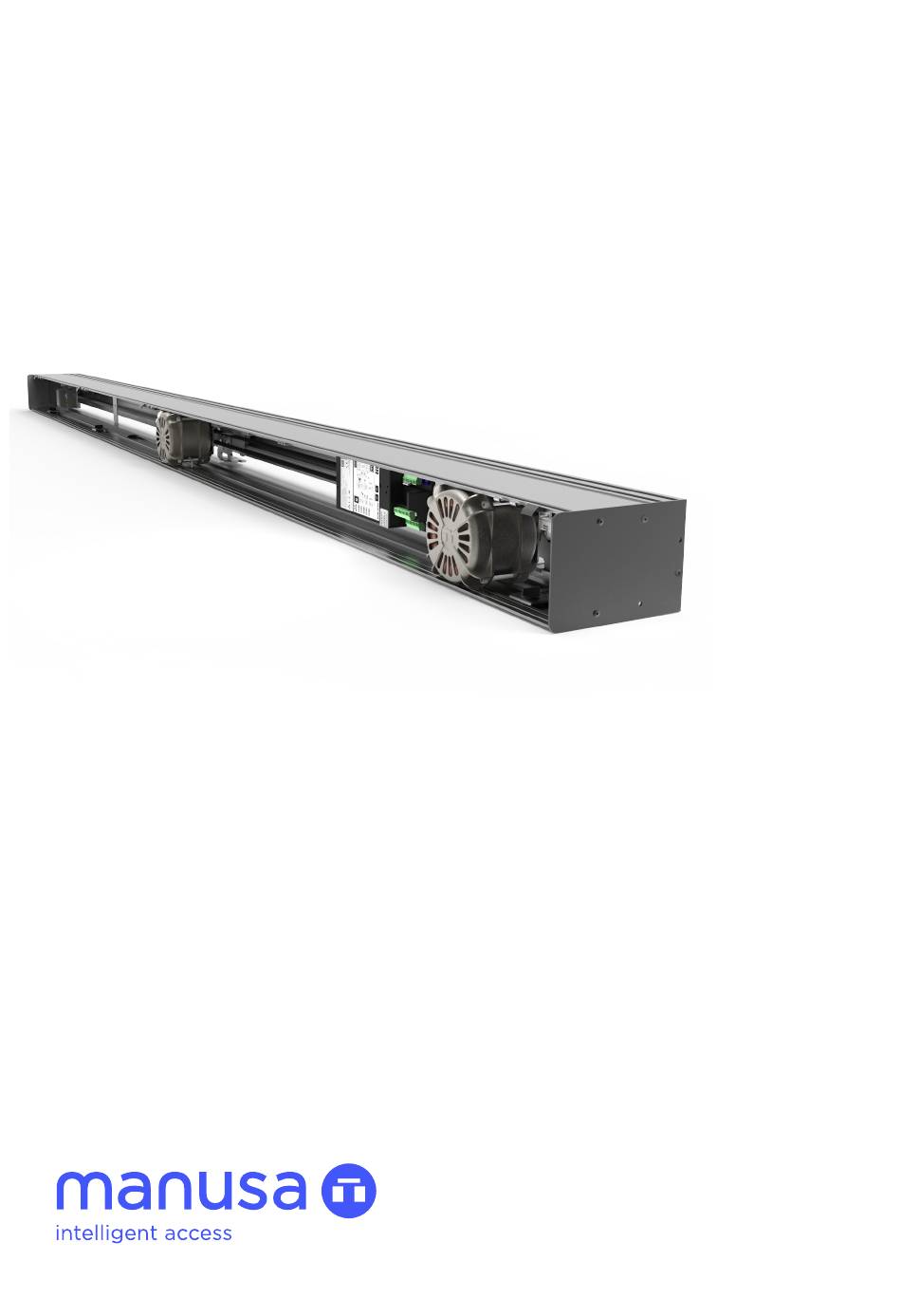

- Page 1 Manusa / Instruction Manual D01380EN-v5 Visio+ Operator Instruction Manual...
- Page 2 Manusa / Instruction Manual D01380EN-v5 UNE-EN 16005, this manual has been written in accordance with the international In compliance with standard UNE-EN ISO 12100 standard and includes the following information: • Use and maintenance instruction manual • EC Declaration of conformity •...
- Page 3 Manusa / Instruction Manual D01380EN-v5 Manusa table of contents 0. Safety instructions 0.1 Identification of the machine's areas 0.2 Safety measures that the user/fitter must take into account 0.3 Residual Risks 0.4 CE marking of the machine 0.5 Designated uses and uses to be avoided 0.6 Location: Physical and Environmental Requirements...
- Page 4 E = Door area The main objective in the manufacturing process of Manusa doors has been reducing risks to people. For that purpose, firstly all possible dangers have been reduced and, then, risk has been reduced by applying the following iterative de-...
- Page 5 The battery must be disposed of in complete safety. 0.3 Residual Risks The principal aim of the design of the Manusa door has been to reduce possible risks, firstly by eliminating danger and then by reducing risk. The following list has been adhered to in the given order: •...
- Page 6 0.5 Designated uses and uses to be avoided The designated use of Manusa automatic doors is to allow access for pedestrians without them having to press any control or component. Uses which are prohibited must be avoided and are listed below: •...
- Page 7 Manusa The installation of machines and any maintenance, regulation, adjustment work, etc. must be carried out by technical personnel authorised by Manusa. The training process for authorised fitters takes the following objectives into account: • To familiarise fitters with the use of maintenance and/or lifting equipment •...
- Page 8 Manusa / Instruction Manual D01380EN-v5 0.9.4 Maintenance conditions and necessary equipment The handling equipment used for the handling and transport of the different parts of the machine must be adequate to the dimensions of the parts, as well as have the corresponding accessories: slings, cables, etc. The handling equipment must be stable to withstand the oscillations that occur during transport.
- Page 9 125HD allow the door to be adapted to the customer’s loop, of devices and sensors without Manusa Bus. needs in terms of the required dynamic performance. Built-in IoT module, allows door control and a series of...
- Page 10 Manusa / Instruction Manual D01380EN-v5 2. Motor group: technical features Motor group features VISIO+ 100 VISIO+ 125 VISIO+ 125HD Opening speed (adjustable) x leaf ≤ 0,7 m/s ≤ 1 m/s ≤ 0,7 m/s Closing speed (adjustable) x leaf 0,15 to 0,6 m/s...
- Page 11 Manusa / Instruction Manual D01380EN-v5 3. Chassis: technical features Manusa VISIO + operators offer many assembly varieties depending on the construction requirements: Chassis features Visio+ 125 Visio+ 100 Visio+ 125 Telescopic Visio+ 125HD Operator dimens. (height x depth) [mm] 100 x 203...
- Page 12 Manusa / Instruction Manual D01380EN-v5 In the self-supporting system, the term portability refers to the minimum distance between fixing points, provided in the attached diagrams based on the weight of the leaves. Portability Central operator 2 leaves Portability Side operator 1 leaf...
- Page 13 Manusa / Instruction Manual D01380EN-v5 4. Leaves Manusa The VISIO operator is compatible with the entire range of leaves, as well as any other commercial leaves with a thickness of up to 50mm without the need for intermediate adaptors. Three different types of leaf assembly are allowed in relation to the operator:...
- Page 14 Manusa / Instruction Manual D01380EN-v5 5. Applicable directives and standards Low Voltage Directive 2014/35/UE 2017/30/UE Electromagnetic Compatibility Directive 305/2011/CE Construction Products Regulation 2006/42/CE Machinery Directive EN 16361 Automatic Pedestrian Doors. Product Standard EN 16005 Automatic Pedestrian Doors. Usage Safety Household and Similar Electrical Appliances. Safety. Door Drives...
- Page 15 Manulink: Exclusive software for the centralised control of a door system from a PC. Selectors Óptima+ Selector: with LED segment display. Manusa Bus connection via cable. Surface mount. Óptima Pocket + Selector: wireless by radio frequency. DoorWifi App selector: mobile app. Available for Android and iOS.
- Page 16 Manual operation is only foreseen for cleaning, maintenance and adjustment. All checks and adjustments necessary for commissioning Manusa automatic doors may only be carried out by author- ised technical staff. 9.1 Standard stopping and emergency stopping Standard stopping of Manusa automatic doors as well as their start-up is performed automatically.
- Page 17 Manusa / Instruction Manual D01380EN-v5 9.2 Operating and remote control switch modes Manusa The operating modes for doors are as follows: Door open (Ab) Reduction opening (A1-A4) Exit only (SS) Door closed (CE) Automatic (AU) 9.3 (Mode) remote control switch The remote control switch enables you to change operating mode and view the status of the automatic door.
- Page 18 Manusa / Instruction Manual D01380EN-v5 Óptima pocket+ program switch 1. User mode: The key is configurable, so its function var- ies. Its function can only be changed by the administrator. “Exit Only”. Its default function is 2. Closed mode: In doors without a lock, this operating mode closes the door and releases the leaves.
- Page 19 A new closing cycle will then b attempted until the leaves are fully closed. Manusa technicians can configure the delay before the lock is activated, giving the user more time to reach the door and exit before the leaves are locked.
- Page 20 Manusa / Instruction Manual D01380EN-v5 Óptima+ program switch Press button on the program switch and will be displayed Óptima pocket+ program switch Press button on the program switch and will be displayed Exit only The door will only open when the interior sensor is triggered.
- Page 21 Manusa / Instruction Manual D01380EN-v5 9.5 Locking the operating mode In order to keep control of the door from misuse and/or unauthorised use, the Manusa control switches can be locked/ unlocked as follows. Lock The door will operate normally in the selected mode but the mode cannot be changed until the control switch has been unlocked.
- Page 22 Manusa / Instruction Manual D01380EN-v5 Óptima pocket+ program switch Press key [2] for 3 seconds 9.6 Exterior key opening (optional) Manusa key allows for the door to be opened from the exterior, whatever the operating mode of the door, even in “Closed”...
- Page 23 • Power cut. • Fire alarm signal. In both cases, the batteries fitted in Manusa pedestrian doors will open the leaves automatically and the door will remain open and can be moved by hand. There are the following exceptions: •...
- Page 24 This product is easy to disassemble, and putting it out of service should not be difficult. The door elements shall be disassembled and any waste should be correctly disposed of. 10.4 Maintenance tasks and frequency The jobs and frequency involved in preventative safety maintenance recommended for Manusa pedestrian automatic doors are as follows: General adjustment...
- Page 25 Manusa / Instruction Manual D01380EN-v5 Safety Cycles Frequency (months) Check the correct working order of photocells Check the correct working order of the presence sensors Replace sensors Check door parameters Readjust if necessary Check working order of the panic break-out battery...
- Page 26 Manusa / Instruction Manual D01380EN-v5 11. Warning messages When the automatic door operator detects a malfunction in the door operation, the program switch screen will show a numeric code. The code interpretation is summarised in the following table: Warning Possible cause Corrective action Emergency signal enabled.
- Page 27 Manusa / Instruction Manual D01380EN-v5 Warning Possible cause Corrective action Manusa Critical alarm Possible internal Inform the Technical Service. electronics failure. Change electronics. Manusa Critical alarm Possible internal Inform the Technical Service. electronics failure. Change electronics. Manusa Critical alarm Possible internal Inform the Technical Service.
- Page 28 Manusa / Instruction Manual D01380EN-v5 12. Appendices 12.1 EC Declaration of conformity D01515EN-Rev.002 DECLARATION CE OF CONFORMITY Manufacturer: MANUSA DOOR SYSTEMS Address: Av. Vía Augusta, 85-87, 6ª planta 08174 – Sant Cugat del Vallès Barcelona, España Tel: 902 321 400...
- Page 29 The characteristics described in this document are purely informative and are in no way binding. The manufacturer reserves the right to make modifications without prior notice. Via Augusta, 85-87, 6th floor · 08174 Sant Cugat del Vallès (Barcelona) · Spain manusa@manusa.com · +34 93 591 57 00 · www.manusa.com...
