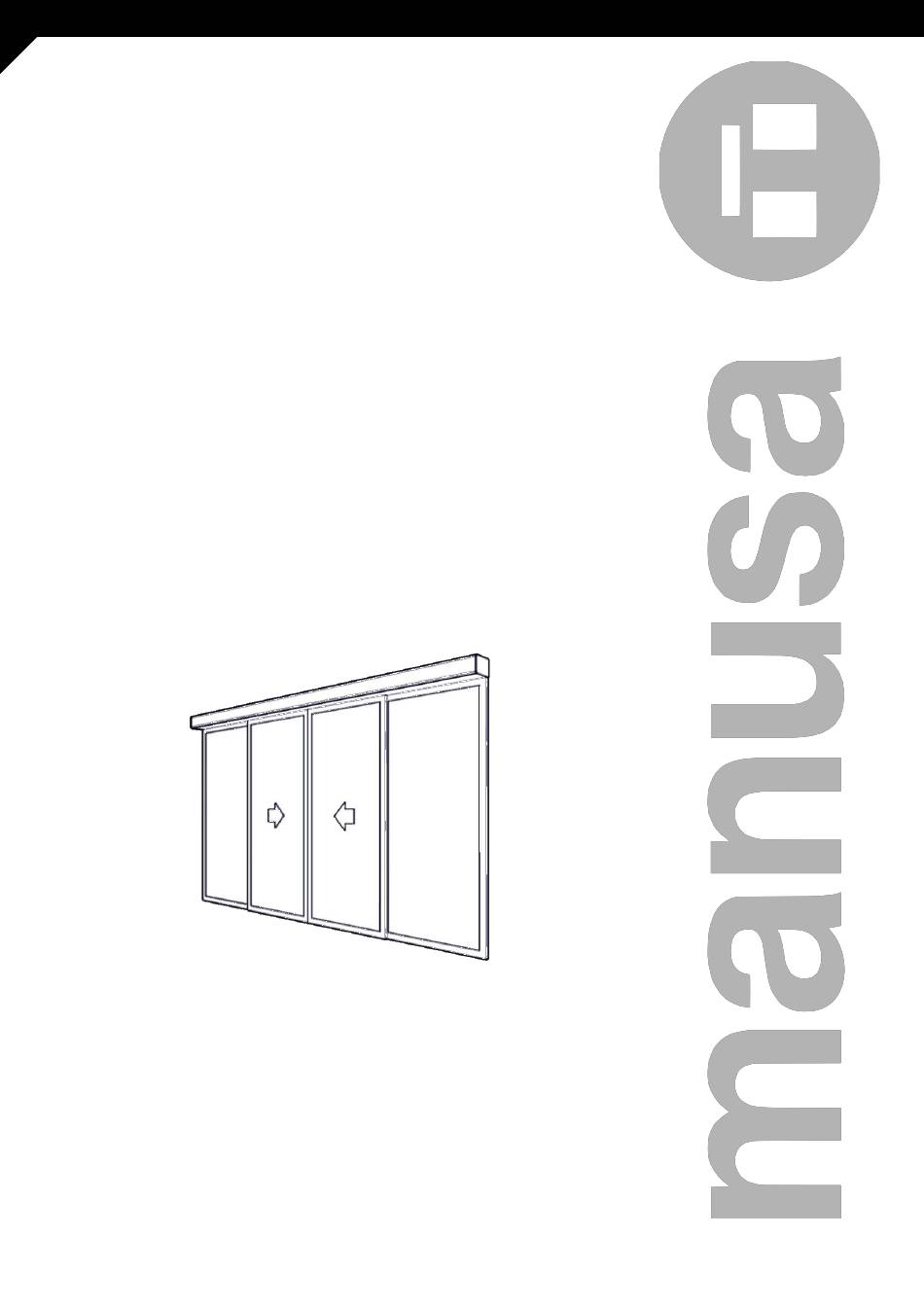

DMJOIC201EN - v2
VISIO C2H OPERATOR - INSTALLATION MANUAL
Installation manual
Op. Visio C2H
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Visio C2H and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Manusa Visio C2H

Summary of Contents for Manusa Visio C2H

  • Page 1 DMJOIC201EN - v2 VISIO C2H OPERATOR - INSTALLATION MANUAL Installation manual Op. Visio C2H...
  • Page 2 DMJOIC201EN - v2 VISIO C2H OPERATOR - INSTALLATION MANUAL TRANSLATED DOCUMENT Read thoroughly all of these instructions before using the unit. INSTALLATION MANUAL This manual includes all the necessary information required to install the product. Keep this manual in a safe place for future reference.
  • Page 3 DMJOIC201EN - v2 VISIO C2H OPERATOR - INSTALLATION MANUAL...

  • Page 4: Installation Dimensions

    DMJOIC201EN - v2 VISIO C2H OPERATOR - INSTALLATION MANUAL 1. INSTALLATION DIMENSIONS AND CHECKS 1.1 LEGEND AND FORMULAE DESCRIPTION FORMULA DOOR CLEAR HEIGHT DOOR CLEAR WIDTH OVERALL OPERATOR WIDTH SLIDING LEAF HEIGHT HM=HL FIXED LEAF HEIGHT HF=HL SLIDING LEAF WIDTH...

  • Page 5: Door Dimensions

    DMJOIC201EN - v2 VISIO C2H OPERATOR - INSTALLATION MANUAL 1.3 DOOR DIMENSIONS 1.3.1 Door width. Fig. Opening width PL = (AH-Dt)/2 Clear width AT = PL/2+Dt Overall operator width AM = PL/2+Sp Sliding leaf width AF = (AH-PL)/2 Fixed leaf width Fig.
  • Page 6 DMJOIC201EN - v2 VISIO C2H OPERATOR - INSTALLATION MANUAL 1.3.2 Door height. 1.6.1 Fig. Fig. Ceiling line Door clear height HT = HL + 125 Overall door height HR = HT + (5min) Minimum ceiling height HV = HL + 28 Beam height Fig.
  • Page 7 DMJOIC201EN - v2 VISIO C2H OPERATOR - INSTALLATION MANUAL 2. PREPARE MAIN PROFILE 2.1 DRILLING Space drill holes Fig. Fig. Fig. Tools Drill bit no.9 Drill hole size Ø9 along main profile as shown in diagrams. Fig. Fig. 2.2 TARCK PROFILE ASSEMBLY 2.2.1 Introduce.
  • Page 8 DMJOIC201EN - v2 VISIO C2H OPERATOR - INSTALLATION MANUAL 2.3 ADJUST TRACK PROFILE Fig. Use a previously assembled trolley as shown in the diagram. Fig. Adjust the top wheel as shown in diagram. Fig. Introduce the trolley on the top stile as shown in diagram.
  • Page 9 DMJOIC201EN - v2 VISIO C2H OPERATOR - INSTALLATION MANUAL 3. MAIN PROFILE AND TOP LINTEL ASSEMBLY 3.1 PROFILES LAYOUT Set out the sections as shown in the diagram. Fig. Fig. 3.2 TOP LINTEL ASSEMBLY 3.2.1 Mark and screw. Fig. Fig.
  • Page 10 DMJOIC201EN - v2 VISIO C2H OPERATOR - INSTALLATION MANUAL 3.3 MAIN PROFILE ASSEMBLY 3.3.1 Introduce and mark. Fig. Drill holes in the beam using the main profile as template, as shown in the diagrams. Fig. Fig. Fig. 3.3.2 Drill. Fig.
  • Page 11 DMJOIC201EN - v2 VISIO C2H OPERATOR - INSTALLATION MANUAL 4. BOTTOM LINTEL PREPARATION 4.1 MOUNT LOWER LINTEL 4.1.1 Cut. Fig. Fig. Fig. Cut the bottom lintel as shown in the diagram. 4.1.2 Drill. Tools Fig. Drill bit no. 8’5/5 Drill sections A,A’, as shown in the diagram.
  • Page 12 DMJOIC201EN - v2 VISIO C2H OPERATOR - INSTALLATION MANUAL 4.1.3 Screw. Fig. Nuts & bolts DIN6923 M8 Screw the bottom lintel to the fixed leaves as shown in the diagrams. Fig. Leave 40mm in the PL part of the door leaves.
  • Page 13 DMJOIC201EN - v2 VISIO C2H OPERATOR - INSTALLATION MANUAL 5. FIXED LEAVES / BOTTOM LINTEL (PL) ASSEMBLY 5.1 MOUNT FIXED LEAVES 5.1.1 Drill. Tools Nuts & bolts Nuts & bolts Mark and drill the floor on the inside of the AT in accordance with dimensions.
  • Page 14 DMJOIC201EN - v2 VISIO C2H OPERATOR - INSTALLATION MANUAL 5.1.2 Position fixed leaves. Position the fi xed leaves as shown in the diagrams. Fig. 5.3/5.4/5.5 Fig. Fig. Fig. 5.1.3 Check for plumb. Check door leaves (PL) are parallel throughout the clear height.
  • Page 15 DMJOIC201EN - v2 VISIO C2H OPERATOR - INSTALLATION MANUAL 5.1.4 Screw. Nuts & bolts Screw (x3) fi xed leaves to top lintel. Fig. Fig. D-7504N 4,2x16 Fig. Fig. 5.2 BOTTOM LINTEL (PL) ASSEMBLY 5.2.1 Screw. Screw (x3) bottom lintel (PL) to top lintel.
  • Page 16 DMJOIC201EN - v2 VISIO C2H OPERATOR - INSTALLATION MANUAL 6. LATERAL STOPS / LOCK ASSEMBLY 6.1 LATERAL STOPS ASSEMBLY 6.1.1 Insert nuts into beam. Insert 4 nuts distributed in the AT as shown in the diagram. Fig. Insert the nuts in the bottom channel of the main profile.
  • Page 17 DMJOIC201EN - v2 VISIO C2H OPERATOR - INSTALLATION MANUAL 6.2 CENTRAL LOCK ASSEMBLY Fig. Fig. Fig. Introduce lock and screws/nuts into centre of main profile. Fig. Position the lock at AT/2. Fig. Fig. Screw nuts inside channel. Nuts & bolts Nuts &...
  • Page 18 DMJOIC201EN - v2 VISIO C2H OPERATOR - INSTALLATION MANUAL 7. DRAGGING TROLLEYS / ARMS ASSEMBLY 7.1 TROLLEYS ASSEMBLY 7.1.1 Distribute the trolleys in the operator Fig. Fig. See the distribution of trolleys as per the scheme shown in the diagram.
  • Page 19 DMJOIC201EN - v2 VISIO C2H OPERATOR - INSTALLATION MANUAL 7.1.3 Lock hooks assembly. Fig. Tools Nuts & bolts Fig. DIN7380 6x10 DIN6798 M-6 Attach lock hooks to trolleys 2-3 as shown in the diagrams. Fig. Fig. 7.2 INTRODUCE TROLLEYS INTO MAIN PROFILE Introduce the 4 trolleys into the main profile as shown in the diagrams.
  • Page 20 DMJOIC201EN - v2 VISIO C2H OPERATOR - INSTALLATION MANUAL 7.3 DRAGGING ARMS ASSEMBLY 7.3.1 Anchors and arms assembly. 7.10.1 Nuts & bolts Nuts & bolts Fig. 7.10 DIN7380 6x8 DIN6798 M-6 Screw anchors to arms as shown 7.10.2 in diagram.
  • Page 21 DMJOIC201EN - v2 VISIO C2H OPERATOR - INSTALLATION MANUAL 7.3.2 Arms on trolleys assembly (continuation). Fig. 7.12 Nuts & bolts Nuts & bolts DIN7380 6x10 DIN6798 M-6 Screw left hand arm to left hand trolley (2) as shown in the diagram.
  • Page 22 DMJOIC201EN - v2 VISIO C2H OPERATOR - INSTALLATION MANUAL 8. GUIDES AND SLIDING LEAVES ASSEMBLY 8.1 FLOOR GUIDES ASSEMBLY 8.1.1 Mark and drill the floor. Fig. Floor guides position. (On both sides of the PL) Fig. Mark the fl oor, using the metal guide as a template.
  • Page 23 DMJOIC201EN - v2 VISIO C2H OPERATOR - INSTALLATION MANUAL 8.1.2 Screw in the guides. Fig. Fig. Insert rawlplugs intro the holes which have been drilled. Assemble guide as shown in the diagrams. Fig. Fig. 8.2 SLIDING LEAVES ASSEMBLY. 8.2.1 Insert the screws into the square-section bars.
  • Page 24 DMJOIC201EN - v2 VISIO C2H OPERATOR - INSTALLATION MANUAL 8.2.2 Leaves hanger. Fig. Fig. Fig. 8.10 Support the leaf on the guide as shown in Fig. the diagram. Insert the screws so they hang from the trolleys as shown in the diagrams.
  • Page 25 DMJOIC201EN - v2 VISIO C2H OPERATOR - INSTALLATION MANUAL 8.2.3 Adjust moving leaves. Fig. 8.14 Fig. 8.13 Spacing between frame as per the table. Adjust depth of moving leaves as shown in the diagram. Fig. 8.12 To adjust height of moving leaves: Fig.

  • Page 26: Drive Unit Assembly

    DMJOIC201EN - v2 VISIO C2H OPERATOR - INSTALLATION MANUAL 9. DRIVE UNIT / BELT ANCHOR ASSEMBLY 9.1 DRIVE UNIT ASSEMBLY 9.1.1 Insert nuts in main profile. Fig. Insert nuts in main profile as shown in the diagrams. Fig. Fig. Fig.
  • Page 27 DMJOIC201EN - v2 VISIO C2H OPERATOR - INSTALLATION MANUAL 9.2 BELT ANCHOR ASSEMBLY Fig. White mark Left arm Fig. Find the white mark in the belt which indicates where to locate the anchors, as shown in the diagrams. Fig. Attach the top left arm and the bottom right arm to the belt as shown in the diagrams.
  • Page 28 DMJOIC201EN - v2 VISIO C2H OPERATOR - INSTALLATION MANUAL 9a. ANEXO: DRIVE UNIT EXTENSION ASSEMBLY (PL > 2000mm) 9a.1 DRIVE UNIT EXTENSION ASSEMBLY 9a.1.1 Drive unit pre-assembly. Fig. Unscrew the left hand motor from the drive unit and screw it onto the extension plate, as shown in the diagram.

  • Page 29: Belt Length

    DMJOIC201EN - v2 VISIO C2H OPERATOR - INSTALLATION MANUAL 9a.2 BELT ASSEMBLY Cut the belt as shown in the diagram. Fig. 9.12 Fig. 9.15 See table for belt length. BELT LENGTH (see table) Place the anchors along the belt as shown in the diagram.

  • Page 30: Cover Assembly

    DMJOIC201EN - v2 VISIO C2H OPERATOR - INSTALLATION MANUAL 10. COVER ASSEMBLY 10.1 BOTTOM AND FRONT COVER PRE-ASSEMBLY Fig. Fig. 10.1 10.2 Assemble bottom and front cover as shown in diagrams. Fig. 10.1 Fig. 10.2 Fig. 10.3 10.2 BRACKETS 10.2.1 Insert nuts.

  • Page 31: Covers Assembly

    DMJOIC201EN - v2 VISIO C2H OPERATOR - INSTALLATION MANUAL 10.2.2 Brackets assembly. Fig. Fig. 10.6 10.7 Nuts & bolts Nuts & bolts Nuts & bolts Mount brackets (x4) onto the main profile as shown in the diagrams. DIN6798 M-6 DIN7380 6x14 Spring Nut M6 Fig.
  • Page 32 DMJOIC201EN - v2 VISIO C2H OPERATOR - INSTALLATION MANUAL 10.3.3 Bottom and front cover assembly Assemble bottom cover onto brackets as shown in the diagram. Fig. 10.12 Fix bottom cover as shown in the diagram. Fig. 10.13 Close front cover as shown in the diagram.
  • Page 33 DMJOIC201EN - v2 VISIO C2H OPERATOR - INSTALLATION MANUAL 10.3.4 Side caps assembly. Fig. 10.15 10.15.1 10.15.2 10.15.1 10.15.2 Nuts & bolts Screw end covers to both ends of the cover as shown in the diagrams. Fig. 10.15 10.15.2 10.15.1 4.2X13...
  • Page 34 DMJOIC201EN - v2 VISIO C2H OPERATOR - INSTALLATION MANUAL 11. MANUAL UNLOCK ASSEMBLY 11.1 REMOVE FRONT AND BOTTOM COVER Fig. 11.1 Fig. 11.2 Open front cover. Fig. 11.1 Release the bracket attachments for the bottom cover. Fig. 11.2 Fig. 11.3 Remove the bottom cover and the front cover.
  • Page 35 DMJOIC201EN - v2 VISIO C2H OPERATOR - INSTALLATION MANUAL 11.3 MANUAL UNLOCK ASEMBLY 11.3.1 Lock attachment piece assembly. Fig. 11.6 Fig. 11.7 11.7.1 11.7.1 Nuts & bolts Nuts & bolts DIN7380 6x10 DIN6798 M-6 Screw the piece to the lock as shown in the diagram.
  • Page 36 DMJOIC201EN - v2 VISIO C2H OPERATOR - INSTALLATION MANUAL 11.3.3 Rack set assembly. Fig. 11.9 11.9.1 11.9.1 Fig. 11.10 Insert the rack set onto the bottom cover as shown in the diagrams. Fig. 11.9 Fig. 11.10 Ensure that the bolt rests in the slot and is centred with respect to the hole in the bottom cover as shown in the diagram.
  • Page 37 DMJOIC201EN - v2 VISIO C2H OPERATOR - INSTALLATION MANUAL 11.3.5 Toothed cylinder assembly Fig. Fig. 11.13 11.14 Insert the toothed cylinder as shown in the diagrams. Fig. 11.13 Fig. 11.14 Push it in all the way until it snaps into place.

  • Page 38: Main Wiring Diagram

    DMJOIC201EN - v2 VISIO C2H OPERATOR - INSTALLATION MANUAL 12. WIRING 12.1 MAIN WIRING DIAGRAM Fire alarm connection Outside key switch Side screen sensor Photocells Optima selector Emergency push button Receiver (green) Emitter (yellow) Smart selector Manusa Planar Radar Manusa infrared sensor...

  • Page 39: General Connections

    DMJOIC201EN - v2 VISIO C2H OPERATOR - INSTALLATION MANUAL 12.2 GENERAL CONNECTIONS Single-phase = 220V - 240V ±6% The electrical installation must incorporate a 6A thermomagnetic switch and the cable sections should respect the following measurements. Power-supply Fire alarm signal Optima selector - Corrugated Ø16mm tube.
  • Page 40 DMJOIC201EN - v2 VISIO C2H OPERATOR - INSTALLATION MANUAL C. Using the Smart selector 1. Check that leaves are in closed position before running the self-adjustment procedure. 2. Press button 4 repeatedly while keeping button 2 pressed to access the technical service functions.
