Using the Endpoint to Perform Single Point Recording

Start Recording

When the RSS 2000 is called by the endpoint to establish H.323 connection, the main menu screen sent by the
RSS 2000 will be seen on the endpoint, as it is shown in Figure 2-1. The speed of the menu screen is 128 kbps
and 3 frames per second.

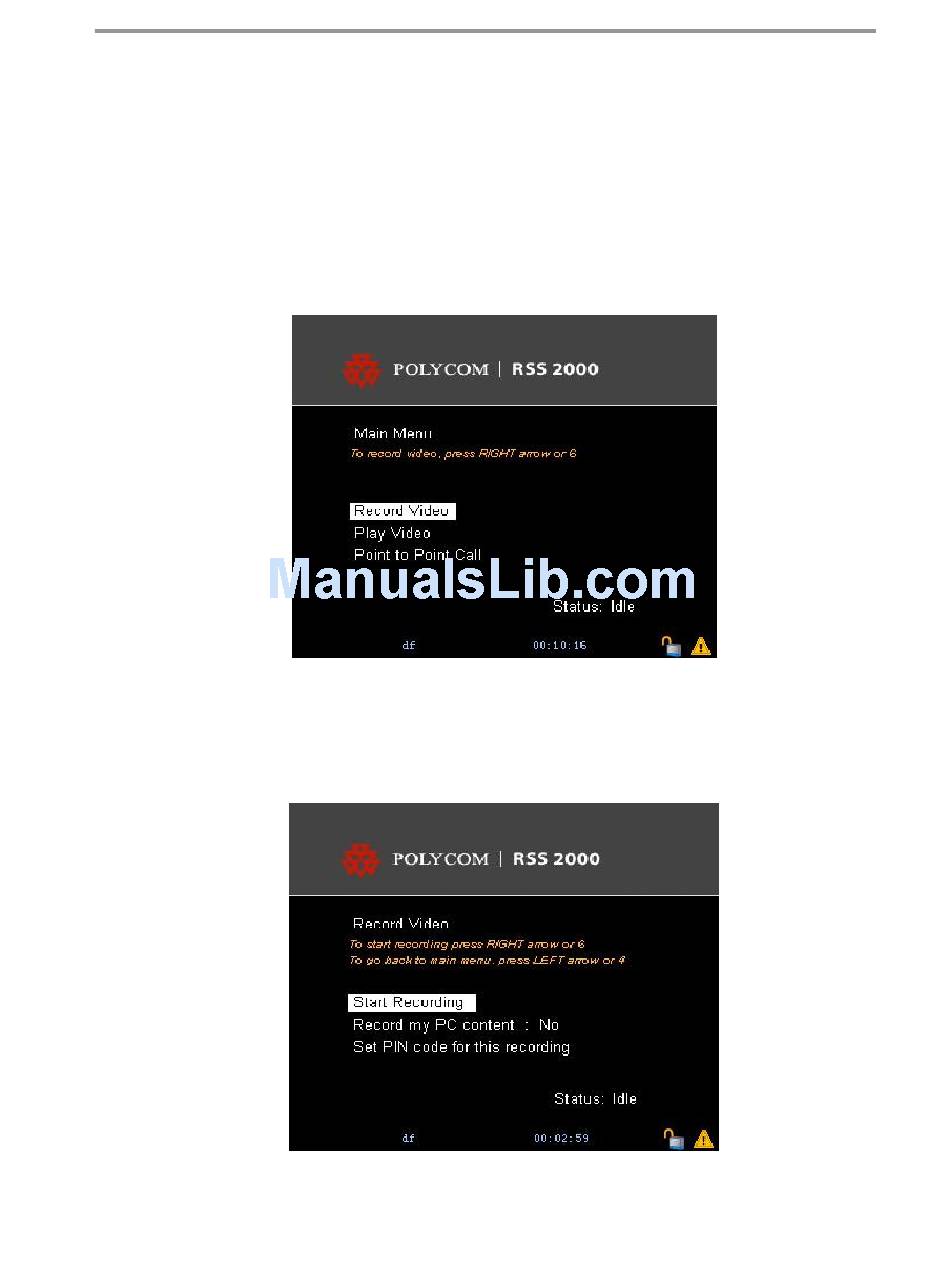

Figure 2-1 the Main menu
In the screen shown in Figure 2-1, select Archive Recording and make sure to enter the Start Recording menu
through the remote control as shown in Figure 2-2. You are then asked to choose if to perform dual video
recording or to set the PIN code for the recorded archive.
Figure 2-2 Start Recording
