Infrico Lab Care Plus ULF70086 Service Manual page 25

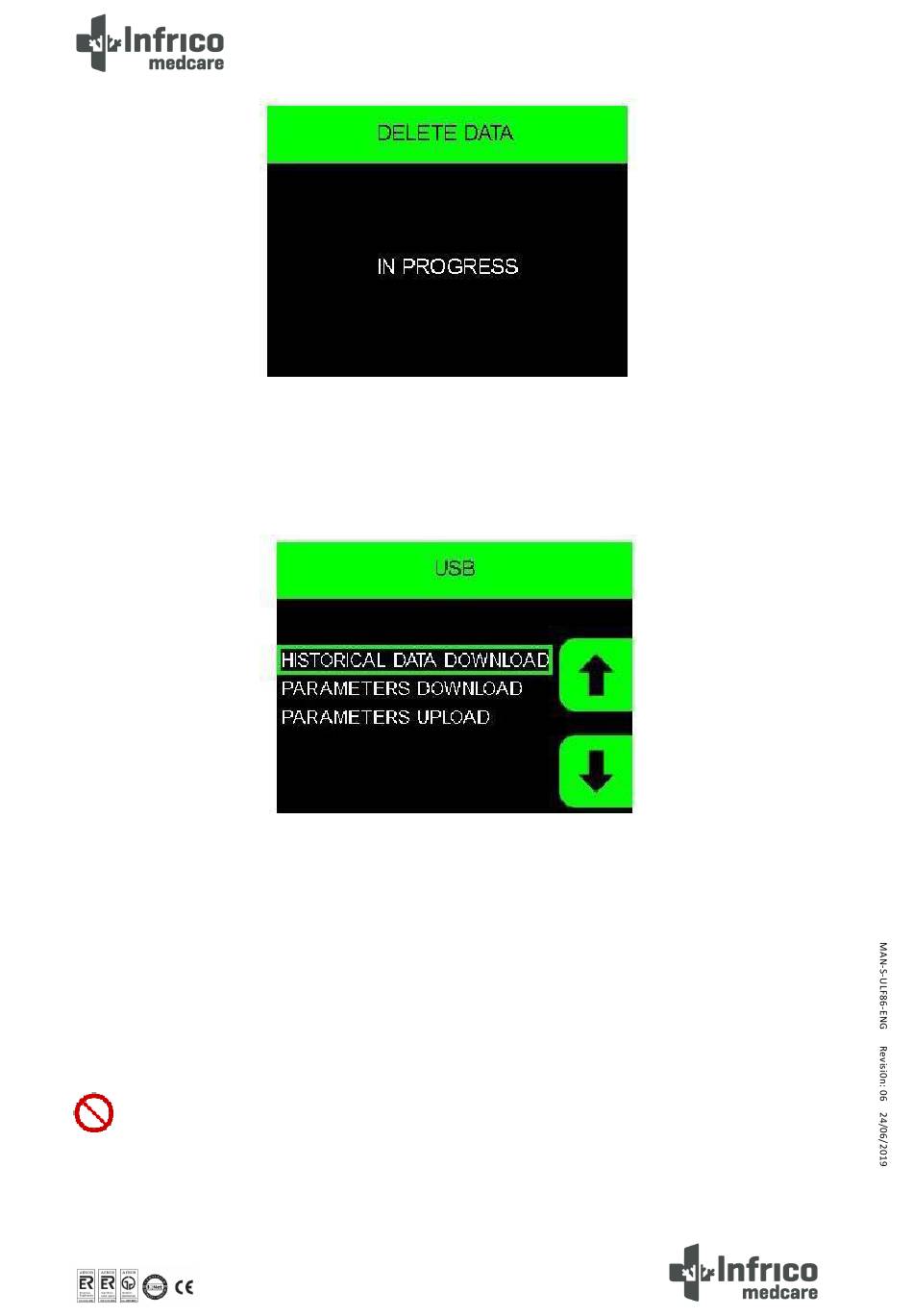

To download the recorder data from the device and to download/upload the configuration parameters,
insert the USB key into the USB port on the keyboard while visualizing the main screen. The following screen will
be displayed.
Select the desired option and press the SET key.
If you wish to download historical records, pressing the SET key will prompt you to indicate the date
range you wish to download. The file created will have a .csv extension and can be opened using MS Office or
any other suitable software.
Once the operation is completed, wait until the message indicating that it is safe to remove the key is
displayed.
PROHIBITION! The USB connector shall be used only to connect a pen-drive for programming and
data collection tasks.
Service Manual and Warranty
24
