6.4

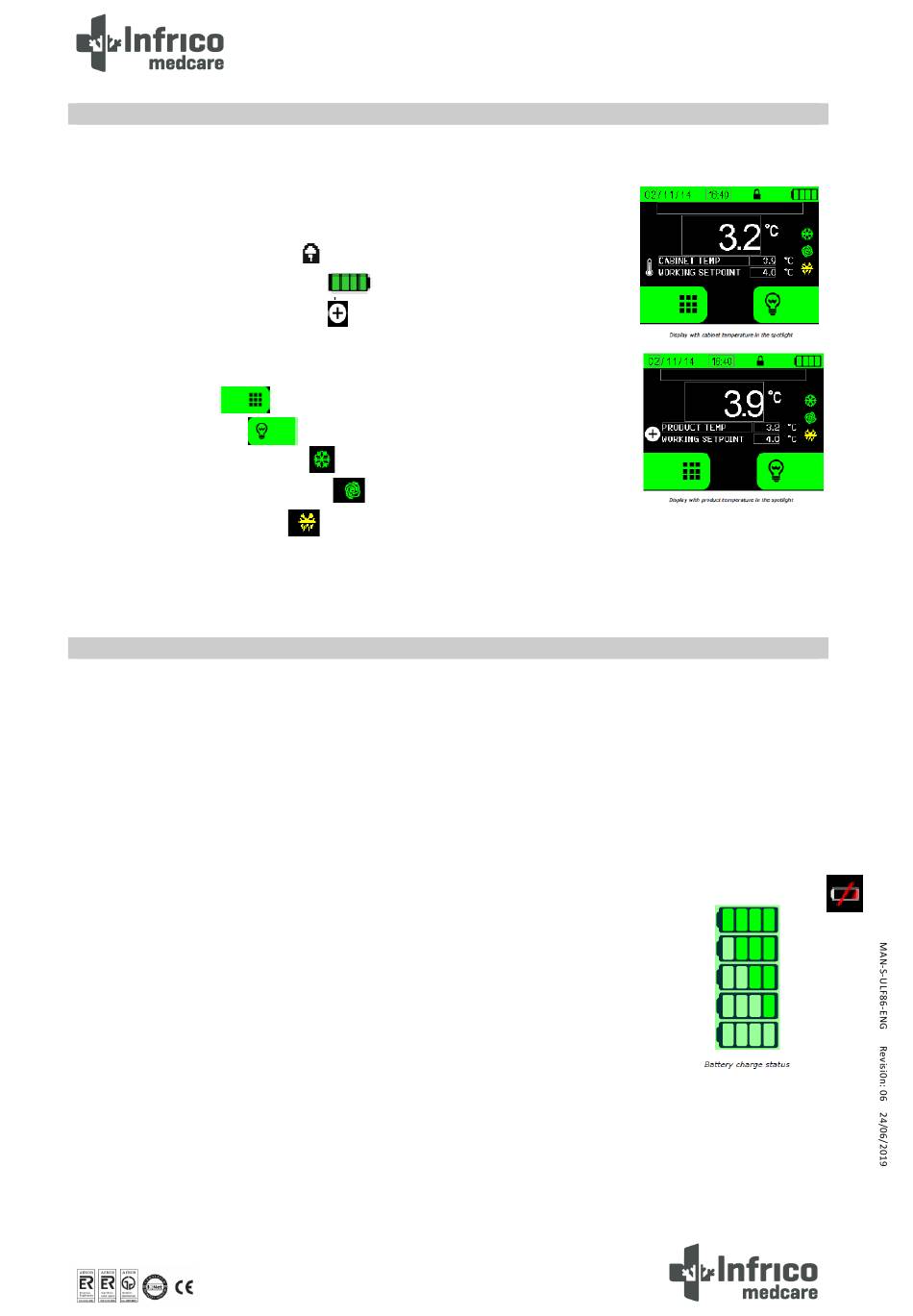

The Display screen

When the device is turned on during normal operation, the following
information will be displayed on the home screen:
- Time / Date
- Keyboard lock icon
- Battery charge status
- Product temperature
- Set Point
- Status icons
- Menu key
- Lighting key
- Compressor ON icon
- Evaporator Fan ON icon
- Defrost ON icon
If the device is turned off, only the date and time will be displayed.
6.5

Battery Status

The battery charge indicator is always shown at the top-right corner of the screen. When the battery is
fully charged (digital input of the battery closed), all the lines on the indicator will turn green; while
recharging (digital input of the battery open) the number of green lines of the indicator will gradually
increase. In the event of power failure, the meter will display the battery charge and the lines on such
indicator will decrease over time. Each line that disappears corresponds to one quarter of a battery
charge used to supply the controller.
When the battery voltage is disconnected due to different circumstances, the following icon will
appear on the screen. Under such circumstances, follow these steps:
- Disconnect the battery
- Turn off the device and wait for a few seconds
- Reconnect the device to the appropriate voltage
