ASSEMBLY INSTRUCTIONS
2

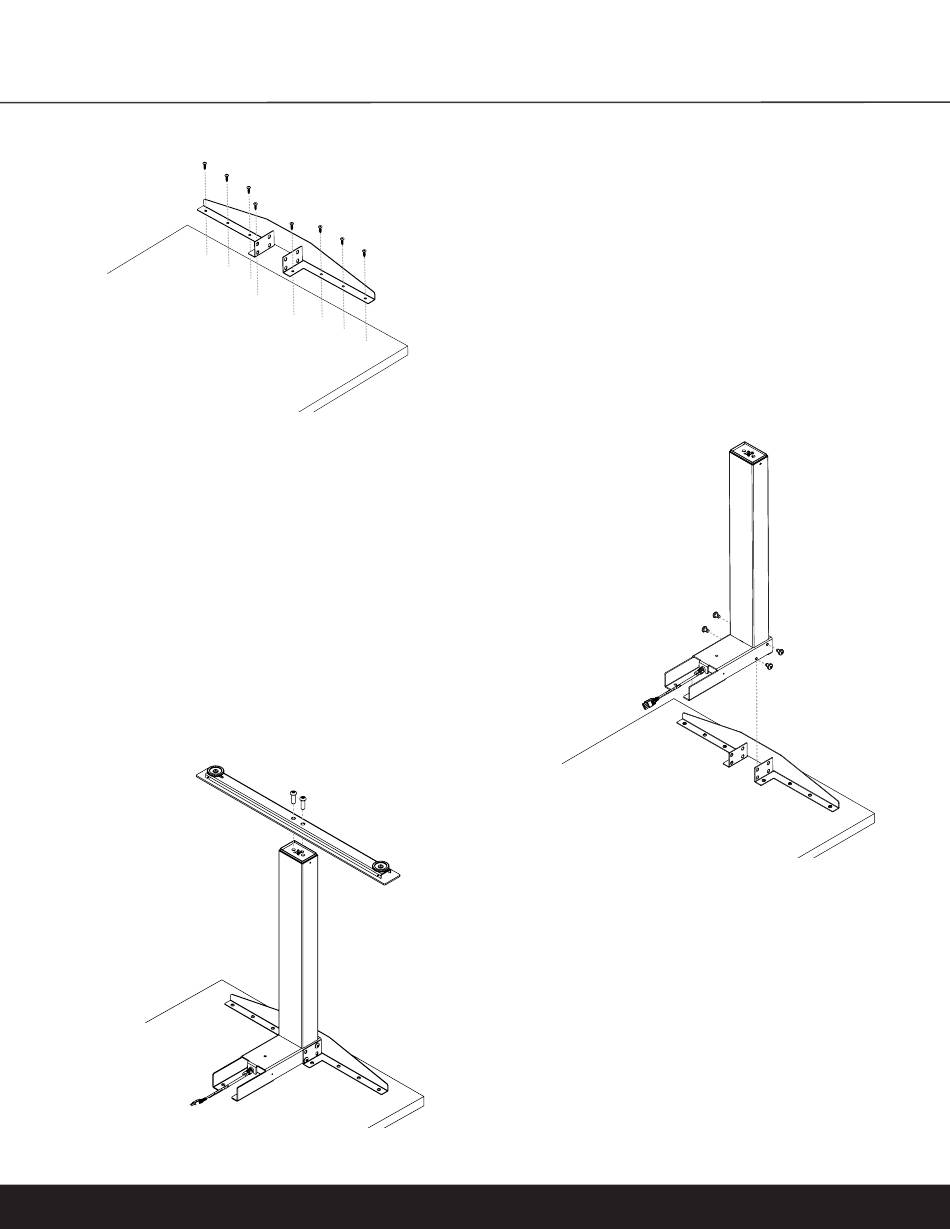

ASSEMBLE THE BEAM AND COLUMN TO THE TOP SUPPORT
Align the independent beam to the top support. Assemble using the
M8x1.25 x 12mm length screws (4 per column) and a T40 Torx driver.
Be aware that the mounting holes may not be tapped. As they are inserted,
the provided M8x1.25 x 12mm length screws will form their own fastening
threads if none are already present. An average fastening torque of
8Nm (6 lbs-ft) will be required to initially engage the screw in the hole.
The maximum tightening torque for these screws is 15Nm (11 lbs-ft).
Repeat as necessary for remaining columns.
1
FASTEN THE TOP SUPPORT ONTO THE TABLE TOP
Be sure top supports are mounted 1.5" from edge of
work surface.
3
ASSEMBLE THE FOOT TO THE COLUMN
Assemble using the M10x1.5 x 30mm length screws (2 per
column). The maximum tightening torque for these screws
is 11Nm (8.1ft-lbs). In the absence of a torque wrench,
use fingers to twist the bolts into position. Then apply an
additional ¼ (90°) turn to each bolt with an M6 Hex drive.
Note, each bolt should be tightened once. Do not retorque
the first bolt after torquing the last
