ASSEMBLY INSTRUCTIONS
5

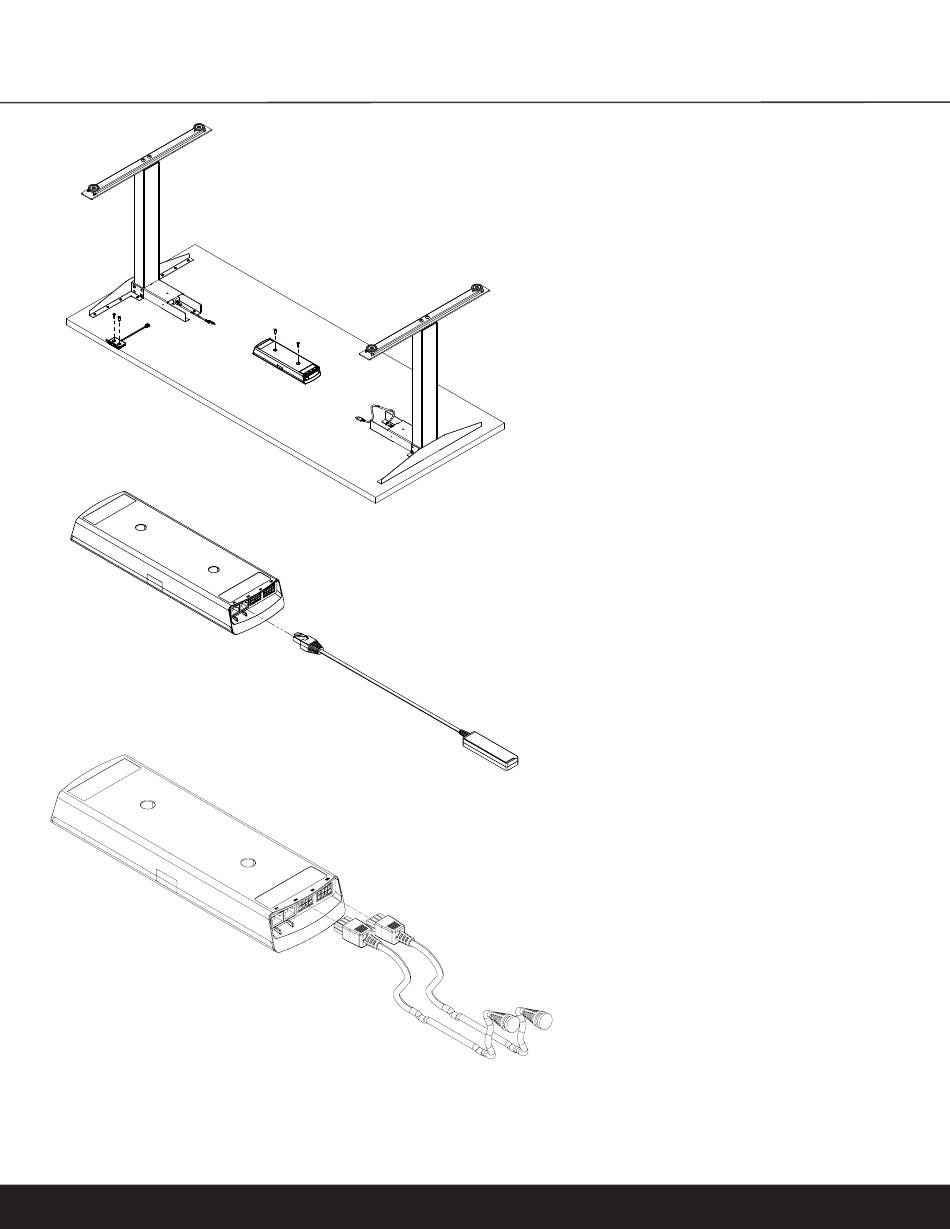

FASTEN THE CONTROL BOX AND
HANDSWITCH TO THE TABLE TOP
Make sure the control box and handswitch are
fastened in a location where all the cables will
connect without being in tension. Be sure to use
approved screws per the table top supplier.
6A
CONNECT THE COLLISION
SENSOR TO THE CONTROL BOX
INSTRUCTIONS (OPTIONAL)
(The sensor can be connected to either the D1
or D2 port of the control box)
6B
CONNECT THE MOTOR CABLES
TO THE CONTROL BOX
The motor cable plug-connection has to
click into place.
Connections to the control box:
M1-M2 = Connectors for the columns
D1 or D2 = Connectors for the handset
