Assembly Instructions
When using a Humanscale work surface
with pre-drilled metal inserts

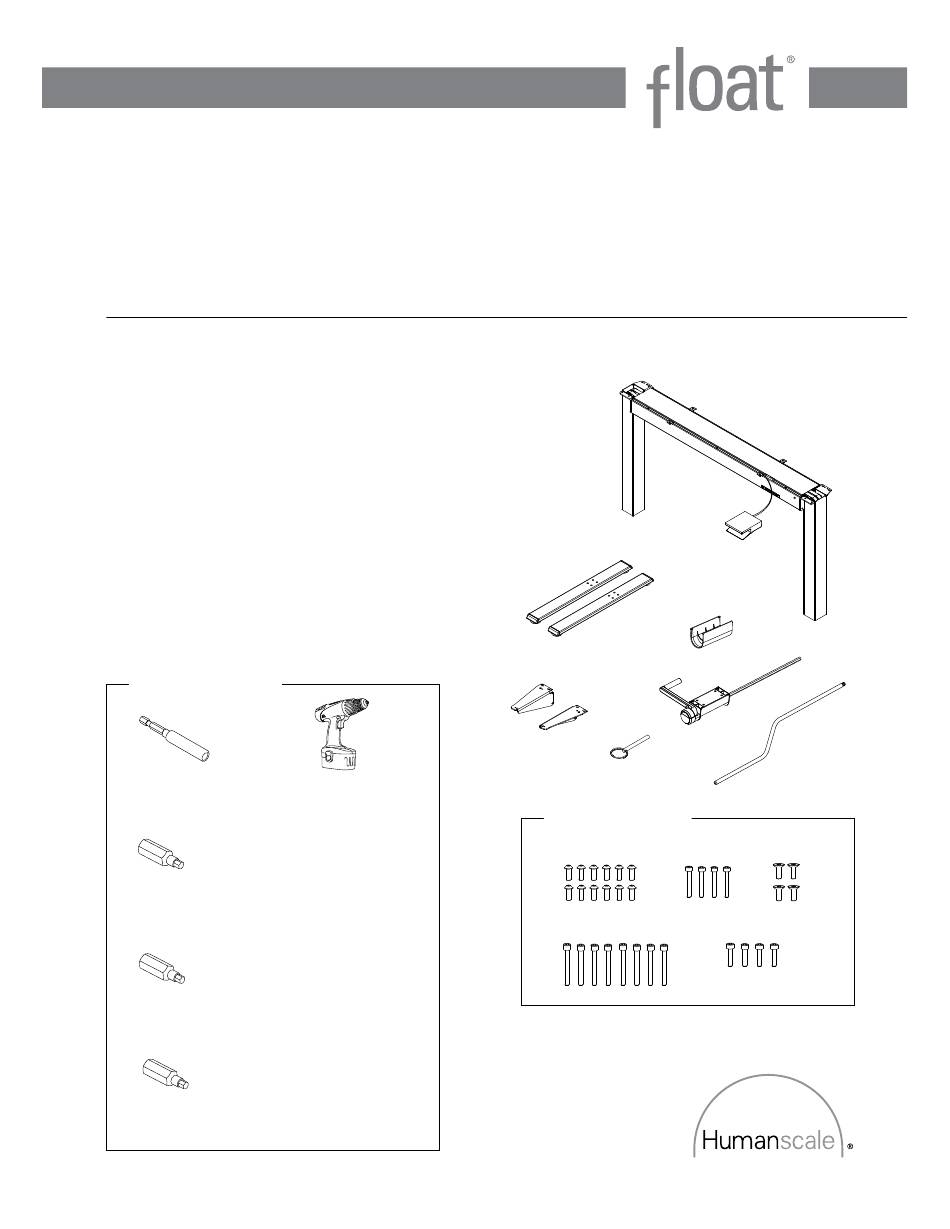

Parts Required

A.
(1) Float Table Base
B.
(2) Float Wing Brackets
C.
(2) Float Feet
D.
(1) Mounted or Removable Spring Tension Adjuster
E.
(1) Mounted Spring Tension Adjuster Plastic Housing
F.
(12) M6 Short Machine Screws
G.
(4) M5 Long Machine Screws
H.
(4) M6 Short Flat Head Machine Screws
I.
(8) M8 Long Machine Screws
J.
(4) M5 Short Machine Screws
K.
(1) Safety Leg Pin

Tools Required

Extension Hex Drive
5/32 " Hex Drive
3/16 " Hex Drive
3 mm Hex Drive
Power Drill
1
A
C
B
K
Hardware Bag
F
G
I
J
E
D
H
