Path Chair
Disassembly Instructions
Tools Required
Safety Glasses
Flat Screwdriver
Prybar

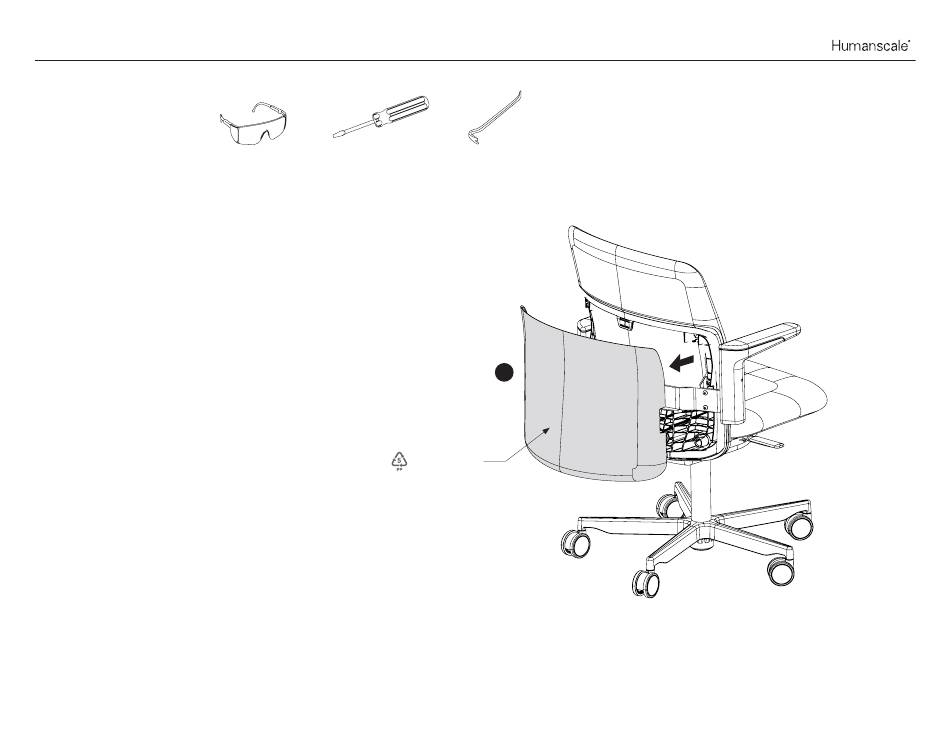

Remove Cosmetic Back
Step 1
Pry rearwards on lower corners with fingers or with
a flat bladed tool such as screwdriver or prybar.
1
2
Polypropylene
Some components may not be recyclable in your area.
REV-00

Advertisement

loading
Need help?

Need help?

Do you have a question about the Path Chair and is the answer not in the manual?

Questions and answers

Related Manuals for Humanscale Path Chair

Summary of Contents for Humanscale Path Chair

  • Page 1 Path Chair Disassembly Instructions Tools Required Safety Glasses Flat Screwdriver Prybar Remove Cosmetic Back Step 1 Pry rearwards on lower corners with fingers or with a flat bladed tool such as screwdriver or prybar. Polypropylene Some components may not be recyclable in your area.
  • Page 2 Path Chair Disassembly Instructions Tools Required Safety Glasses 4mm Allen Wrench Hammer Remove Arm Assembly Step 1 If adjustable arms, adjust to highest position. Step 2 Set chair on its back. Step 3 Using a 4mm Allen wrench remove 2 set screws as indicated above.
  • Page 3 Path Chair Disassembly Instructions Tools Required Safety Glasses Flat Screwdriver Sheet Metal Screw Adjustable Arm Remove Arm Pad Assembly from Arm Nylon Step 1a On adjustable arm, use a flat bladed screwdriver to pry out cover as shown (will remove pin with the cover).
  • Page 4 Path Chair Disassembly Instructions Tools Required Safety Glasses Adjustable Arm Pad Components Separate Arm Pad Components Foam Step 1 On adjustable arms, the urethane skin can be peeled off and the urethane foam, removed. Structure is glass filled nylon. Note: Fixed arms have a self-skinning urethane that cannot easily be separated from the glass filled nylon structure (not pictured here).
  • Page 5 Path Chair Disassembly Instructions Tools Required Safety Glasses Steel Finish Disassembly of Adjustable Arms Step 1 With release lever engaged, lift the lever up to >TPE< remove it and arm’s inner structure from the arm housing. Step 2 Glass Filled Nylon Remove tolerance rings (2X) from inner structure.
  • Page 6 Path Chair Disassembly Instructions Tools Required Safety Glasses T-30 Torx Bit Remove Arm Steel Step 1 Using a T-30 torx bit, remove the (x6) screws holding the arm steel in place. Lift arm steel until it stops then slide (left or right) to remove screws and plate.
  • Page 7 Path Chair Disassembly Instructions Tools Required Safety Glasses Knife Scissor Remove Back Upholstery Polyester Step 1 Using a hot knife, utility knife, or scissors, cut away the fabric just outside the stapled area to separate from the back frame. Some components may not be recyclable in your area.
  • Page 8 Path Chair Disassembly Instructions Tools Required Safety Glasses Flat Screwdriver Remove Upper Back Foam from Back Polypropylene Step 1 Pry off upper back foam using a flat bladed screwdriver. Foam can be peeled off. Foam Some components may not be recyclable in your area.
  • Page 9 Path Chair Disassembly Instructions Tools Required Safety Glasses Flat Screwdriver Hammer Knife Scissor Remove Back Step 1 Using a flat bladed screwdriver, pry the snap (indicated Polypropylene Polyester here) upwards. The back should lift off the mechanism. It may require hitting the bottom of the component upwards, with a hammer while prying the snap.
  • Page 10 Path Chair Disassembly Instructions Tools Required Safety Glasses Flat Screwdriver Prybar Plier Needle Nose Plier Remove Seat Assembly See-through View of Seat Step 1 Pry off seat upholstery from back corners using flat bladed screwdriver or prybar. Note: Location of clips identified with arrows.
  • Page 11 Path Chair Disassembly Instructions Tools Required Safety Glasses Knife Scissor Remove Seat Upholstery and Foam Polypropylene Step 1 Using a hot knife, scissors or utility knife, cut away fabric just outside of staples. Alternatively, can pry out staples to completely remove the fabric.
  • Page 12 Path Chair Disassembly Instructions Tools Required Safety Glasses T-30 Torx Bit Remove Seat Structure Assembly Step 1 Steel Use a T-30 Torx bit to remove (4) screws and washers from seat structure. Step 2 Seat structure will lift off of the mechanism.
  • Page 13 Path Chair Disassembly Instructions Tools Required Safety Glasses Flat Screwdriver Remove Seat Slide Lock System Glass Filled Nylon Step 1 Pry up tab (identified with arrow) on seat slide release using a flat bladed screwdriver and push inward. It will pop free of the structure.
  • Page 14 Path Chair Disassembly Instructions Tools Required Safety Glasses Phillips Bit Remove Shroud from Top Plate Assembly Tabs Steel Step 1 Use a Phillips bit to remove (3) screws. Step 2 Once released - dis-engage tabs from slots they are Polypropylene contained in to finish removal.
  • Page 15 Path Chair Disassembly Instructions Tools Required Safety Glasses T-27 Torx Bit Push down here to recline Remove Top Plate Assembly Step 1 Steel Use a T-27 Torx bit to remove screw and plastic pedestal under the screw. Step 2 Glass Filled Nylon Press downwards on connector at rear of mechanism to recline it.
  • Page 16 Path Chair Disassembly Instructions Tools Required Safety Glasses Flat Screwdriver T-30 Torx Bit Hammer Steel Complete Dis-assembly of top plate Glass Filled Nylon Step 1 Glide Use a T-30 Torx bit to remove (2) screws from glides and remove from plate.
  • Page 17 Path Chair Disassembly Instructions Tools Required Safety Glasses Flat Screwdriver Prybar Remove Seat Height Lever Step 1 Use a prybar to remove seat slide lever. Steel rod may remain in mechanism or level and can be removed with vise from either part.
  • Page 18 Path Chair Disassembly Instructions Tools Required Safety Glasses Flat Screwdriver T-30 Torx Bit Remove Internal Components from Mechanism Step 1 Use a T-30 Torx bit to remove 7 screws from housing Steel This will allow removal of the axle cap, LH & RH seat...
  • Page 19 Path Chair Disassembly Instructions Tools Required Safety Glasses T-40 Torx Bit Remove Connector Assembly Step 1 Connector Retainer 2X Lift out Front Axle and front rollers. Step 2 Use a T-40 Torx bit to remove (2) screws holding Front Axle connector retainers in place.
  • Page 20 Path Chair Disassembly Instructions Tools Required Safety Glasses Flat Screwdriver T-30 Torx Bit Hammer Complete Disassembly of Connector Glass Filled Nylon Step 1 Use a T-30 Torx bit to remove (2) screws. Step 2 Place punch or screwdriver in access holes indicated...
  • Page 21 Path Chair Disassembly Instructions Tools Required Safety Glasses Remove Bumpers from Housing Step 1 Remove bumpers (2X) from housing. >TPE< Some components may not be recyclable in your area. REV-00...
  • Page 22 Path Chair Disassembly Instructions Tools Required Safety Glasses Hammer Separate Housing and Gas Cylinder Step 1 Using a hammer, hit bottom center of gas cylinder Base while pulling upward on base until they separate. Step 2 Use a hammer to hit the underside of housing while holding the gas cylinder until it dislodges from the gas cylinder.
  • Page 23 Path Chair Disassembly Instructions Tools Required Safety Glasses Phillips Head Screwdriver Prybar Remove Casters from Base Step 1 Orient casters to center of base. Aluminum Glass Filled Nylon Step 2 Use pry bar to remove the caster (5X) from the base.
