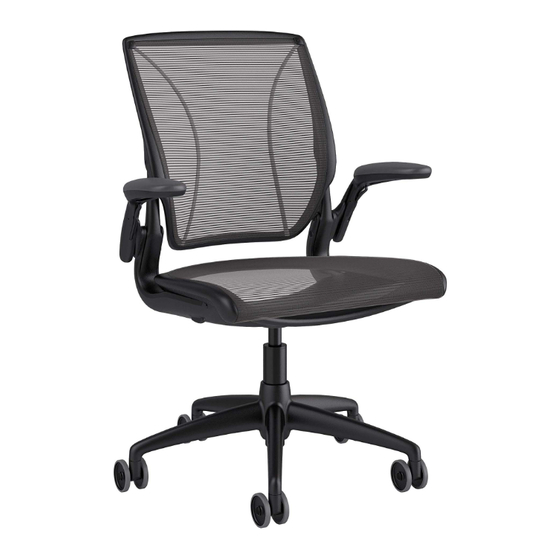

World One Task Chair
Components for Breakdown
Shells
Some components may not be recyclable in your area.
Disassembly Instructions
Frames
Base
Mechanism
Fixed Block
Gas Cylinder
Tools Required
Safety Glasses
Torx T-20, T-30 Driver
Standard Hex Key Set
Knife
Hammer
Flat Screwdriver
Phillips Screwdriver
Snap Ring Pliers
Pliers
Scissors
REV-00
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Humanscale World One Task Chair
Summary of Contents for Humanscale World One Task Chair
- Page 1 World One Task Chair Disassembly Instructions Tools Required Components for Breakdown Safety Glasses Torx T-20, T-30 Driver Standard Hex Key Set Knife Shells Frames Mechanism Fixed Block Hammer Flat Screwdriver Phillips Screwdriver Snap Ring Pliers Gas Cylinder Pliers Base Scissors Some components may not be recyclable in your area.
- Page 2 World One Task Chair Disassembly Instructions Tools Required Safety Glasses Torx T-20 Driver Knife Flat Screwdriver Pliers Hammer 1. Back Removal Remove pins attaching the Back to Flex Frame. Glass Filled Nylon Some components may not be recyclable in your area.
- Page 3 World One Task Chair Disassembly Instructions Tools Required Safety Glasses Torx T-20 Driver 2. Remove Arms Using a Torx Driver, remove the 4 screws (2 on each side) attaching the Armrests to the assembly. Elastomer Remove the armrests. Glass Filled Nylon Some components may not be recyclable in your area.
- Page 4 World One Task Chair Disassembly Instructions Tools Required Safety Glasses 3. Seat & Flex Frame Subassembly Removal Glass Filled Nylon Removing the 4 screws allows the entire chair to disengage. Remove Seat Frame and Flex Frame Subassembly by sliding forwards and upwards.
- Page 5 World One Task Chair Disassembly Instructions Tools Required Safety Glasses Standard Hex Key Set 4a. Seat Frame Removal (Adjustable Seat) Glass Filled Nylon Remove the 4 bolts underneath the Flex Frame, and separate: Flex Frame, Sliding Mechanism and Seat Frame.
- Page 6 World One Task Chair Disassembly Instructions Tools Required Safety Glasses Standard Hex Key Set 4b. Seat Frame Removal (Fixed Seat) Remove the 4 bolts underneath the Flex frame and separate: Flex frame and Seat frame (with Seat fixed position block).
- Page 7 World One Task Chair Disassembly Instructions Tools Required Safety Glasses Knife Standard Hex Key Set Scissors 5. Separate Mesh Remove the two screws holding the Seat Stretcher in the Seat Assembly. (Figure A) Using scissors, remove the mesh from both Seat and Back.
