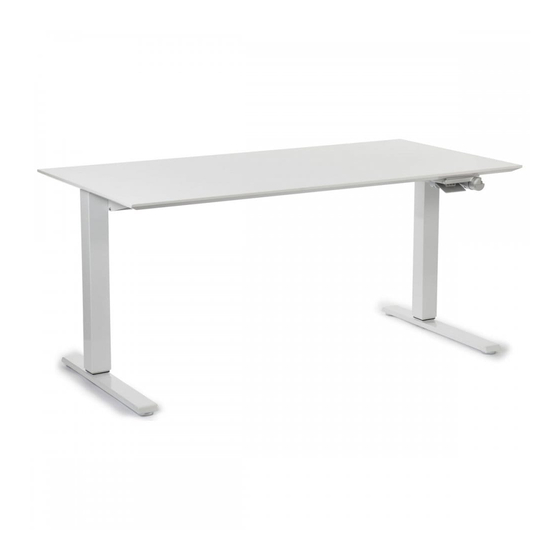

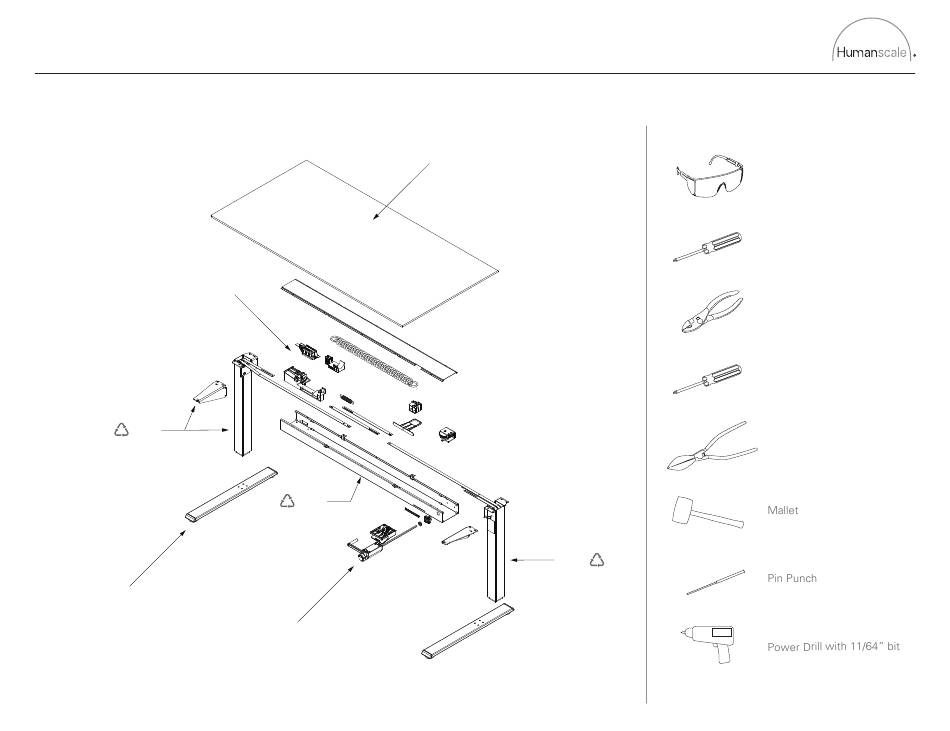

Float Table
Components for Breakdown
Inner Mechanisms
Steel
Feet
Some components may not be recyclable in your area.
Disassembly Instructions
Removing Top
Steel
Counterbalance
Mechanism
Steel
Tools Required
Safety Glasses
Phillips Screwdriver
Pliers
Torx Driver
Tin Snips
REV-00

Advertisement

loading
Need help?

Need help?

Do you have a question about the Float Table and is the answer not in the manual?

Questions and answers

Related Manuals for Humanscale Float Table

Summary of Contents for Humanscale Float Table

  • Page 1 Float Table Disassembly Instructions Components for Breakdown Tools Required Removing Top Safety Glasses Phillips Screwdriver Inner Mechanisms Pliers Torx Driver Steel Tin Snips Steel Steel Feet Counterbalance Mechanism Some components may not be recyclable in your area. REV-00...
  • Page 2 Float Table Disassembly Instructions Tools Required Safety Glasses Step 1 Bring table to highest height possible Step 2 Adjust counterbalance counter clockwise until all pre-tension is released, and handle can no longer turns easily. Load Indicator should be at “min”...
  • Page 3 Float Table Disassembly Instructions Tools Required Safety Glasses Torx Driver Flat Screwdriver Step 3 Remove screws from under table top to unfasten from legs. Remove screws from release paddle and crank. Remove table top. Page 2 Some components may not be recyclable in your area.
  • Page 4 Float Table Disassembly Instructions Tools Required Safety Glasses Step 4 Remove release and crank from table assembly Page 3 Some components may not be recyclable in your area. REV-00...
  • Page 5 Float Table Disassembly Instructions Tools Required Safety Glasses Pliers Step 5 - Release Assembly Remove pin and disassemble release assembly >POM< Steel >ABS< Page 4 Some components may not be recyclable in your area. REV-00...
  • Page 6 Float Table Disassembly Instructions Tools Required Safety Glasses Pliers Step 6 - Crank Assembly Remove all pins and completely disas- Steel >POM< semble crank assembly Steel >ABS< Aluminum Aluminum Steel Steel >ABS< >ABS< Page 5 Some components may not be recyclable in your area.
  • Page 7 Float Table Disassembly Instructions Tools Required Safety Glasses DO NOT begin step 7 until all previous steps are completed. Not following these steps can result in serious injury. Step 7 Drill out rivets on back left side Recommended drill bit size is 11/64”.
  • Page 8 Float Table Disassembly Instructions Tools Required Safety Glasses Torx Driver Step 8 Remove torque screws on top to release cover Step 9 Tip table onto it’s side to continue. Further Steel disassembly will cause legs to fail. Page 7 Some components may not be recyclable in your area.
  • Page 9 Float Table Disassembly Instructions Tools Required Tin Snips Safety Glasses Torx Driver Flat Screwdriver Step 10 Use tin snips to cut the metal bands in 3 locations (a,b,c) , as indicated. Metal bands should be cut on both sides of brake.
  • Page 10 Float Table Disassembly Instructions Tools Required Safety Glasses Torx Driver Flat Screwdriver Steel Cable Reel Step 12 A - Unscrew brake assembly B - Knock the brake assembly and cable reel loose Brake C - Remove the cables by the cable reel and the brake Page 9 Some components may not be recyclable in your area.
  • Page 11 Float Table Disassembly Instructions Tools Required Safety Glasses Standard and Metric Hex Key Set Step 13 Loosen set screw to remove torque limiter and gear box Step 14 Remove Coil Spring, brake assembly, cable reel and load indicator Steel Brake Assembly...
  • Page 12 Float Table Disassembly Instructions Tools Required Safety Glasses Pliers Step 15 - Cable Reel Aluminum Remove E clips and completely disassemble cable reel Steel Steel Aluminum Page 11 Some components may not be recyclable in your area. REV-00...
  • Page 13 Float Table Disassembly Instructions Tools Required Safety Glasses Standard and Metric Hex Key Set Step 16 - Torque Limiter Remove all screws and completely disassemble torque limiter Aluminum Steel Steel Steel >POM< Page 12 Some components may not be recyclable in your area.
  • Page 14 Float Table Disassembly Instructions Tools Required Safety Glasses Torx Driver Flat Screwdriver Standard and Metric Hex Key Set Step 17 Punch out pin with a hammer and punch to release rollers Step 18 Remove screws to separate the legs from center crossbar...
  • Page 15 Float Table Disassembly Instructions Tools Required Safety Glasses Torx Driver Flat Screwdriver Standard and Metric Hex Key Set Step 20 Remove all screws and levelers to disassemble feet. >ABS< Leveler Steel Screws Steel >ABS< Page 14 Some components may not be recyclable in your area.
