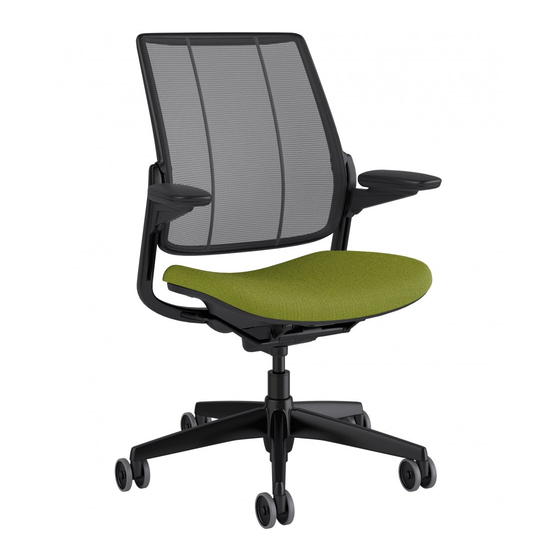

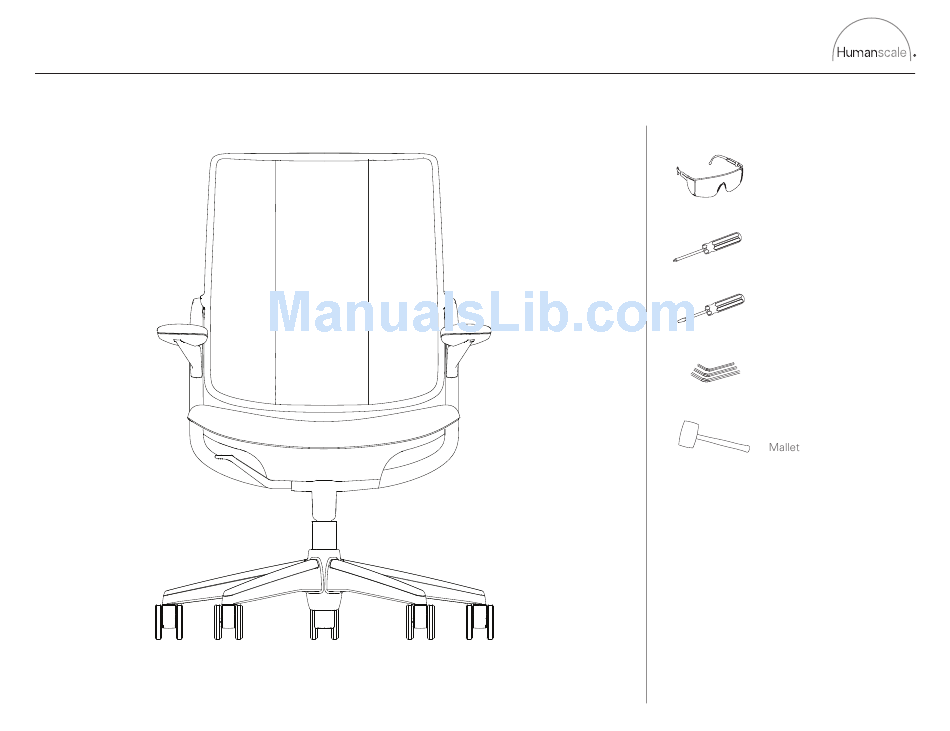

- Page 1 Diffrient Smart Chair Disassembly Instructions Tools Required Safety Glasses Phillips Screwdriver Flat Screwdriver Standard and Metric Hex Key Set Some components may not be recyclable in your area. REV-00...
- Page 2 Diffrient Smart Chair Disassembly Instructions Tools Required Safety Glasses Standard and Metric Hex Key Set Step 1 Remove the 4 bolts holding back the frame using the allen wrench Step 2 Install M4 screw in bolt (A) on each side of frame and pull on installed screw to remove pins.
- Page 3 Diffrient Smart Chair Disassembly Instructions Tools Required Safety Glasses Standard and Metric Hex Key Set Step 3 Remove the 4 bolts holding the arm covers in place using the allen wrench. This will allow removal of the arm assemblies. Aluminum Page 2 Some components may not be recyclable in your area.
- Page 4 Diffrient Smart Chair Disassembly Instructions Tools Required Safety Glasses Phillips Screwdriver Flat Screwdriver Glass Filled Nylon Step 4 Remove the 5 screws on the undersite of the seat using a phillips head screwdriver to release the seat upholstery. Step 5...
- Page 5 Diffrient Smart Chair Disassembly Instructions Tools Required Safety Glasses Standard and Metric Hex Key Set Step 6 Remove the 2 front links by pulling them out. Step 7 Remove 3 screws (A) using an allen- wrench to release the back frame.
- Page 6 Diffrient Smart Chair Disassembly Instructions Tools Required Safety Glasses Step 8 Remove the 5 casters by pulling them out by hand. Step 9 Release the has cylindar from the base by hitting it out with a hammer. Glass Filled Nylon Page 5 Some components may not be recyclable in your area.
- Page 7 Diffrient Smart Chair Disassembly Instructions Tools Required Standard and Metric Safety Glasses Hex Key Set Aluminum Step 10 Remove the gas cylinder from the mechanism by holding onto the gas cylinder (A) and hitting the mechanism (B) with a hammer.
- Page 8 Diffrient Smart Chair Disassembly Instructions Tools Required Safety Glasses Standard and Metric Flat Screwdriver Hex Key Set Step 12 Remove screw using allenwrench to release all spring components. Aluminum Step 13 Remove set screw and pull out rod. Step 14 Remove 4 screws with the allenwrench to release the internal mechanism components.
- Page 9 Diffrient Smart Chair Disassembly Instructions Tools Required Safety Glasses Phillips Screwdriver Steel Step 16 Remove 5 screws using phillips screwdriver to release rails (A) and seat slide lever (B). Talc Filled Polypropylene Page 8 Some components may not be recyclable in your area.
- Page 10 Diffrient Smart Chair Disassembly Instructions Tools Required Safety Glasses Flat Screwdriver Step 17 Remove 2 e-clips (A) using flat screwdriver and pull the 2 pins (B) out to release shutters. Steel Steel Talc Filled Polypropylene Page 9 Some components may not be recyclable in your area.
- Page 11 Diffrient Smart Chair Disassembly Instructions Tools Required Safety Glasses Standard and Metric Phillips Screwdriver Flat Screwdriver Hex Key Set Step 18 Remove the 4 screws from under the armrest to release the armpad. Step 19 Glass Filled Nylon Press trigger to slide arm out of the aluminum rail.
- Page 12 Diffrient Smart Chair Disassembly Instructions Tools Required Safety Glasses Standard and Metric Phillips Screwdriver Flat Screwdriver Hex Key Set Glass Filled Nylon Step 20 Remove all screws and completely Aluminum disassemble. Step 21 Remove screw with allenwrench to release the arm trigger.
