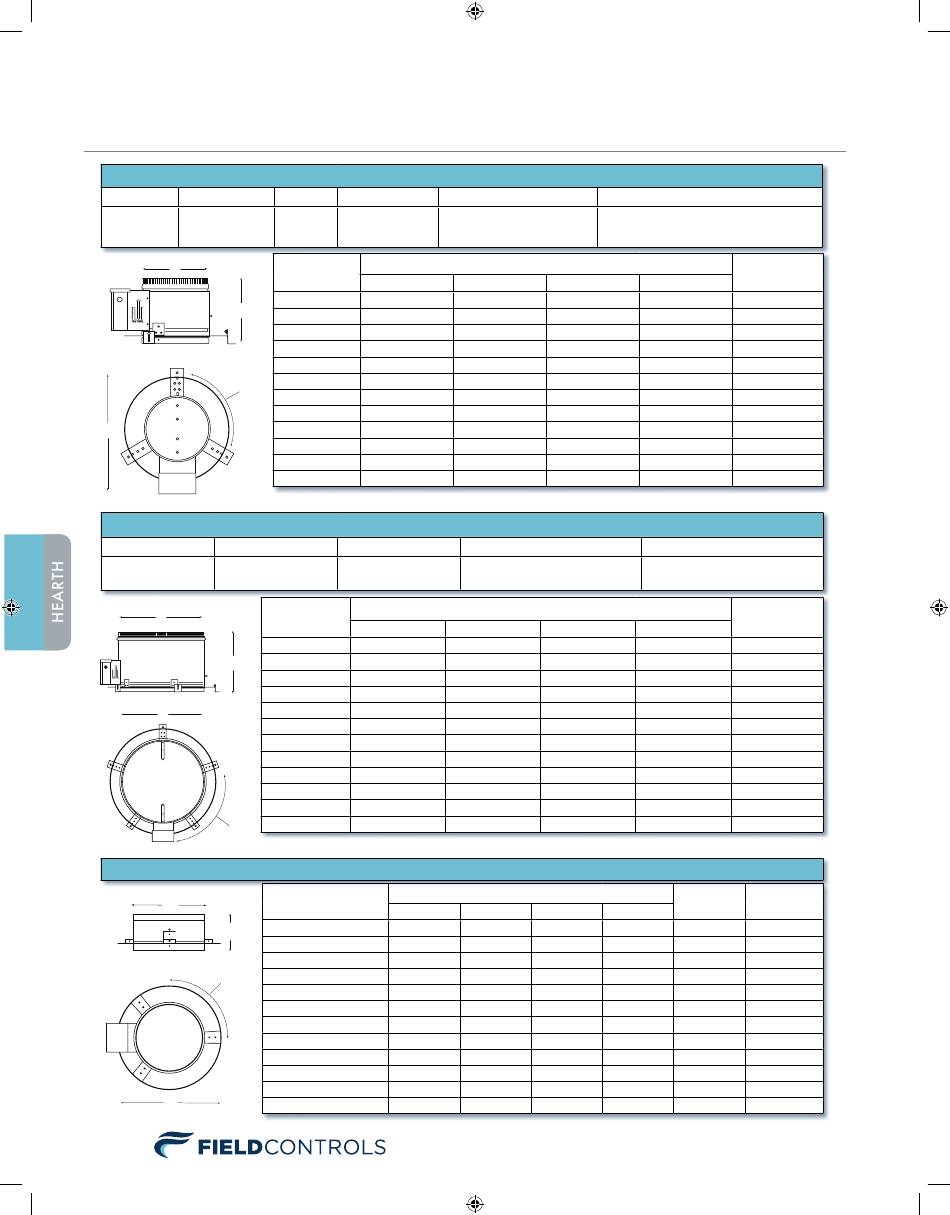

AUTOMATIC FLUE DAMPERS
SIZING AND SELECTION
VOLTAGE FREQUENCY
24 VAC 50/60 Hz
FSE Series
A
B
D
C
CONTROLLER VOLTAGE SWITCHING VOLTAGE
3.6 VDC 100-750 mVDC
FSM Series
A
B
C
D
FSE LOW PROFILE & FSM LOW PROFILE - VENT CAP REQUIRED
Low Profile
A
B
D
C
42
FSE SERIES
CURRENT MAXIMUM CURRENT
80 mA 5 A
Model
A
FSE-6 5.9
FSE-8 7.8
FSE-10 9.8
FSE-1 1 10.8
FSE-12 1 1.8
FSE-13 12.8
FSE-14 13.8
FSE-16 15.8
FSE-18 17.8
FSE-20 19.8
FSE-22 21.8
FSE-24 23.8
FSM SERIES
BATTERY LIFE
10 years
MODEL
A
FSM-6 5.9
FSM-8 7.9
FSM-10 9.9
FSM-1 1 10.9
FSM-12 1 1.9
FSM-13 12.9
FSM-14 13.9
FSM-16 15.9
FSM-18 17.9
FSM-20 19.9
FSM-22 21.9
FSM-24 23.9
MODEL
A
FSE-L6/ FSM-L6 5.9
FSE-L8/ FSM-L8 7.9
FSE-L10/ FSM-L10 9.9
FSE-L1 1/ FSM-L1 1 10.9
FSE-L12/ FSM-L12 1 1.9
FSE-L13/ FSM-L13 12.9
FSE-L14/ FSM-L14 13.9
FSE-L16/ FSM-L16 15.9
FSE-L18/ FSM-L18 17.9
FSE-L20/ FSM-L20 19.9
FSE-L22/ FSM-L22 21.9
FSE-L24/ FSM-L24 23.9
OPERATING TEMPERATURE
Controller: -40˚-140˚F
Pipe: -40˚-650˚F 30-40 seconds to close (including time delay)
Dimensions (Inches)
B C
6.0 14.5
10.5 17.0
10.5 19.0
10.5 20.0
10.5 21.0
12.5 22.0
12.5 23.0
12.5 25.0
13.5 27.0
14.5 29.0
15.5 31.0
16.5 33.0
OPERATING TEMPERATURE
Controller: -40˚-140˚F
Pipe: -40˚-650˚F
DIMENSIONS (INCHES)
B C
6.0 14.5
10.5 17.8
10.5 19.8
10.5 20.8
10.5 21.8
12.5 22.8
12.5 23.8
12.5 25.8
13.5 27.8
14.5 29.8
15.5 31.8
16.5 33.8
DIMENSIONS (INCHES)
B C D
6.0 14.5 1 1.8
6.0 16.5 13.8
6.0 18.5 15.8
6.0 19.5 16.8
6.0 21.5 17.8
6.0 22.5 18.8
6.0 23.5 19.8
6.0 25.5 21.8
6.0 27.5 23.8
6.0 29.5 25.8
6.0 31.5 27.8
6.0 33.5 29.8
Customer Service:
TIMING
7 seconds to open
Weight (lbs.)
D
1 1.8 6.0
13.8 7.8
15.8 8.9
16.8 9.4
17.8 10.0
18.8 1 1.3
19.8 12.0
21.8 13.3
23.8 15.6
25.8 17.8
27.8 20.1
29.8 22.9
TIMING
7 seconds to open
30-40 seconds to close @ 450mV
WEIGHT (LBS.)
D
1 1.8 6.0
13.8 7.8
15.8 8.9
16.8 9.4
17.8 10.0
18.8 1 1.3
19.8 12.0
21.8 13.3
23.8 15.6
25.8 17.8
27.8 20.1
29.8 22.9
WEIGHT (LBS.) CLEARANCE (IN.)
4.02 .25
4.25 1.25
5.25 2.25
5.81 2.75
6.36 3.25
6.55 3.75
7.07 4.25
8.25 5.25
9.80 6.25
1 1.25 7.25
12.35 8.25
13.75 9.25
