This kit includes a replacement assembly for the SWG and SWGII series sidewall power

venter models listed above.

NOTE: Before working on power venter, shut off electrical power to control box.

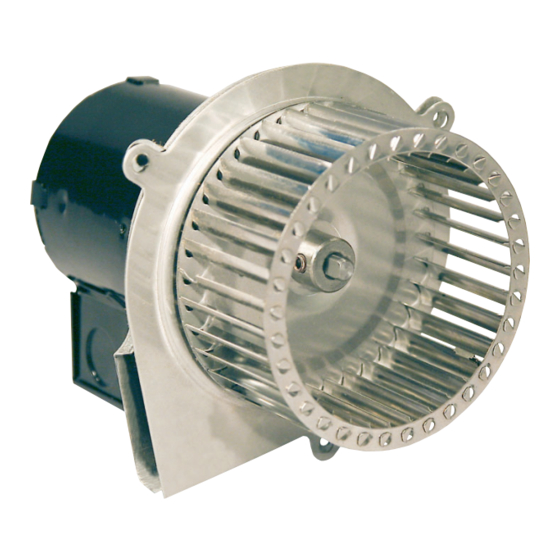

1- Replacement Motor and Blower Wheel on Mounting Bracket with Mounting Fasteners

⁄

" Hex wrench

1- Instruction Sheet

READ THESE INSTRUCTIONS CAREFULLY AND COMPLETELY BEFORE PROCEEDING WITH THE INSTALLATION.

This device MUST be installed by a qualifi ed agency in accordance with the manufacturer's installation instructions. The defi nition of

a qualifi ed agency is: any individual, fi rm, corporation or company which either in person or through a representative is engaged

in, and is responsible for, the installation and operation of HVAC appliances, who is experienced in such work, familiar with all the

precautions required, and has complied with all the requirements of the authority having jurisdiction.

Installed By:

REPAIR MOTOR KIT

Model: SWG-4HD, SWGII-4HD, SWG-5,

SWGII-5, SWG-6, SWGII-6

Please retain these instructions after installation.

Phone:

www.fi eldcontrols.com

Installation Date:

P/N 46252300 Rev I 12/21

Table of Contents

Do you have a question about the SWG-4HD and is the answer not in the manual?

Page 1 REPAIR MOTOR KIT Model: SWG-4HD, SWGII-4HD, SWG-5, SWGII-5, SWG-6, SWGII-6 This kit includes a replacement assembly for the SWG and SWGII series sidewall power venter models listed above. NOTE: Before working on power venter, shut off electrical power to control box.
Page 2 IDENTIFY WHICH MODEL POWER VENTER YOU HAVE CAUTION: Avoid applying excess pressure on the blower wheel when handling. This will cause an imbalance of the blower wheel which will result in excessive vibration and premature motor failure. REMOVAL 1. Remove motor cover. (See Figure 1) 2.
Page 3 INSTALLATION 1. Align the holes in the circular cover plate with the holes in the motor mount bracket on the motor assembly. (See Figure 3) 2. Slide the motor assembly onto the protruding threaded studs on the power venter body with the exhaust chute pointing downward, and replace the nuts securely to the threaded studs.
Page 4 This manual may be downloaded and printed from the Field Controls website (www.fi eldcontrols.com) This manual may be downloaded and printed from the Field Controls website (www.fi eldcontrols.com) WARRANTY WARRANTY For warranty information about this or any Field Controls product, visit: For warranty information about this or any Field Controls product, visit: www.fi eldcontrols.com...
