Field Controls 46252300 Instruction Sheet

Repair motor kit

Model: SWG-4HD, SWGII-4HD, SWG-5

SHUT OFF ELECTRICAL POWER TO CONTROL BOX

This kit includes a replacement motor assembly for the SWG and SWGII series sidewall power venter

models listed above.

TEMS INCLUDED

REPAIR MOTOR KIT

SWGII-5, SWG-6, SWGII-6

BEFORE WORKING ON POWER VENTER,

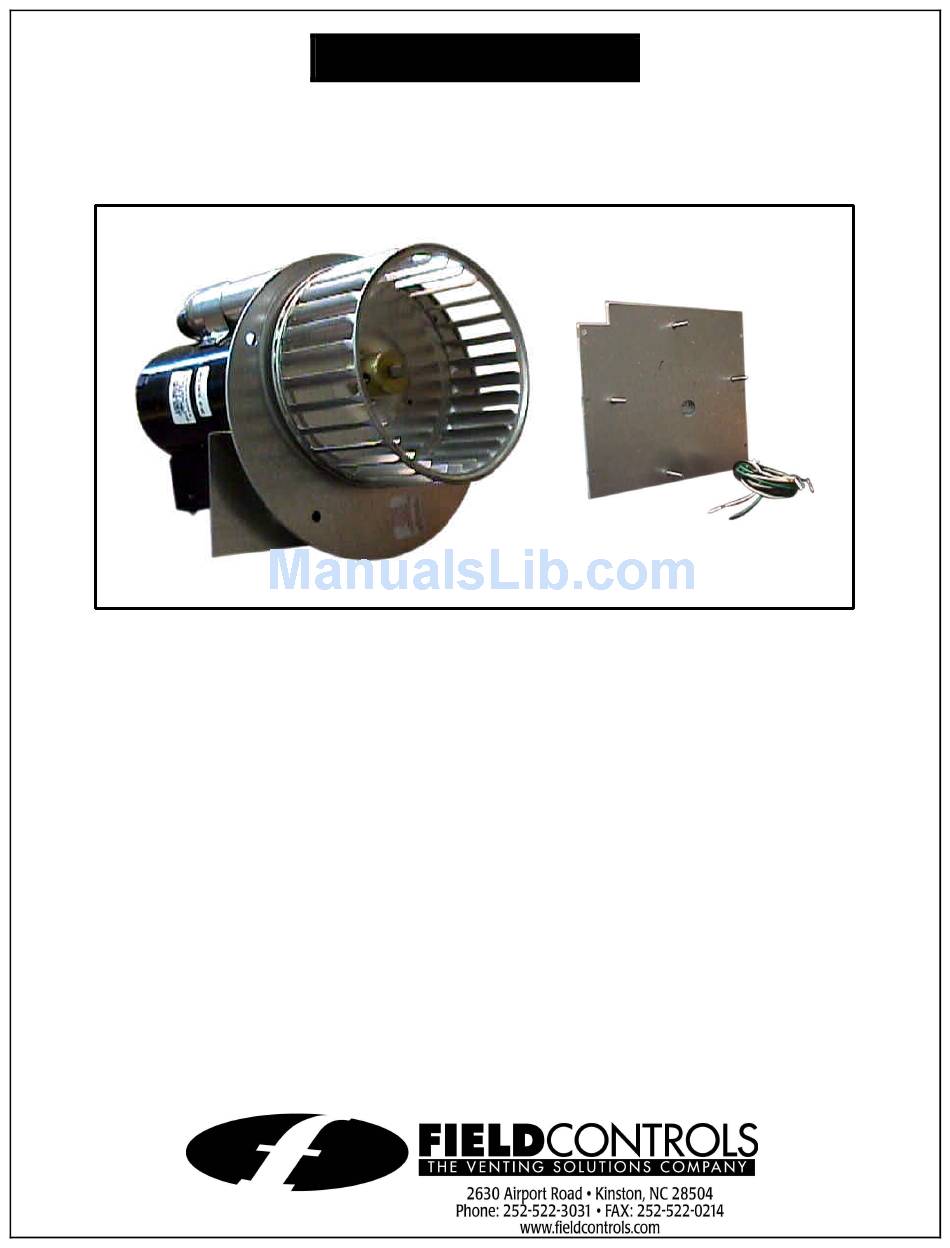

Replacement Motor and Blower Wheel on Mounting Bracket

Adapter Plate (for SWG Models)

Mounting Fasteners

Blower Wheel Depth Gage

1/8" Hex wrench

Tube of high temperature silicone sealant

Instruction Sheet

Table of Contents

Need help?

Do you have a question about the 46252300 and is the answer not in the manual?

Page 1 REPAIR MOTOR KIT Model: SWG-4HD, SWGII-4HD, SWG-5 SWGII-5, SWG-6, SWGII-6 BEFORE WORKING ON POWER VENTER, SHUT OFF ELECTRICAL POWER TO CONTROL BOX This kit includes a replacement motor assembly for the SWG and SWGII series sidewall power venter models listed above. TEMS INCLUDED Replacement Motor and Blower Wheel on Mounting Bracket Adapter Plate (for SWG Models)
Page 2 IDENTIFY WHICH MODEL POWER VENTER YOU HAVE CAUTION: Avoid applying excess pressure on the blower wheel when handling. This will cause an imbalance of the blower wheel which will result in excessive vibration and premature motor failure. 1. Remove motor cover. (See Figure 1) 2.
Page 3 SECTION I (Models SWG-4HD, SWG-5, SWG-6) EMOVAL 1. Remove the clamps from the conduit and motor and disconnect the motor lead wires from the Control Kit. (See Figure 3) Attach a "pull" or "fish" wire to the motor lead wires on the Control Kit side to use to pull the leads from the new repair kit motor through the conduit during re-assembly.
Page 4 Secure the cover on the electrical box. 4. Seal around the edge of the motor mount bracket with the provided high temperature silicone sealant. Install the motor cover with the side louvers pointing downward as shown in Figure 1. Page 4 P/N 46252300 Rev E 01/01...
