PV POWER VENTERS

INDOOR MOUNTED POWER VENTERS FOR OIL & GAS
ACCESSORIES
SWH Vent Hoods
Designed for standard vent pipe and Class B type double-wall (B-Vent)
connection. Provides proper clearance between flue gas stream and
wall combustibles. Available in 3" through 8" sizes.
MG-1 Series Draft Control
Required for 80+ draft induced system applications. Available in 4"
through 9" sizes.
CK-20FV Water Heater Control
This kit allows you to co-vent a residential water heater with a furnace
or boiler. Provides all system control components required to utilize the
Field Power Venter with natural gas or LP gas millivolt water heater,
including safety interlock controls.

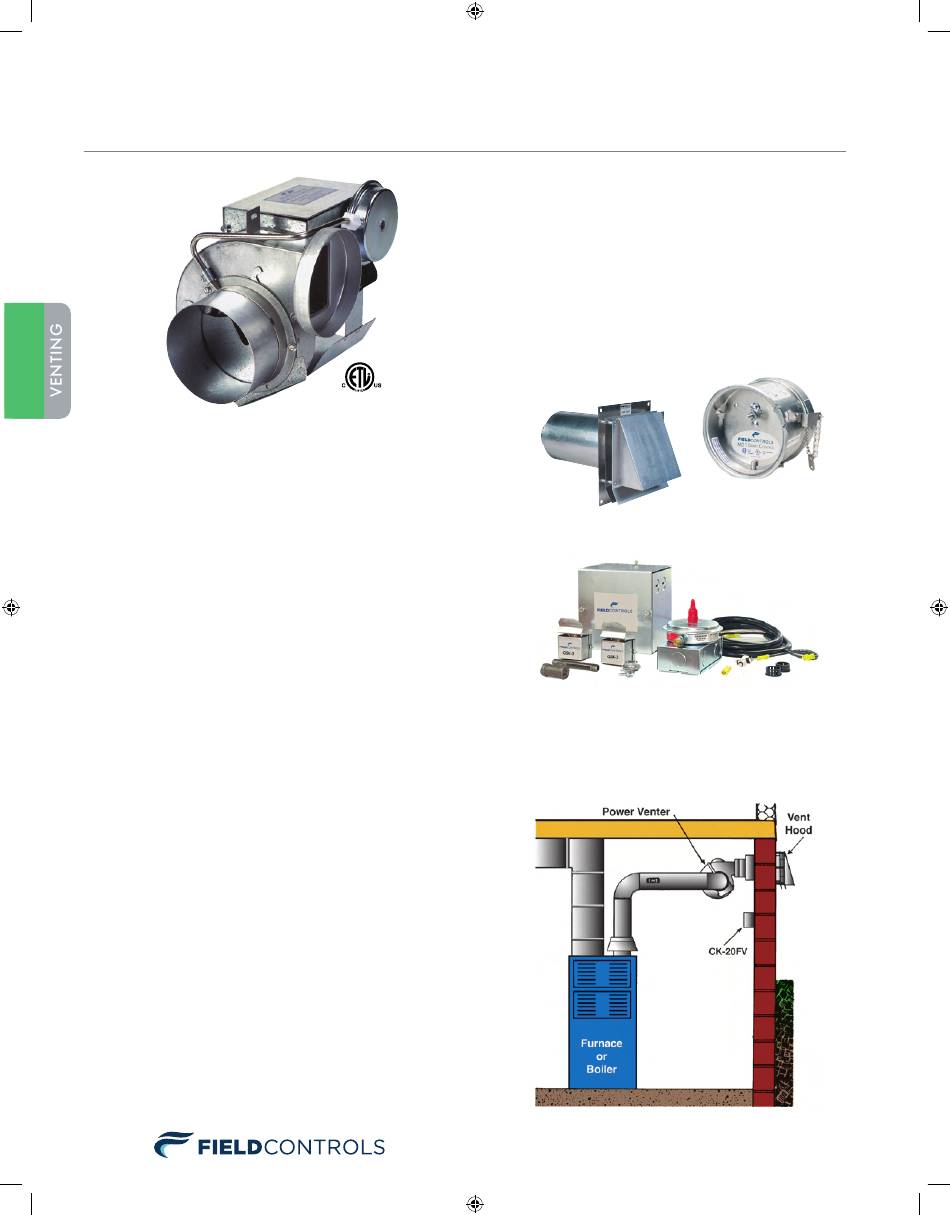

HOW PV SERIES VENTERS WORK
1. Thermostat or aquastat calls for heat and starts the
Power Venter.
2. The Pressure Switch senses sufficient air flow and allows
burner(s) to start.
3. The Power Venter draws combustion air through the system
and forces gases outside through an external Vent Hood.
4. Draft Hood or Barometric Draft Control between the
appliance(s) and the Power Venter maintains
consistent air flow.
5. After the thermostat is satisfied, the burner shuts down and
the Post Purge Control clears the venting system of
combustion gases.
6. The Power Venter shuts down.
12
The indoor mounted PVG and PVO Power Venters
provide an economical power venting system for gas
and oil appliances. All controls are built into these units.
A Vent Hood is required to terminate the vent system.
SWH
MADE WITH 550ºF ALUMINIZED STEEL
MG-1
CK-20FV
