HOW IT WORKS

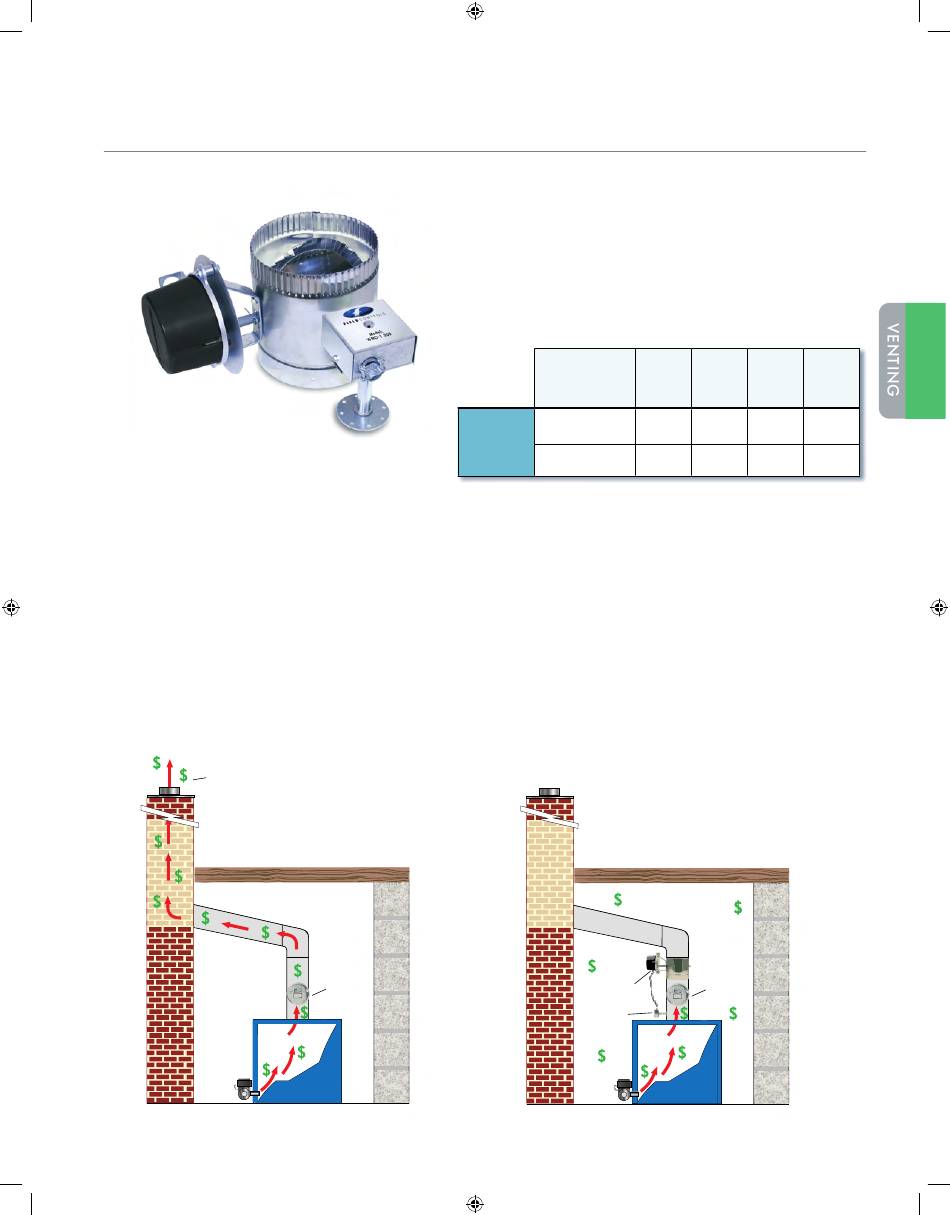

1. When the thermostat calls for heat, the vent damper begins to open.
2. Within five seconds, the damper opens completely.
3. Two safety switches prove the damper is completely open before allowing the burner to fire.
4. When the oil appliance thermostat is satisfied, the vent damper remains open for approximately three minutes before closing.
This allows the remaining products of combustion to safely vent up the chimney.
5. The vent damper remains closed until the next call for heat, preventing drafts, improving comfort, and reducing heat loss.
Stop Without
the
waste
Field OVD
Oil Appliance
Technical Service: 800.742.8368 •
PUT A DAMPER ON OIL HEATING BILLS
Field's Oil Vent Damper increases AFUE by up to 2%, which translates
to a savings of approximately 5% to 10% per year on heating costs. See
the chart for a quick reference of potential savings over five years on a
typical mid-efficiency system.
POTENTIAL
SAVINGS
(OVER 5 YEARS)
ASSUMES AN AVERAGE FUEL COST OF $3.50 PER GALLON.
RC Draft
Control
fieldcontrols.com
OIL VENT DAMPER
ANNUAL
FUEL USAGE 900
(GALLONS)
5%
$787
(5 FT. CHIMNEY)
10%
$1575
(TALLER CHIMNEY)
With
Field OVD
OVD
Oil Vent
Damper
Blocked Vent
Safety Switch
Oil Appliance
1200 1500 1800
$1050 $1312 $1575
$2100 $2625 $3150
RC Draft
Control
